Typical modular house.

The useful area of the house is 110 m2 with a veranda of 24 m2 will accommodate not only a big family, but, if necessary, the same number of guests. 3 bedrooms, living room, kitchen, bathroom, vestibule. Veranda – a place for summer rest.

DUBLHAUS 110

BUILDING AREA:157.36 m²
USEFUL AREA:103.20 m²
DIMENSIONS (HxWxL):3.06×7.86×20.02 m
CEILING HEIGHT:2.18-3.12 m
ROOMS:
4
VERANDA AREA:23.70 m²
PERIOD OF DELIVERY:180-360 tage

What is included in the basic equipment of a standard house?

Roof: 379 mm = 6,79 m² K/W, U = 0,147
Walls: 309 mm = 5,25m² K/W, U = 0,190
Floor: 294 mm = 5,08 m² K/W, U = 0,197
Windows: wooden profile 78 mm, U = 1,00

  1. Roofing covering: metal profiled sheets (panels for roofs), color – graphite gray RAL 7024, matte – 20mm.
  2. Roof wooden crate: antiseptic planed board, pine – 20×145 mm.
  3. Counter-bars: antiseptic planed bar, pine – 45×45 mm.
  4. Condensation protection: diffusion membrane for roofing 180 g/m2 – 1 mm.
  5. Reinforced frame: antiseptic planed bar, pine –45×250 mm.
  6. Thermal insulation: stone wool 30-35 kg/m3 – 250 mm.
  7. Internal insulation of a frame: vapour barrier film – 1 mm.
  8. Internal insulation of the frame: Gypsum particle board – 10 mm.
  9. Counter-bars: antiseptic planed bar, pine – 45×95 mm.
  10. Insulation: stone wool 30-35 kg/m3 – 100 mm.
  11. Dust barrier: craft paper 80 g/m2 – 1mm.
  12. Internal surfaces (ceilings): natural wooden – pine cladding, coating – SIKKENS, color – white, – 20×145 mm.
  13.

  1. Side facade along the roof slope: metal profiled sheets, color – graphite gray RAL 7024, matte – 20 mm. Inserts under the windows made of natural wood – pine cladding, gray graphite RAL 7024 – 20×145 mm.
    Back facade: natural wood – vertical pine cladding with a vertical pine bar, coating – SIKKENS, color – gray graphite / straw-4 – 20×145 mm + 45×45 mm.
  2. Wooden crate: antiseptic planed board, pine – 20×96-145 mm.
  3. Counter- bars: antiseptic planed bar, pine – 25×45 mm.
  4. External insulation of a frame: fiberboard Isoplaat – 25 mm.
  5. Reinforced wooden frame: antiseptic planed bar, pine – 45×195 mm.
  6. Thermal insulation: stone wool 45-50 kg/m3 – 200 mm.
  7. Internal insulation of a frame: vapour barrier film – 1 mm.
  8. Structural rigidity: OSB-3 – 12 mm.
  9. Internal insulation of the frame: Gypsum particle board – 10 mm.
  10. Counter-bars: antiseptic planed bar 45×45 mm, pine – 45 mm.
  11. Thermal insulation: stone wool 45-50 kg/m3 – 50 mm.
  12. Internal insulation of a frame: vapour barrier film– 1 mm.
  13. Internal finishing:
    – internal surfaces of the side walls located along a slope of a roof are finished with wooden pine cladding, coating – SIKKENS, color – white, – 20×145 mm;
    – internal surfaces of back walls – planken, pine, SIKKENS coating, color – gray graphite, – 20×145 mm;
    In the bathroom:
    – Kerama Marazzi mosaic, Temari collection 29.8×29.8 mm, color – white (20003), on a 10 mm cement particleboard with waterproofing;
    – part of the walls in the bathroom are finished with pine cladding, coating – SIKKENS, color – white, – 20×145 mm.
  14.

  1. Finishing:
    – internal surfaces of the walls located along a slope of a roof are finished with wooden pine cladding, coating – SIKKENS, color – white, – 20×145 mm;
    – internal surfaces of back walls – planken, pine, SIKKENS coating, color – gray graphite, – 20×145 mm. Internal insulation of the frame: Gypsum particle board – 10 mm.
  2. Reinforced frame: antiseptic planed bar, pine – 45×95/145-195 mm.
  3. Thermal insulation: rock wool 45-50 kg/m3 – 100/150/200 mm.
  4. Internal insulation of the frame: Gypsum fiberboard – 10 mm.
  5. Finishing:
    – internal surfaces of the side walls located along a slope of a roof are finished with wooden pine cladding, coating – SIKKENS, color – white, – 20×145 mm;
    – internal surfaces of back walls – planken, pine, SIKKENS coating, color – gray graphite, – 20×145 mm;
    In the bathroom:
    Kerama Marazzi mosaic, Temari collection 29.8×29.8 mm, color – white (20003), on a 10 mm cement particleboard with waterproofing;
    – part of the walls in the bathroom are finished with pine cladding, coating – SIKKENS, color – white, – 20×145 mm.

  1. In residential areas on the floor :
    laminate EGGER (ECO) (33rd class of abrasion, HOME CLASSIC collection, oak, color – to choose) – 8 mm ;
    Underlayer for laminate – 4 mm.
    You can optionally choose:
    Karelia Midnight parquet board with natural oak coating – 12 mm;
    underlayer for parquet board – 4 mm.
    In the bathroom:
    Kerama Marazzi mosaic, Temari collection 29.8×29.8 mm, color – matt black (20071), on a 10 mm cement  particleboard with waterproofing;
    – waterproof layer;
    – base – cement particleboard – 10 mm.
    – base – moisture resistant plywood – 21 mm.
  2. Insulation of the frame: vapor barrier – 1 mm.
  3. Reinforced frame: antiseptic planed bar 45×250 mm, pine – 250 mm.
  4. Thermal insulation: Ecowool 30-35 kg/m3 – 250 mm.
  5. External insulation of the frame: cement particleboard – 10 mm.
  6. Rough finish: planed technically dried board, larch, with bioprotective antiseptic coating – 45×145 mm. During installation, galvanized reinforced fasteners are used. Coating – SIKKENS, color – black.
  7. Along the contour of the ventilated facade, metal protection from mice.

Roof: 452 mm = 8,08 м² K/W, U = 0,124
Walls: 309 mm = 5,25 м² K/W, U = 0,190
Floor: 294 mm = 5,08 м² K/W, U = 0,197
Windows: 106 mm U = 1,00

  1. Roofing covering: metal profiled sheets (panels for roofs), color – graphite gray RAL 7024, matte – 20mm.
  2. Roof wooden crate: antiseptic planed board, pine – 20×145 mm.
  3. Counter-bars: antiseptic planed bar, pine – 25×45 mm.
  4. Condensation protection: diffusion membrane for roofing 150 g/m2 – 1 mm.
  5. Counter-bars: antiseptic planed bar, pine – 45×45 mm.
  6. External insulation of the frame: fiberboard Isoplaat – 25 mm.
  7. Reinforced wooden frame: antiseptic planed bar, pine – 45×300 mm.
  8. Thermal insulation: stone wool 30-35 kg/m3 – 300 mm.
  9. Internal insulation of a frame: vapour barrier film – 1 mm.
  10. Internal insulation of the frame: Gypsum particle board – 10 mm.
  11. Counter-bars: antiseptic planed bar 45×95 mm, pine.
  12. Insulation: stone wool 30-35 kg/m3 – 100 mm.
  13. Dust barrier: craft paper 80 g/m2 – 1mm.
  14. Internal surfaces (ceilings): natural wooden – pine cladding, coating – SIKKENS, color – white, – 20×145 mm.

  1. Roofing covering: metal profiled sheets (panels for roofs), color – graphite gray RAL 7024, matte – 20mm.
  2. Roof wooden crate: antiseptic planed board, pine – 20×145 mm.
  3. Counter-bars: antiseptic planed bar, pine – 25×45 mm.
  4. Condensation protection: diffusion membrane for roofing 150 g/m2 – 1 mm.
  5. Counter-bars: antiseptic planed bar, pine – 45×45 mm.
  6. External insulation of the frame: fiberboard Isoplaat – 25 mm.
  7. Reinforced wooden frame: antiseptic planed bar, pine – 45×300 mm.
  8. Thermal insulation: stone wool 30-35 kg/m3 – 300 mm.
  9. Internal insulation of a frame: vapour barrier film – 1 mm.
  10. Internal insulation of the frame: Gypsum particle board – 10 mm.
  11. Counter-bars: antiseptic planed bar 45×95 mm, pine.
  12. Insulation: stone wool 30-35 kg/m3 – 100 mm.
  13. Dust barrier: craft paper 80 g/m2 – 1mm.
  14. Internal surfaces (ceilings): natural wooden – pine cladding, coating – SIKKENS, color – white, – 20×145 mm.

  1. Finishing:
    – internal surfaces of the walls located along a slope of a roof are finished with wooden pine cladding, coating – SIKKENS, color – white, – 20×145 mm;
    – internal surfaces of back walls – planken, pine, SIKKENS coating, color – gray graphite, – 20×145 mm. Internal insulation of the frame: Gypsum particle board – 10 mm.
  2. Reinforced frame: antiseptic planed bar, pine – 45×95/145-195 mm.
  3. Thermal insulation: rock wool 45-50 kg/m3 – 100/150/200 mm.
  4. Internal insulation of the frame: Gypsum fiberboard – 10 mm.
  5. Finishing:
    – internal surfaces of the side walls located along a slope of a roof are finished with wooden pine cladding, coating – SIKKENS, color – white, – 20×145 mm;
    – internal surfaces of back walls – planken, pine, SIKKENS coating, color – gray graphite, – 20×145 mm;
    In the bathroom:
    Kerama Marazzi mosaic, Temari collection 29.8×29.8 mm, color – white (20003), on a 10 mm cement particleboard with waterproofing;
    – part of the walls in the bathroom are finished with pine cladding, coating – SIKKENS, color – white, – 20×145 mm.

  1. In residential areas on the floor :
    – laminate EGGER (ECO) (33rd class of abrasion, HOME CLASSIC collection, oak, color – to choose) – 8 mm ;
    Underlayer for laminate – 4 mm.
    You can optionally choose:
    – Karelia Midnight parquet board with natural oak coating – 12 mm;
    – underlayer for parquet board – 4 mm.
    In the bathroom:
    – Kerama Marazzi mosaic, Temari collection 29.8×29.8 mm, color – matt black (20071), on a 10 mm cement  particleboard with waterproofing;
    – matte gray graphite (20064); waterproof layer;
    – base – cement particleboard – 10 mm.
    – base – moisture resistant plywood – 21 mm.
  2. Insulation of the frame: vapor barrier – 1 mm.
  3. Reinforced frame: antiseptic planed bar 45×250 mm, pine – 250 mm.
  4. Thermal insulation: Ecowool 30-35 kg/m3 – 250 mm.
  5. External insulation of the frame: cement particleboard – 10 mm.
  6. Rough finish: planed technically dried board, larch, with bioprotective antiseptic coating – 45×145 mm. During installation, galvanized reinforced fasteners are used. Coating – SIKKENS, color – black.
  7. Along the contour of the ventilated facade, metal protection from mice.
  • Windows and entrance doors: wooden frames – 90/106 mm with double seal circuit. Triple-glass windows with low-e glass 4×12×4×12×6i. Factory painting – SIKKENS, color – gray graphite. Roto NT accessories. On the doors – reinforced hinges, mortise lock.
  • Panoramic window: reinforced triple-glass with low-e glass: triplex 4×14×4×14×6i tempered glass.

Electrical wiring is hidden (in the frame). The cable laying in the walls is made in metal corrugation with PVC insulation.
The wiring is made with a cable FRLS:
– lighting cable Fil Cu 3×1.5 mm;
– sockets cable Fil Cu 3×2.5 mm;
– electrical heating cable Fil Cu 3×4 mm;
– hob and oven cable Fil Cu 5×4 mm.
Socket groups are double-positioned, ceramic based.
Input circuit breaker – three-pole circuit-breaker 25A, category B. Lighting – circuit breakers 10A, household sockets –circuit breakers 16A, on the kitchen stove, sockets in wet areas – differential circuit breakers.

  • Sewerage: PVC pipes 50/110 mm. Connection with external networks.
  • Water supply: seamless polypropylene pipe Ø20 mm, combined with a flexible attaching pipe (protection against leaks). Connection with external networks.
  • Heated floor in the bathroom: heating mats with a thermostat Warmehaus.
  • Ventilation: forced in the bathroom and natural in the kitchen. Ventilation duct 100 mm. Fan riser on the roof.
  • Sink tap: Grohe, chrome.
  • Wash basin in the bathroom: Cersanit/ Villeroy&Boch Avento 60×47 furniture set with a drawer
  • Toilet bowl: Cersanit Carina/Villeroy&Bosh O.novo.
  • Shower tap: Grohe, chrome, with Grohe shower set.
  • Shower room:
    – bathroom 700×1700 mm with a front panel;
    or
    – shower area glazing: 10 mm thick tempered glass, 1900×850 mm, transparent, colorless, in a set with metal profile for fixing to the floor and to the wall.
  • Storage water heater: Electrolux EWH 100 Royal Flash Silver.

Kitchen arrangement (for laying communications): outputs of water supply and sewerage; output for the sink; output electric cable for connecting the kitchen hob, refrigerator, kitchen hood.

  • delivery from the seller’s warehouse to the building site
    (calculated individually);
  • installation on the building site;
  • crane rental 25 t for installation works;
  • installation of the foundation on the site.

    Additional production is possible:
    porch, stairs, terraces, veranda.

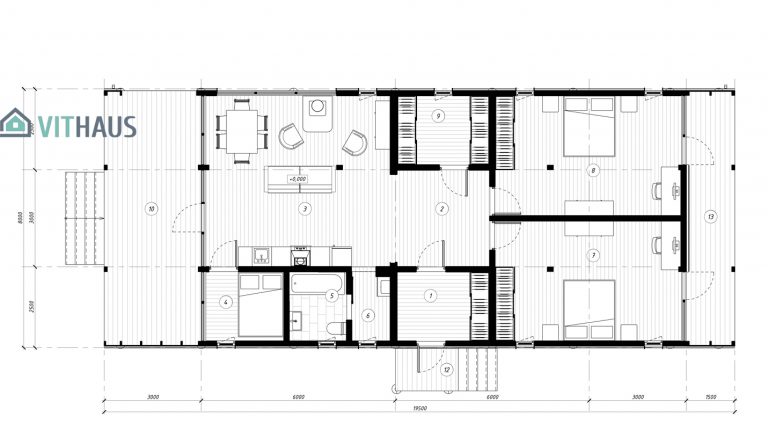

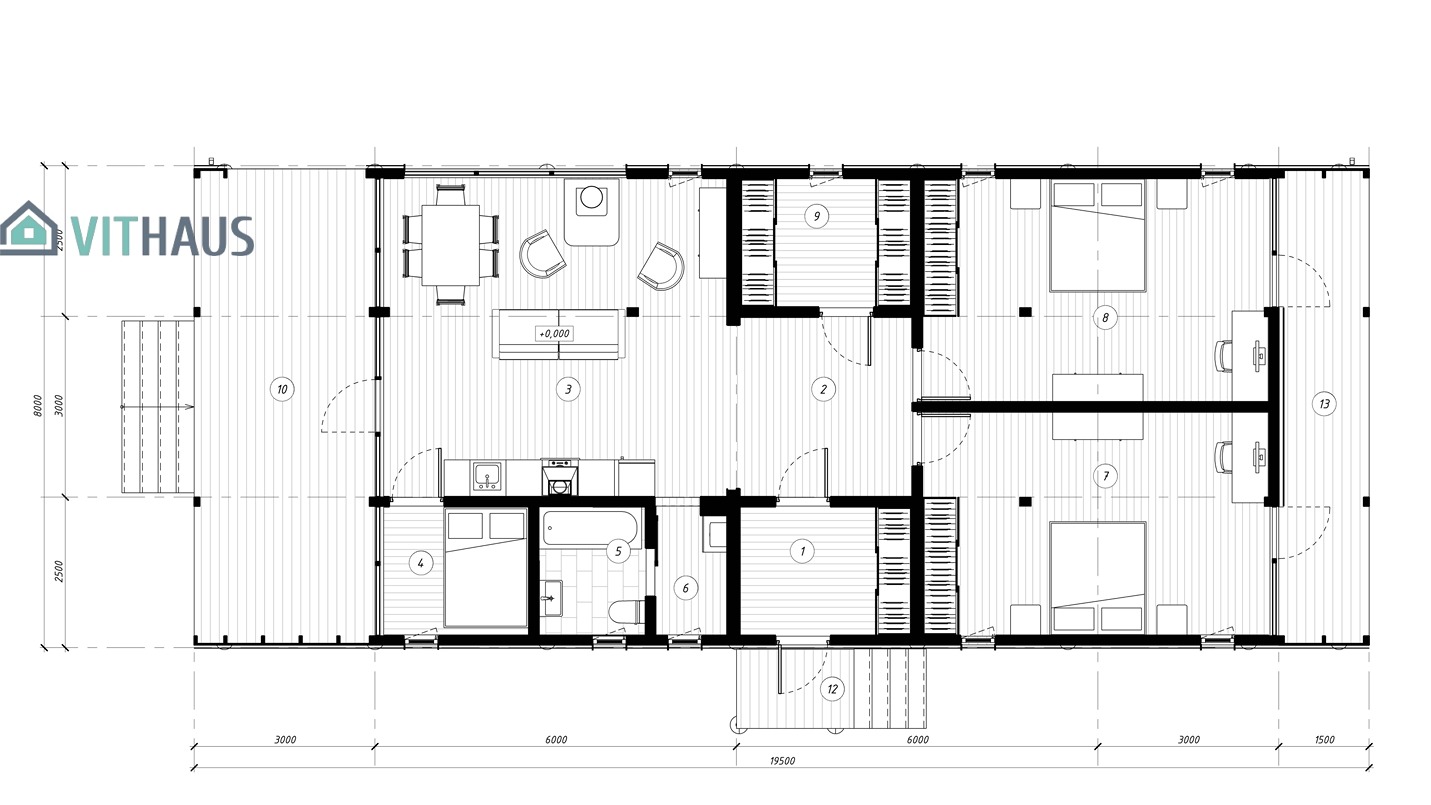

PLAN:

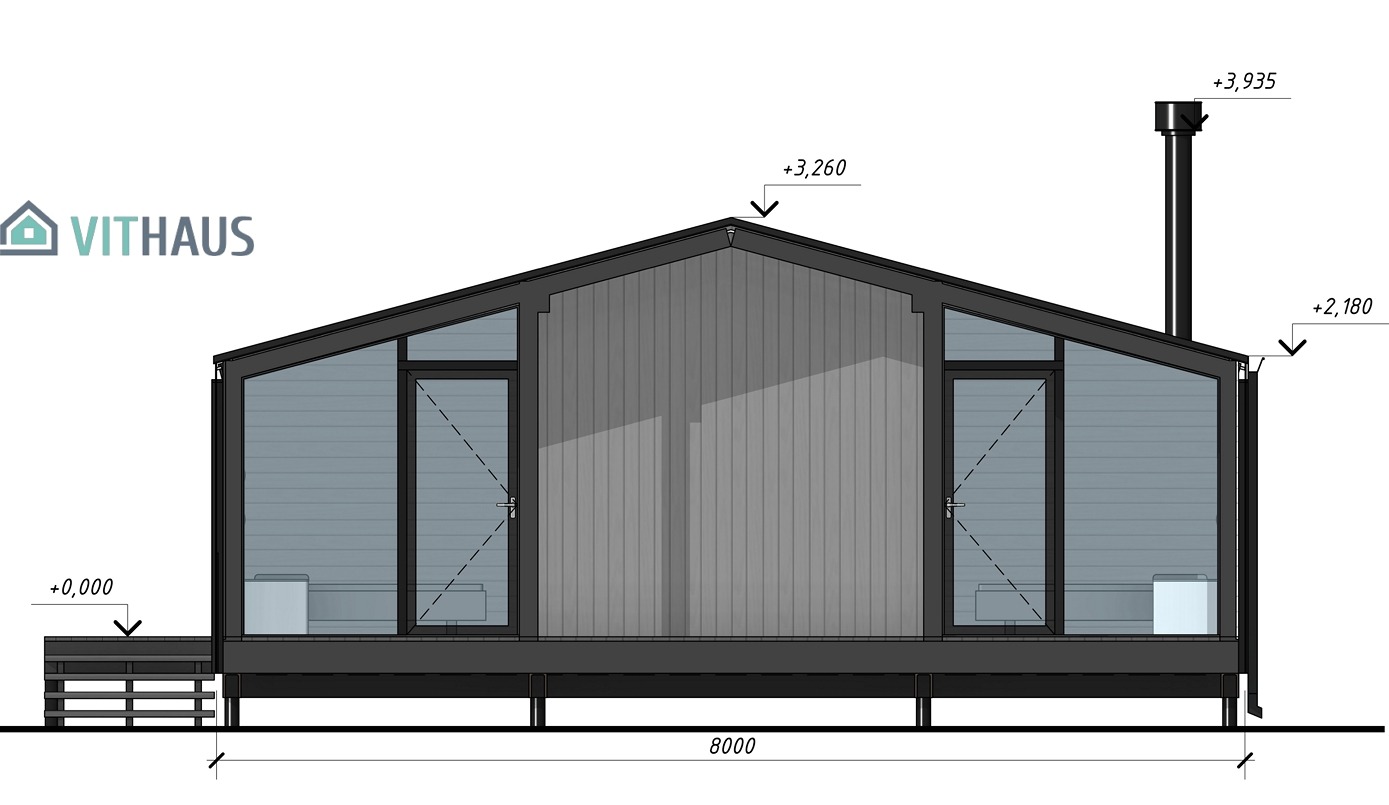

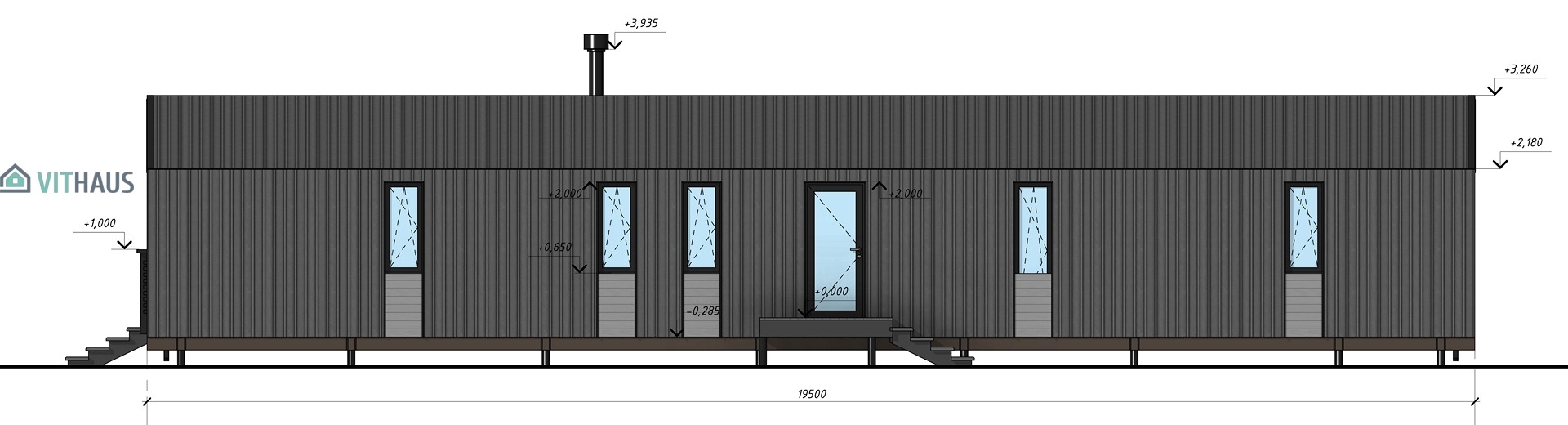

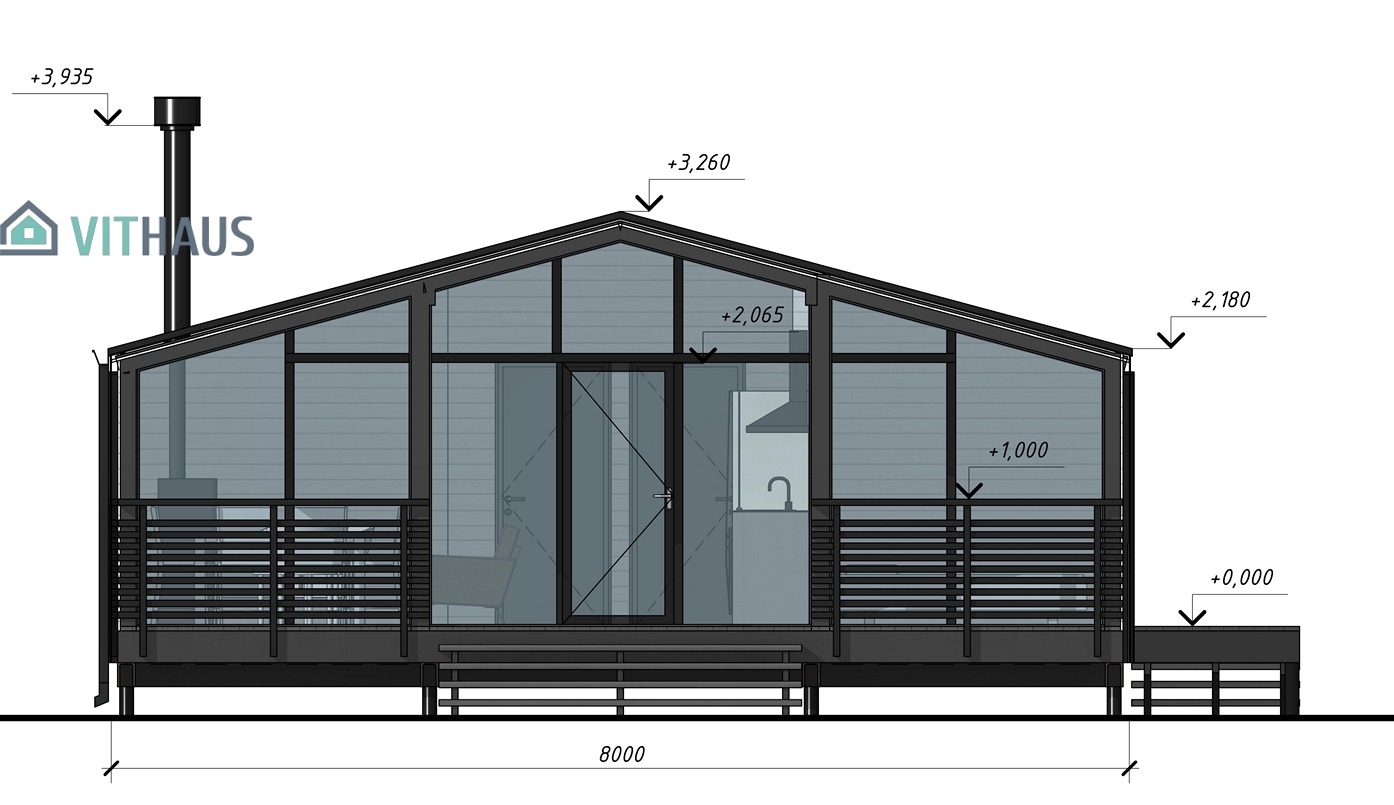

FACADE:
