Country house with a veranda.

Dublhaus 43 is a three-module house with a bedroom, living room, kitchen, bathroom and veranda. The area of the house is small – only 43 m2, but for a small family it is enough to live comfortably and enjoy nature and fresh air.

DUBLHAUS 43

BUILDING AREA: 81.9 m²

USEFUL AREA: 56.7 m²

VERANDA AREA: 18.9m²

TERRACE: 6.3 m²

DIMENSIONS (HxWxL): 3.16×7.53×10.04 m

CEILING HEIGHT: 2.51 m

PERIOD OF DELIVERY: 120 days

*Cost excluding VAT

PRICE:

Technology 1: 53 112 €

Technology 2: 60 165 €

Download the catalog

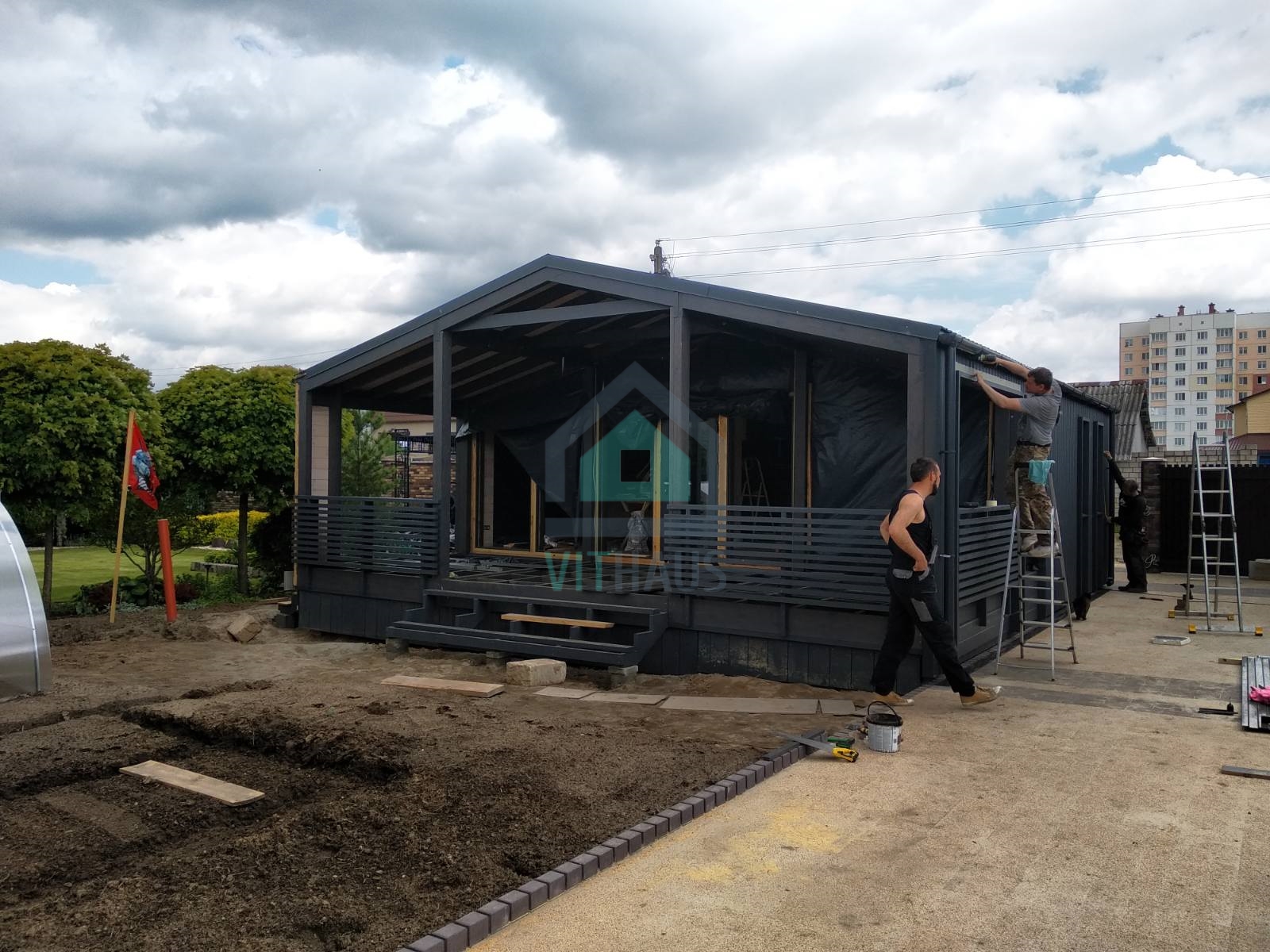

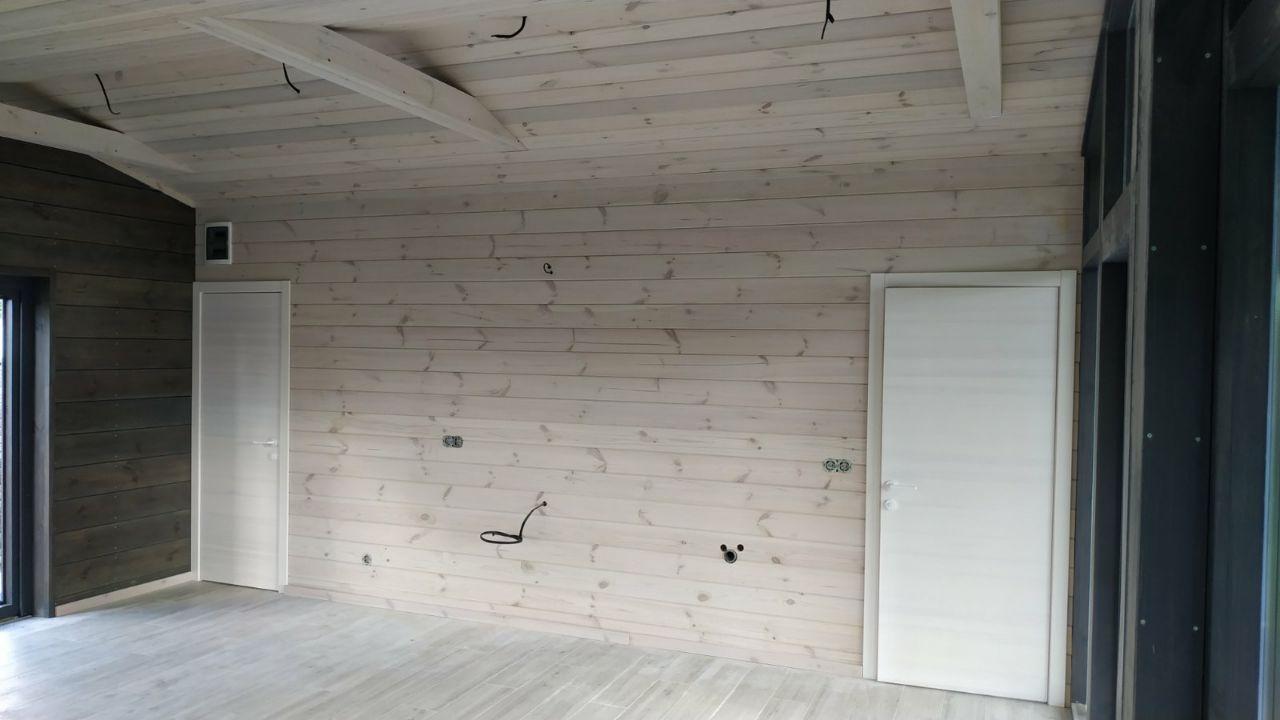

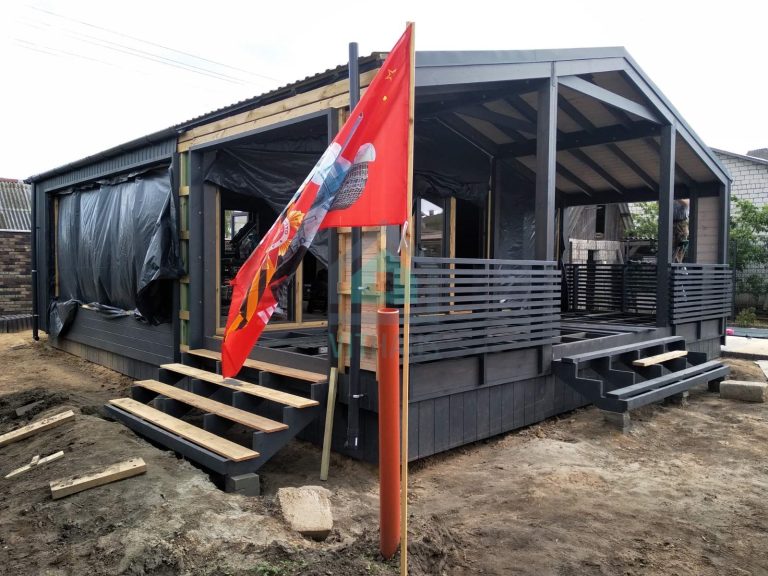

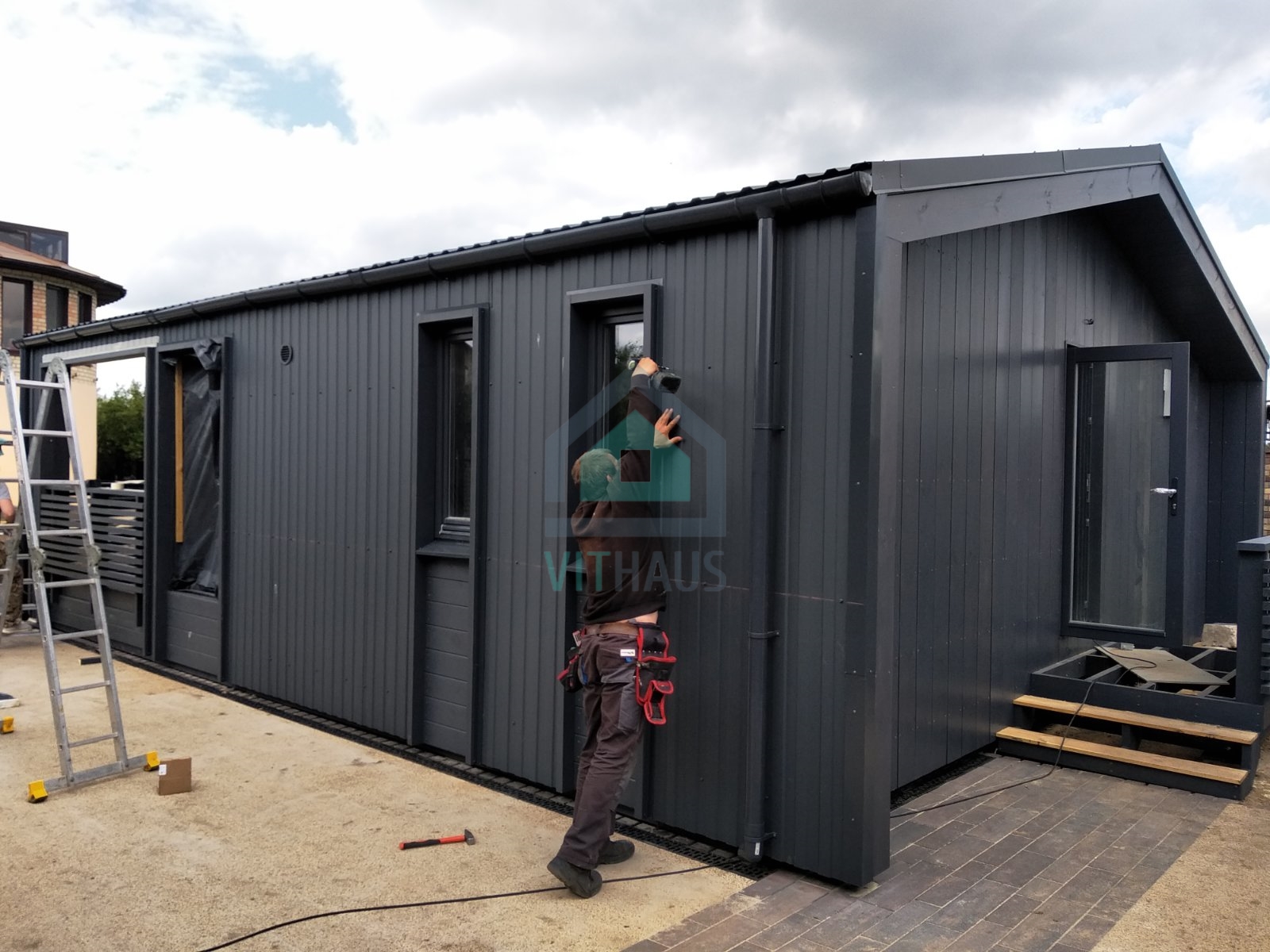

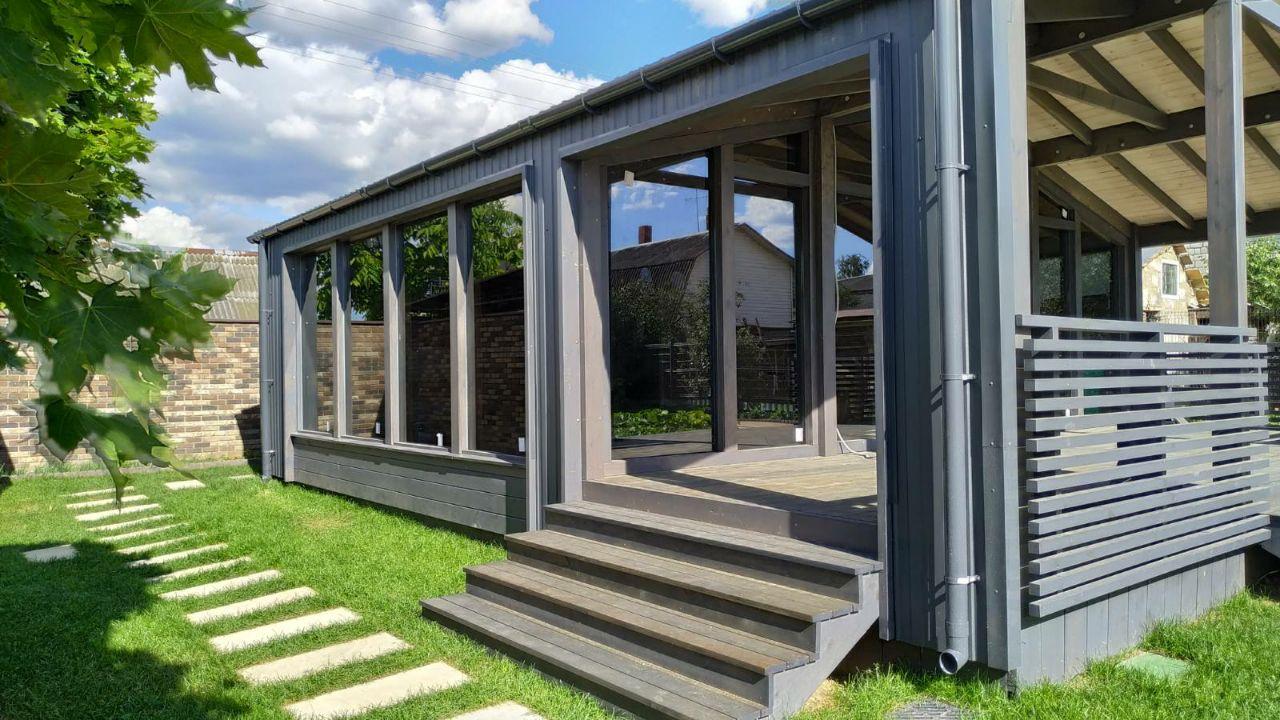

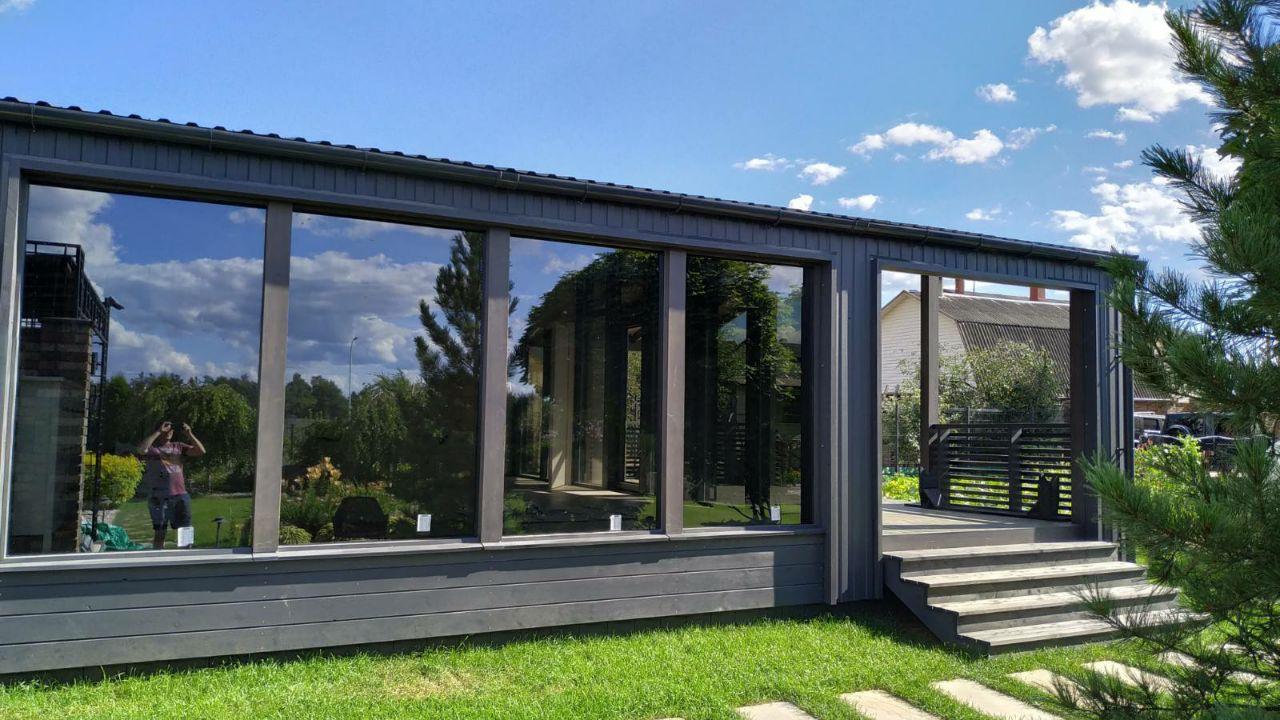

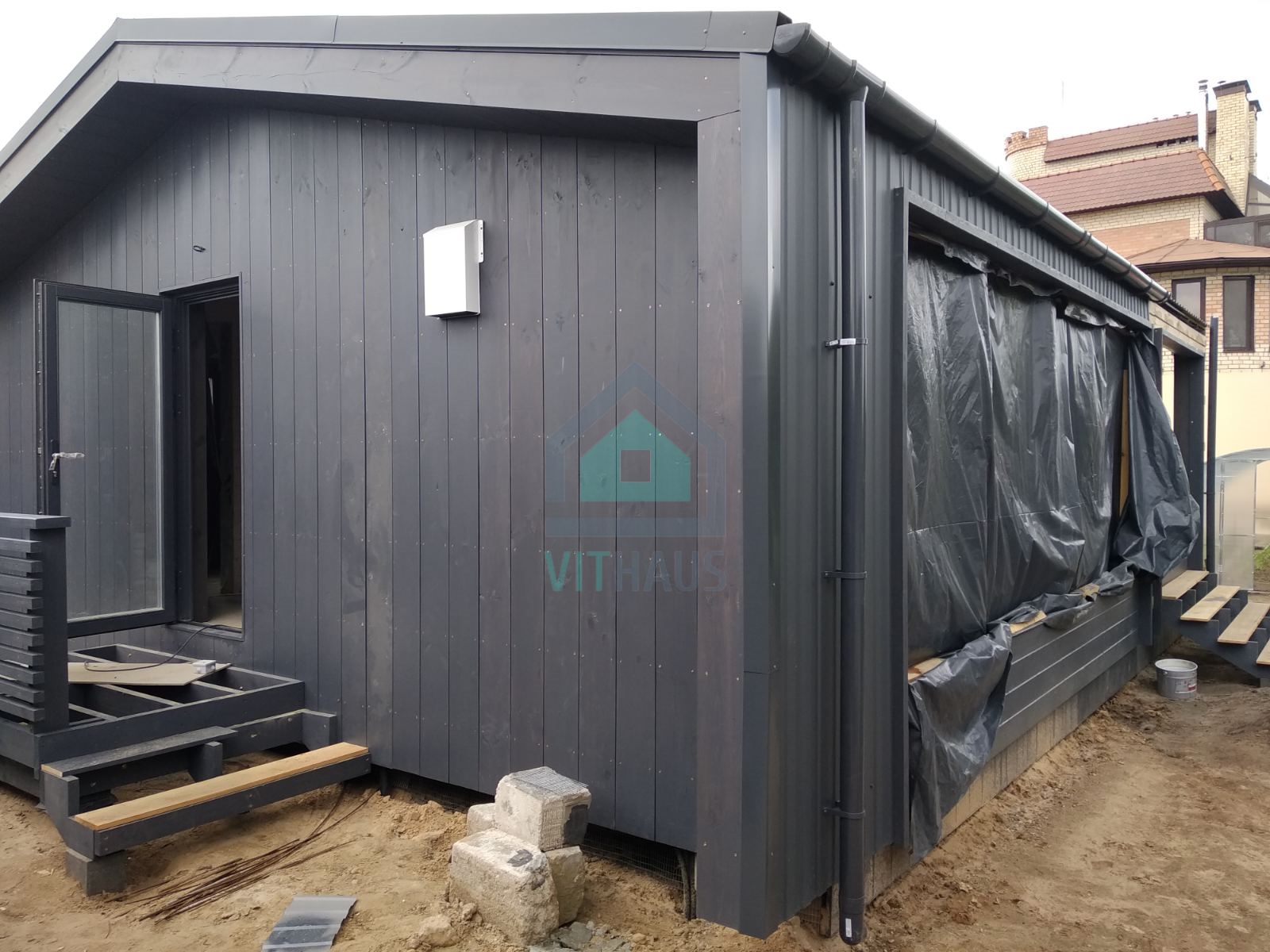

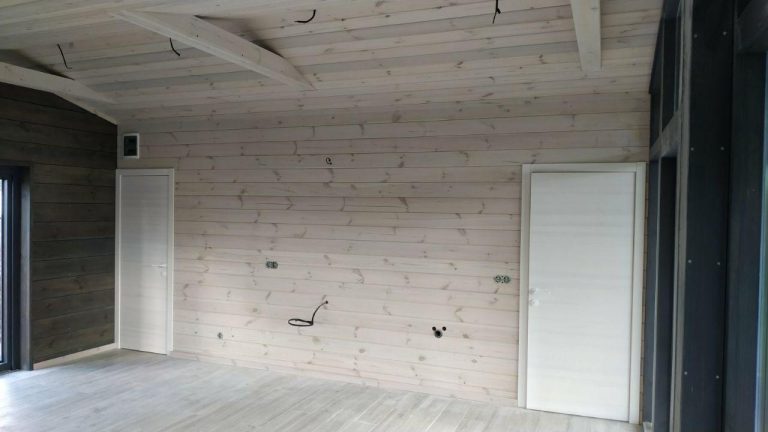

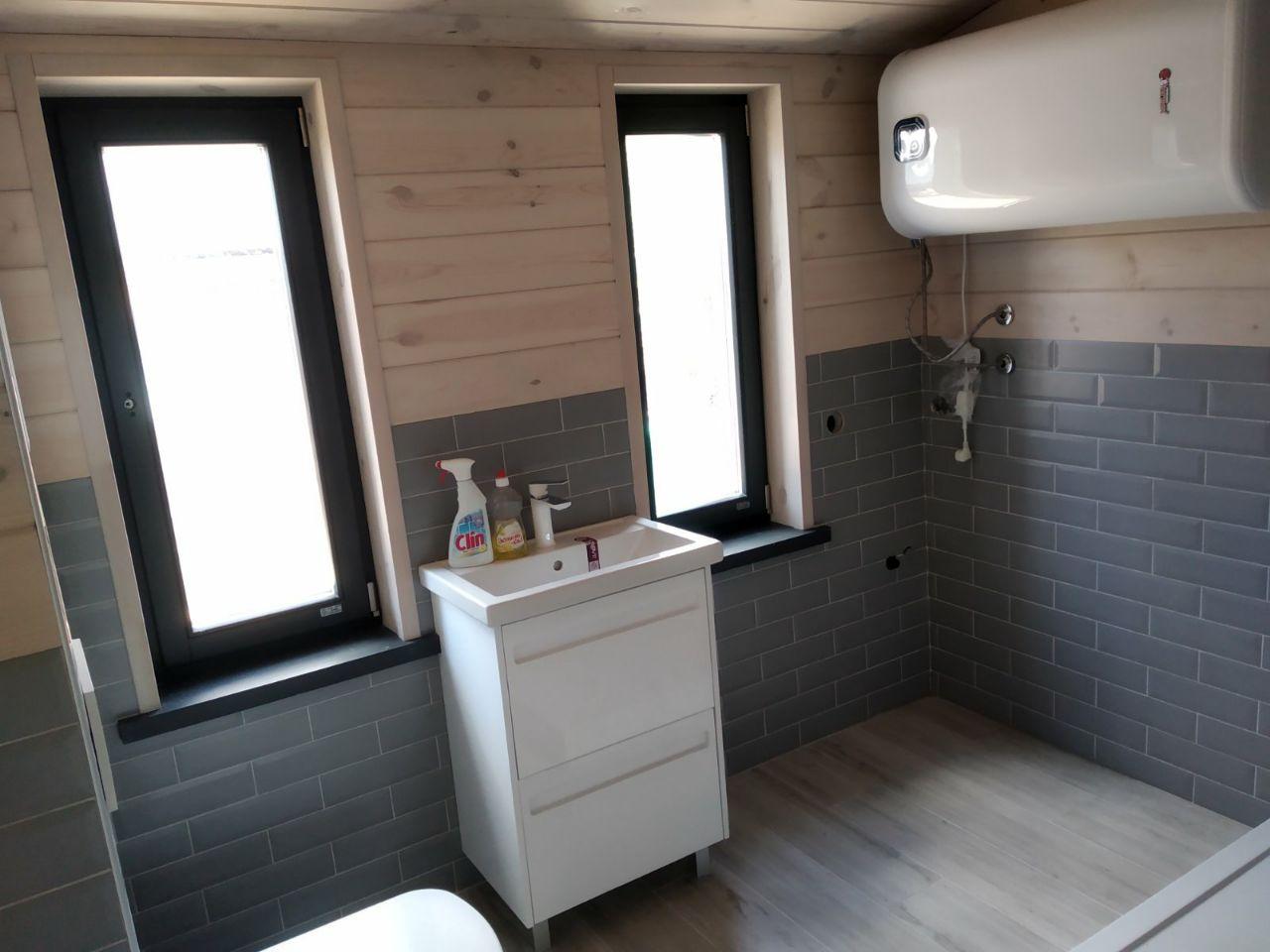

PHOTO:

The principle of having a machine build another machine lies at the heart of modern manufacturing.

VIDEO:

The principle of having a machine build another machine lies at the heart of modern manufacturing.

The complete set of a typical house.

ENERGYEFFICIENCY, Technology-1 (Option-1/Option-2):

Roof: 307/357 mm = 5,40/6,39 m² K/W, U = 0,1852/0,1565
Walls: 251/301 mm = 4,46/5,44 m² K/W, U = 0,2242/0,1838
Floor: 285 mm = 4,10 m² K/W, U = 0,2370
Windows: wooden profile 78 mm, U = 1,00

1. ROOF PANEL 315 mm:

1. Moisture-resistant plywood, 21 mm
2. Vapor barrier, 1 mm
3. Mineral wool insulation, 200 mm
4. Frame made of kiln-dried planed timber, 200 mm
5. Diffusion membrane, 1 mm
6. Cement-bonded particle board, 12 mm
7. Binding frame made of kiln-dried planed timber, 50 mm

2. EXTERIOR WALL 194 mm:

Panel height: 2610 mm / 3110 mm

Softwood fiberboard, 25 mm
Frame made of kiln-dried planed timber, 150 mm
Mineral wool insulation, 150 mm
Vapor barrier, 1 mm
Oriented strand board (OSB), 12 mm

3. LOAD-BEARING WALL 224 mm:

Panel height: 2610 mm / 3110 mm

1. Oriented strand board (OSB), 12 mm
2. Frame made of LVL timber, 300 mm

4. INTERIOR WALL 124 mm:

Panel height: 2610 mm / 3110 mm
1. Oriented strand board (OSB), 12 mm
2. Frame made of kiln-dried planed timber, 100 mm
3. Mineral wool insulation, 100 mm
4. Oriented strand board (OSB), 12 mm

5. INTER-FLOOR PANEL 235 mm:

1. Moisture-resistant plywood, 21 mm
2. Diffusion membrane, 1 mm
3. Mineral wool insulation, 200 mm
4.. Frame made of kiln-dried planed timber, 200 mm
5. Vapor barrier, 1 mm
6. Oriented strand board (OSB), 12 mm

6. FLOOR PANEL 285 mm:

1. Moisture-resistant plywood, 21 mm
2. Vapor barrier, 1 mm
3. Mineral wool insulation, 200 mm
4. Frame made of kiln-dried planed timber, 200 mm
5. Diffusion membrane, 1 mm
6. Cement-bonded particle board, 12 mm
7. Binding frame made of kiln-dried planed timber, 50 mm

ENERGYEFFICIENCY, Technology-2 (Option-1/Option-2):

Roof: 407/457 mm = 7.30/8.30 m2 K/W, U = 0.1370/0.1255
Walls: 301/351 mm = 5.40/6.39 m2 K/W, U = 0.1852/0.1565
Floor: 386 mm = 5.98 m2 K/W, U = 0.1672
Windows: profile 78 mm, U = 1.00

1. ROOF PANEL 415 mm:

1. Moisture-resistant plywood, 21 mm
2. Batten made of kiln-dried planed timber, 50 mm
3. Softwood fiberboard, 25 mm
4. Mineral wool insulation, 300 mm
5. Frame made of LVL timber, 300 mm
6. Vapor barrier, 1 mm
7. Oriented strand board (OSB), 18 mm

2. EXTERIOR WALL 244 mm:

Panel height: 2610 mm / 3110 mm

Softwood fiberboard, 25 mm
Frame made of kiln-dried planed timber, 200 mm
Mineral wool insulation, 200 mm
Vapor barrier, 1 mm
Oriented strand board (OSB), 12 mm

3. LOAD-BEARING WALL 224 mm:

Panel height: 2610 mm / 3110 mm

1. Oriented strand board (OSB), 12 mm
2. Frame made of LVL timber, 300 mm

4. INTERIOR WALL 124 mm:

Panel height: 2610 mm / 3110 mm
1. Oriented strand board (OSB), 12 mm
2. Frame made of kiln-dried planed timber, 100 mm
3. Mineral wool insulation, 100 mm
4. Oriented strand board (OSB), 12 mm

5. INTER-FLOOR PANEL 335 mm:

1. Moisture-resistant plywood, 21 mm
2. Diffusion membrane, 1 mm
3. Mineral wool insulation, 300 mm
4. Frame made of LVL timber, 300 mm
5. Vapor barrier, 1 mm
6. Oriented strand board (OSB), 12 mm

6. FLOOR PANEL 385 mm:

1. Moisture-resistant plywood, 21 mm
2. Vapor barrier, 1 mm
3. Frame made of LVL timber, 300 mm
4. Mineral wool insulation, 300 mm
5. Diffusion membrane, 1 mm
6. Cement-bonded particle board, 12 mm
7. Binding frame made of kiln-dried planed timber, 50 mm

7. WINDOWS AND ENTRANCE DOORS:

Technology – 1: PVC, double-glazed insulation, 44 mm.
Technology – 2: PVC, double-glazed insulation, 50 mm.
Double-glazed windows filled with Argon – 44 mm / 50 mm.
Insulating glass break formula: 4ix16Arx4x16Arx4i / 4ix20Arx4x18Arx4i.
Factory-laminated or painted, graphite gray RAL 7024.
Concealed hinges Siegenia Titin AF.
The doors have reinforced hinges and a mortise lock.
Stained glass: reinforced double-glazed windows filled with Argon, tempered glass – 44 mm.
The formula for double-glazed stained glass windows: 4ix16Arx4x16Arx4i / 4ix20Arx4x18Arx4i.

8. EXTERNAL FINISHING:

Roof;
Roof flashings;
Facade;
External window rows and edges;
Windowsills;
Drainage system;
Glass fence;
3-step staircase, width 2.5 m.
Work – house installation;
Work – exterior finishing.

ADDITIONAL EXPENSES:

installation of the foundation at the facility;
delivery from the seller’s warehouse to the facility;
logistics to the installation site and accommodation for installers;
rent a 25-ton crane for installation work.

OPTIONAL - ACCORDING TO AN INDIVIDUAL PROJECT:

Underfloor heating;
Internal engineering networks;
Interior finishing;
Interior doors;
Bathroom fixtures;
Kitchen;
Furniture.

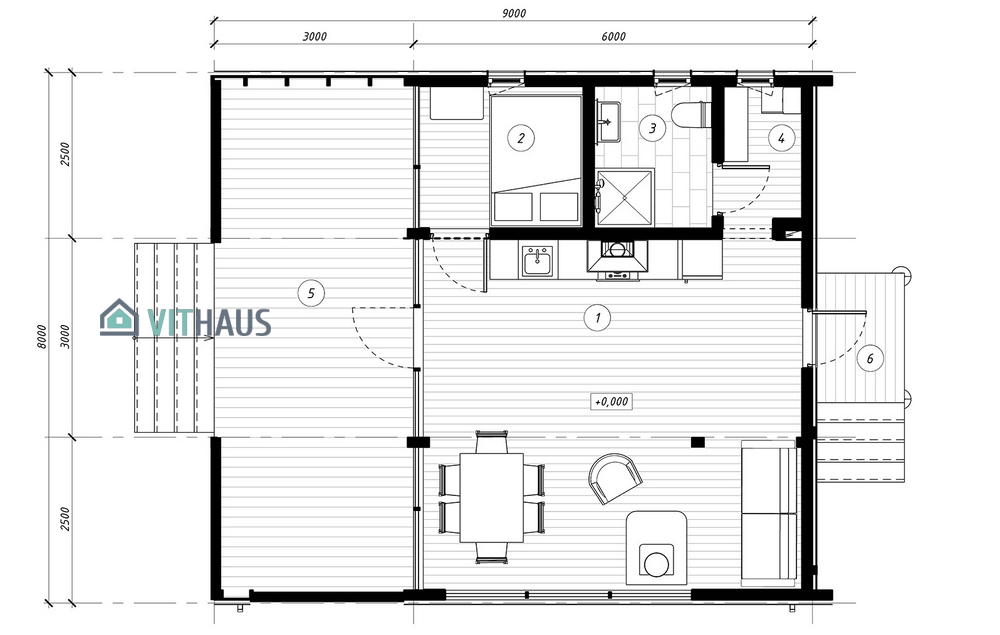

PLAN:

The principle of having a machine build another machine lies at the heart of modern manufacturing.

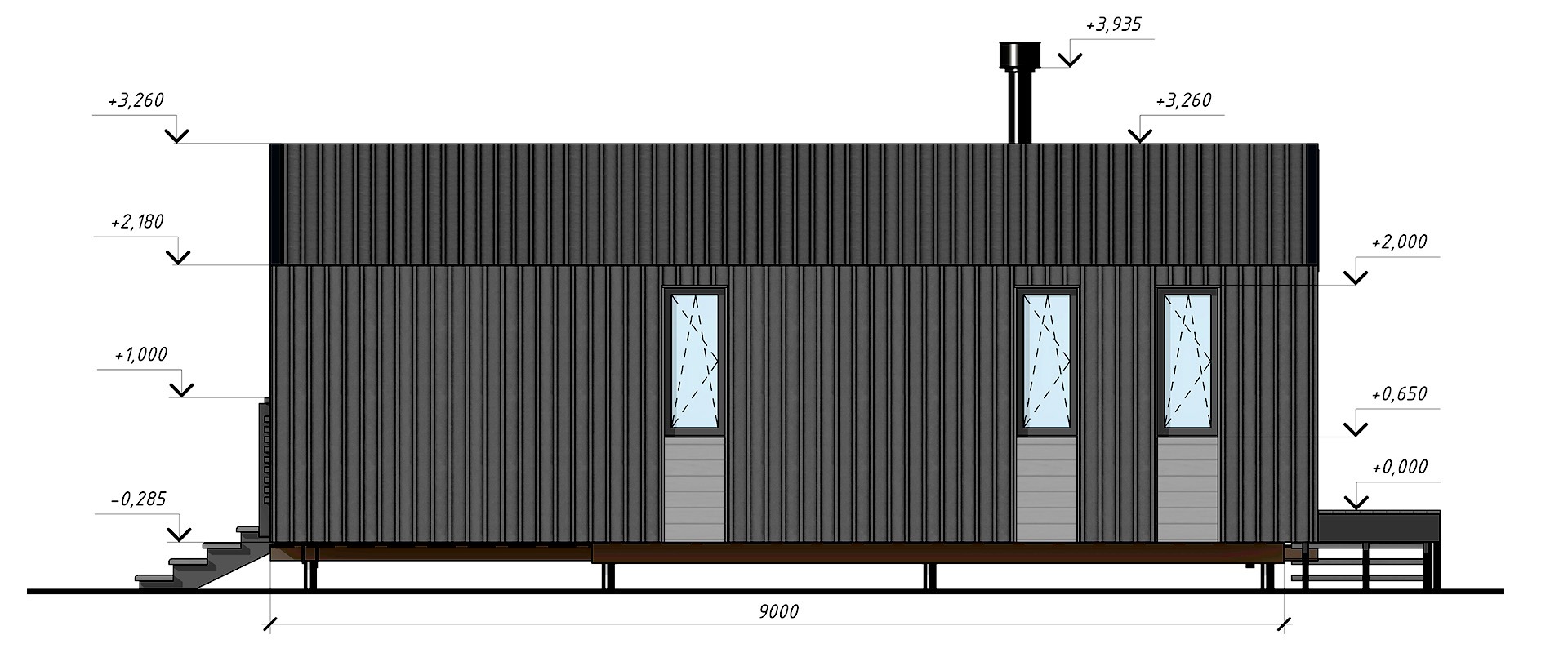

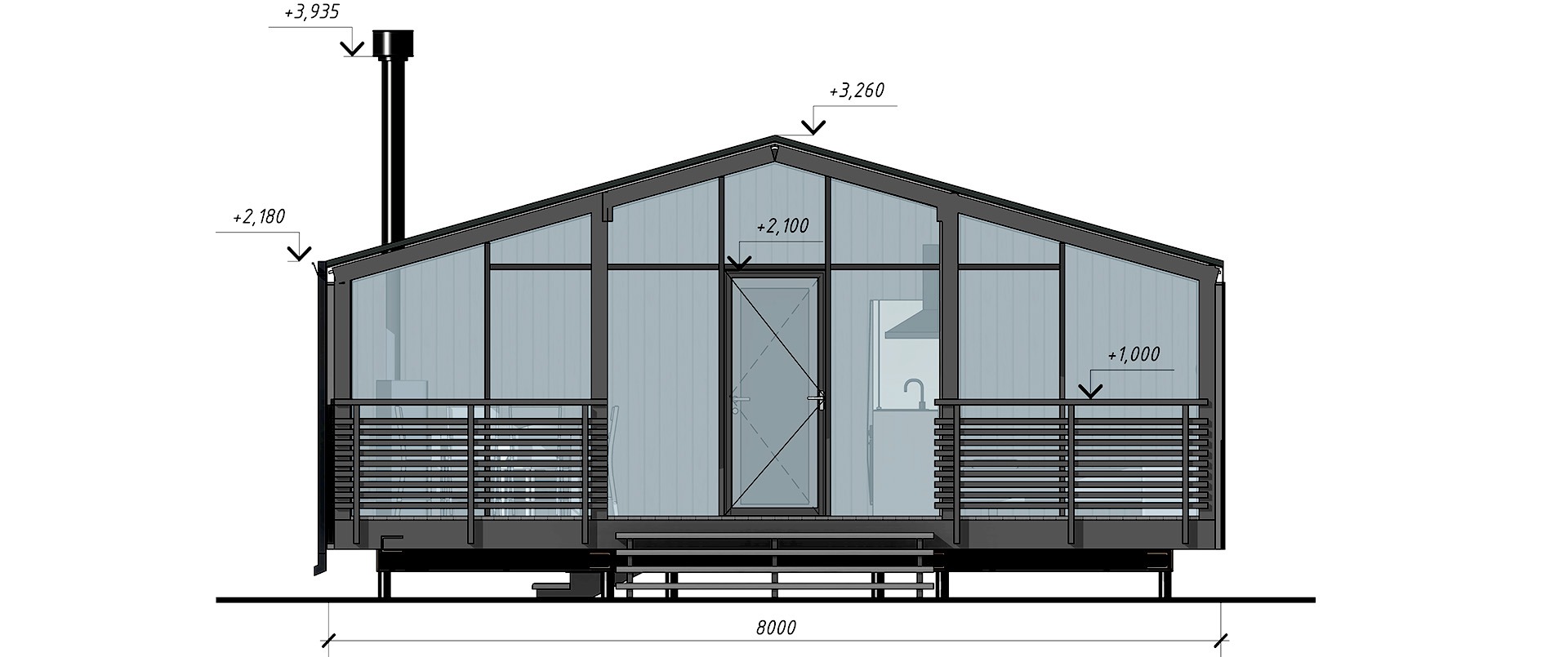

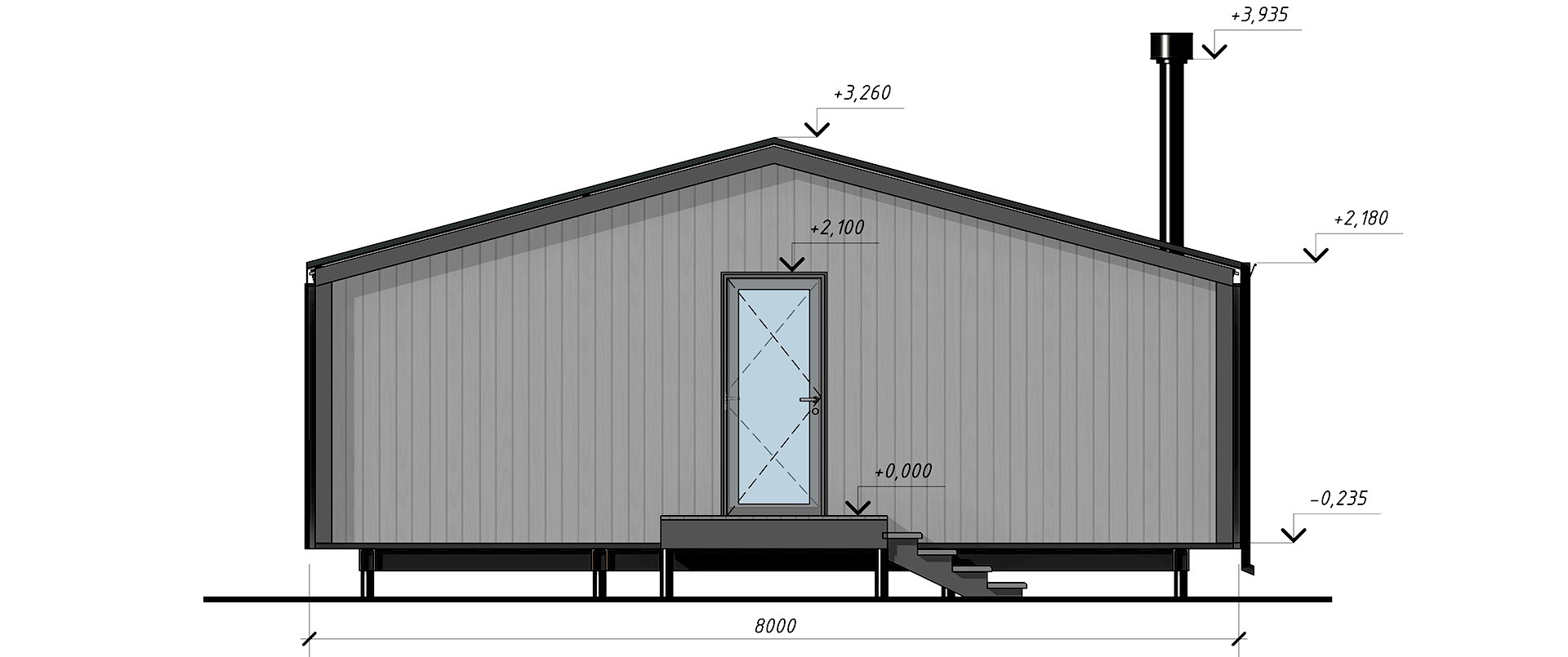

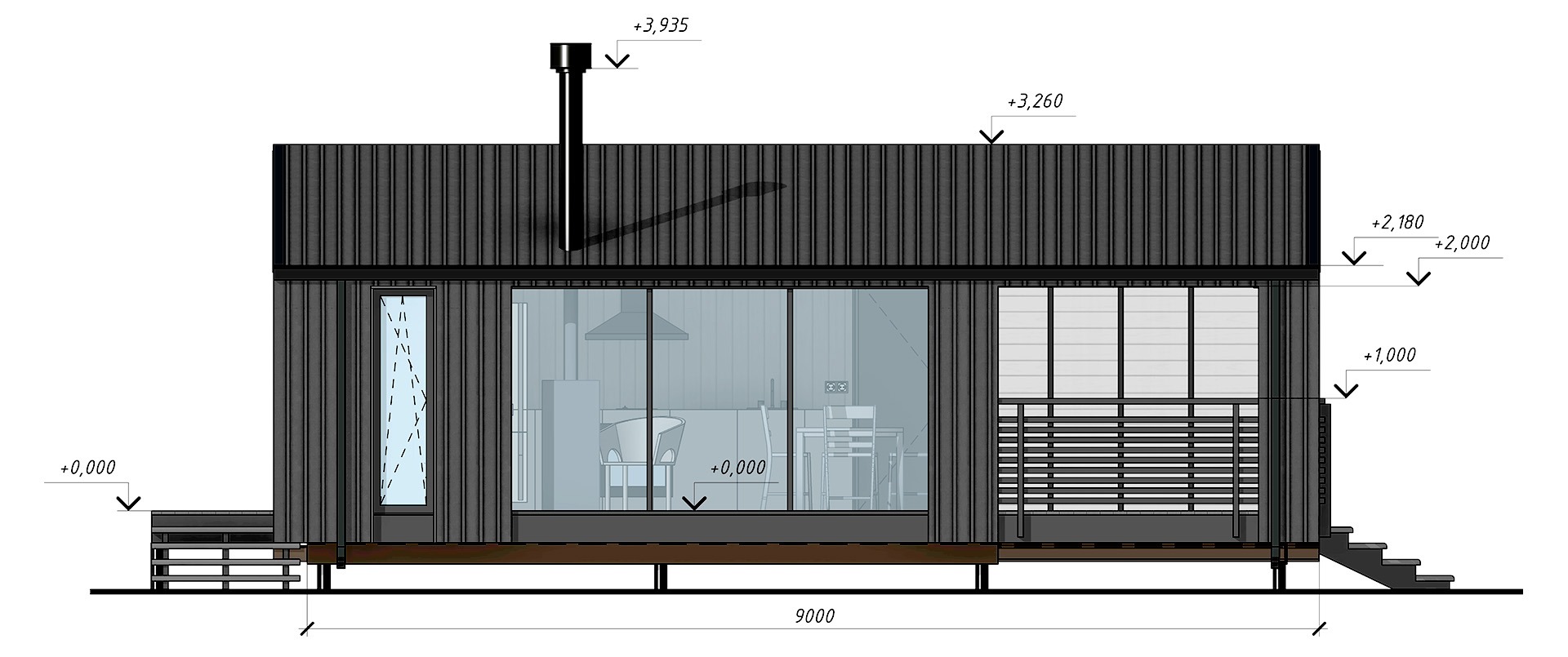

FACADE:

The principle of having a machine build another machine lies at the heart of modern manufacturing.

3D HOUSE FLYOVER 360°:

Examine the house from all angles and appreciate every detail.
