Typical modular house.

Dublhaus 65 suitable for permanent residence of a small family or a seasonal holiday of a large company.
2 bedrooms, an entrance hall, a bathroom and a spacious kitchen-studio with panoramic glazing on two sides were located on 65 m2.

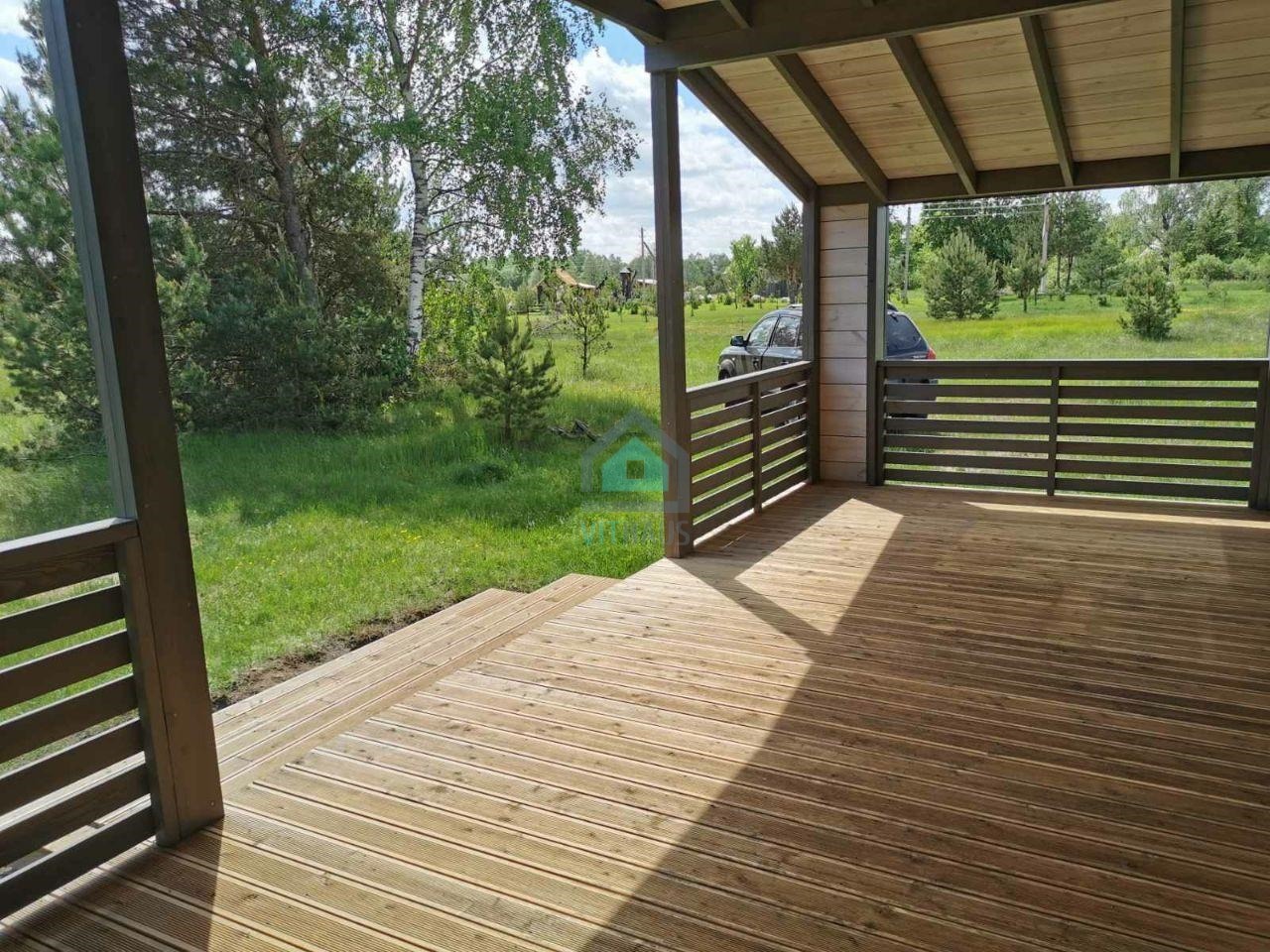

We recommend that Dublhaus 65 be completed with a large veranda in front and a small in rear for access to the backyard from the bedrooms. Different projects include entrances from different sides: front through the veranda, behind or on the side – through the high module.

DUBLHAUS 65

BUILDING AREA (with ground terrace): 105.48 m²

USEFUL AREA: 65 m²

DIMENSIONS (HxWxL): 4.06×7.86×13.42 m

CEILING HEIGHT: 2.15-3.10 m

VERANDA USEFUL AREA: 23.70 m²

ROOMS:2

PERIOD OF DELIVERY: 6 months

*Cost excluding VAT

PRICE: 149 411 €

CALCULATE TOTAL COST

Download the catalog

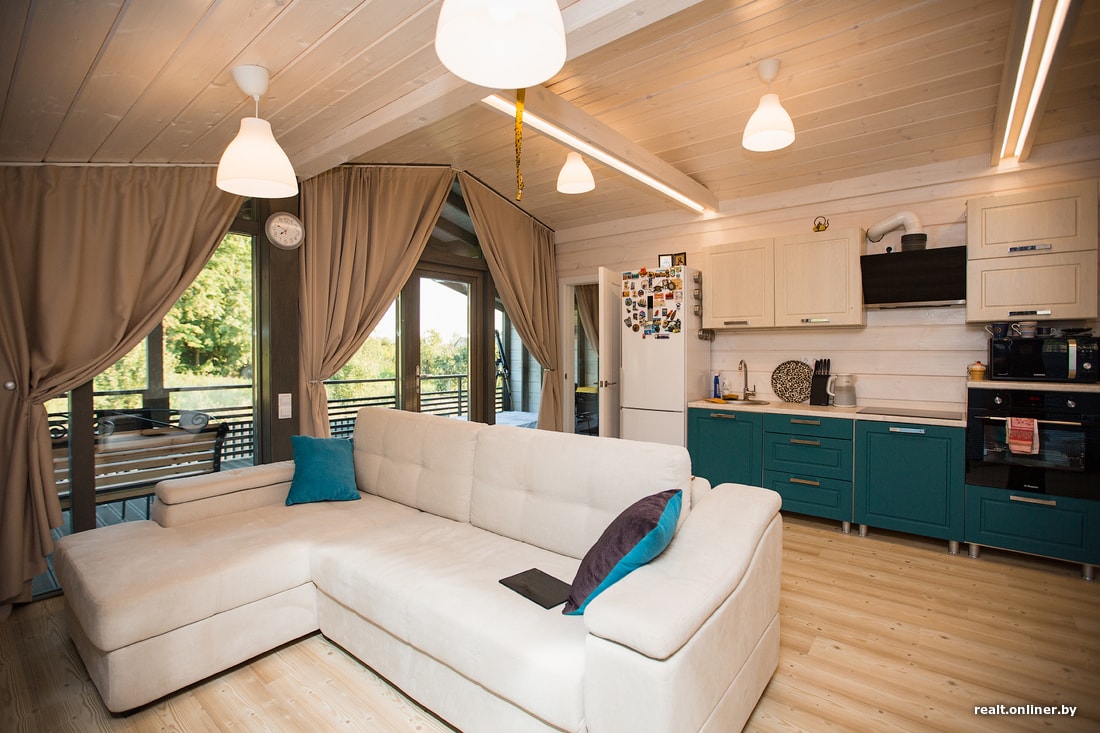

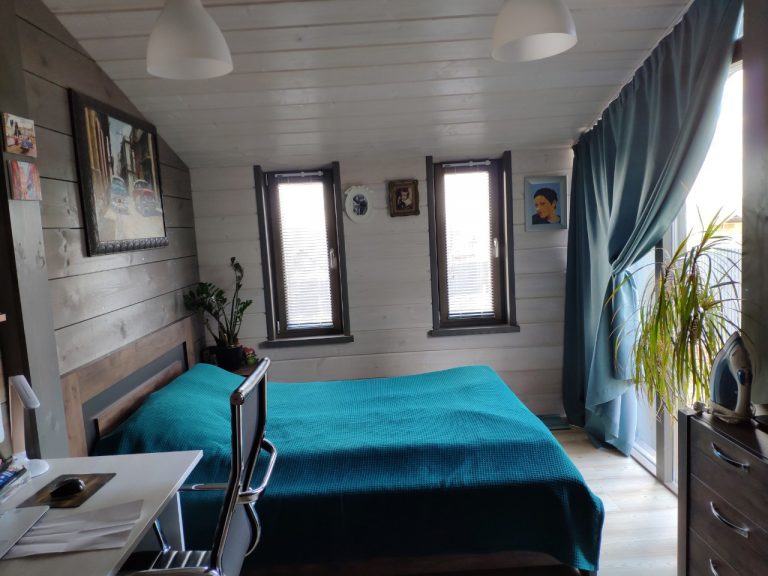

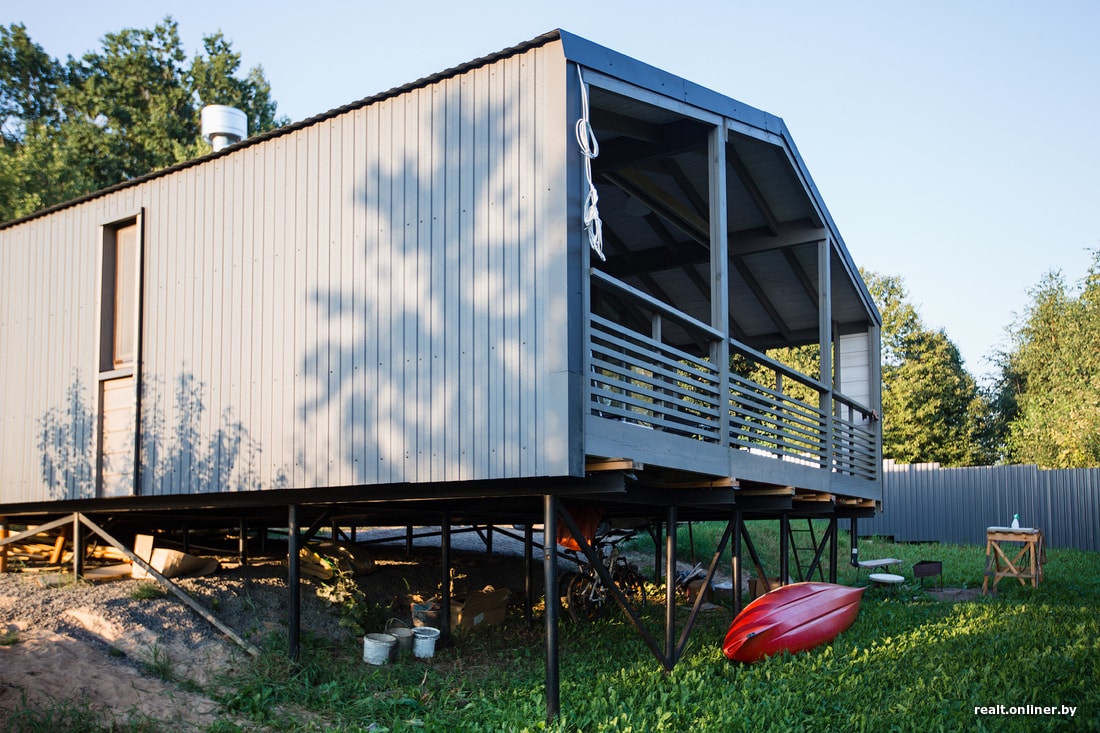

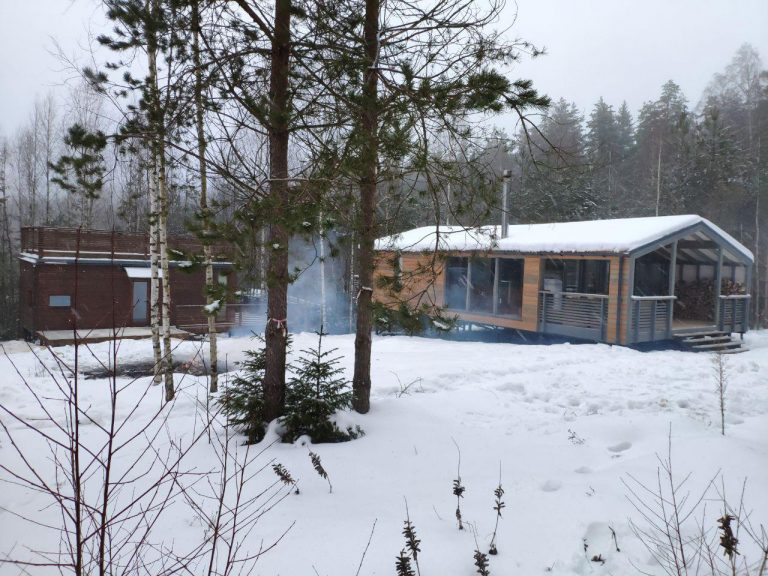

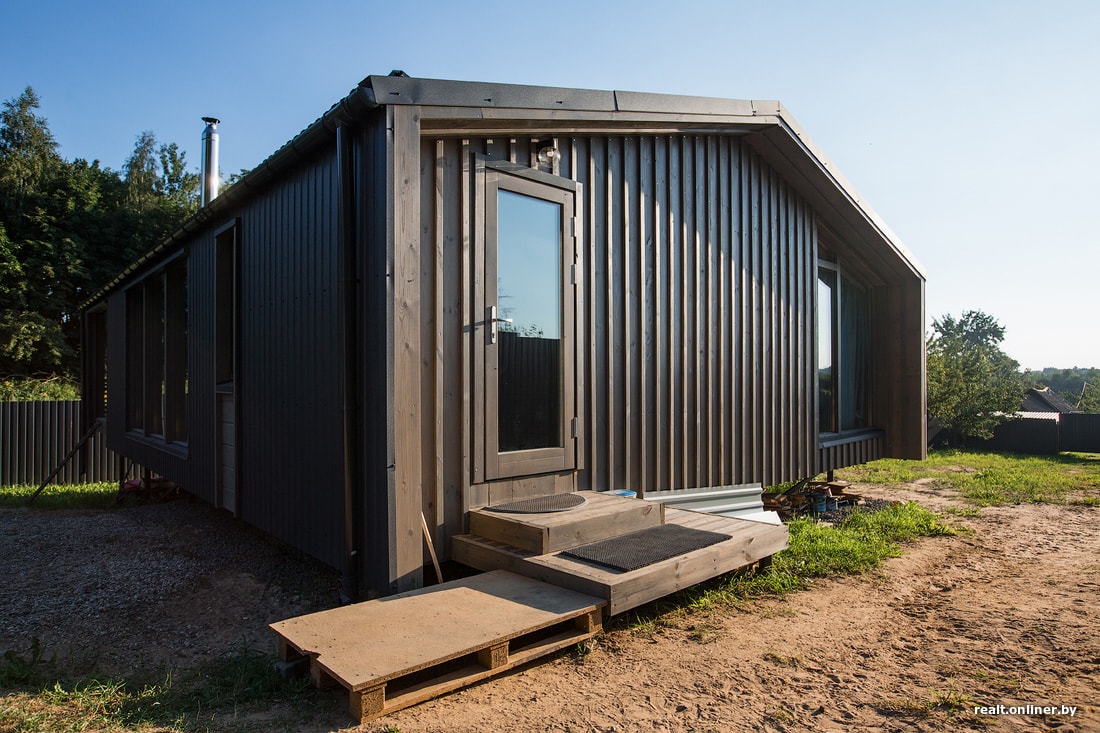

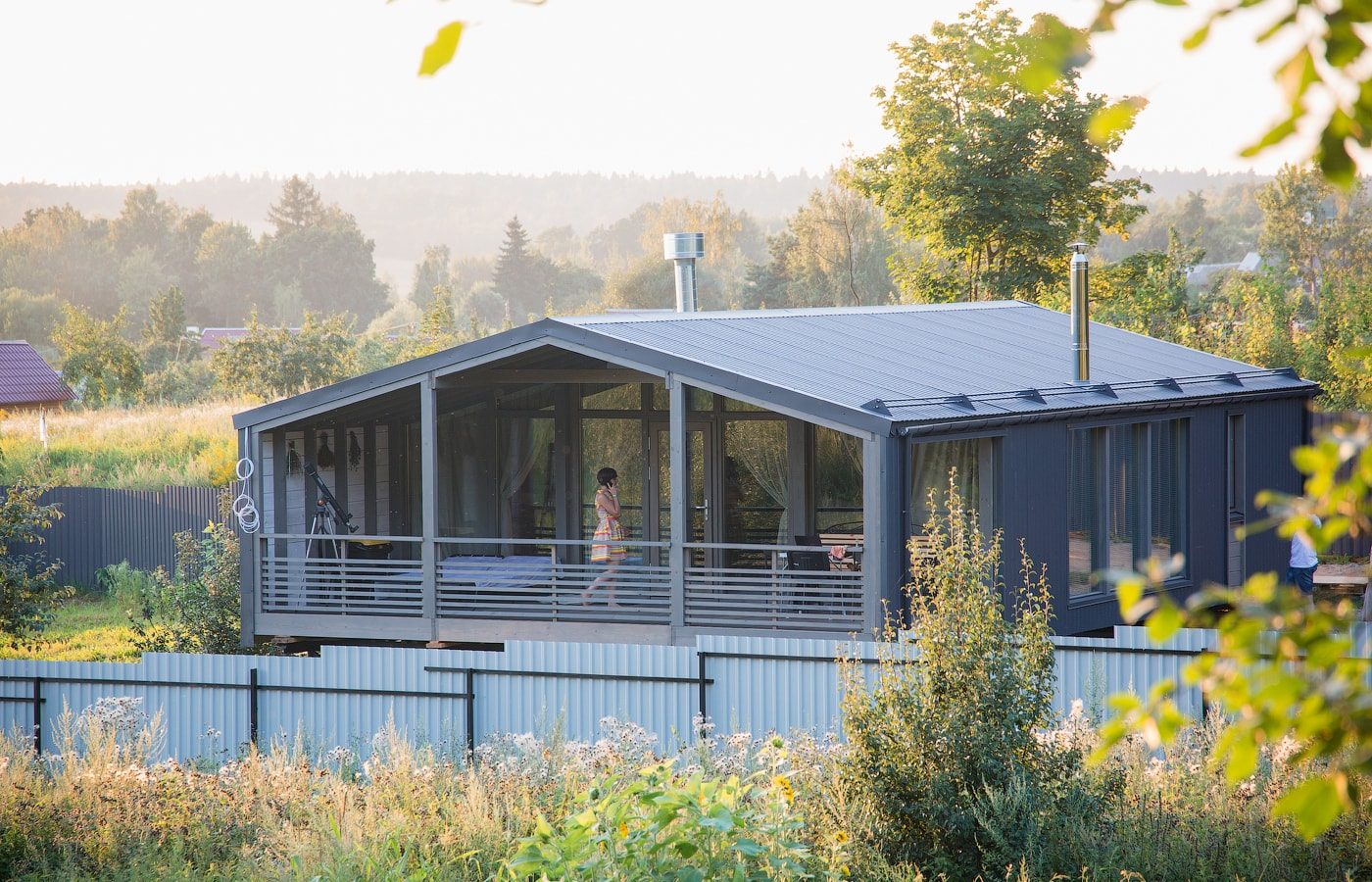

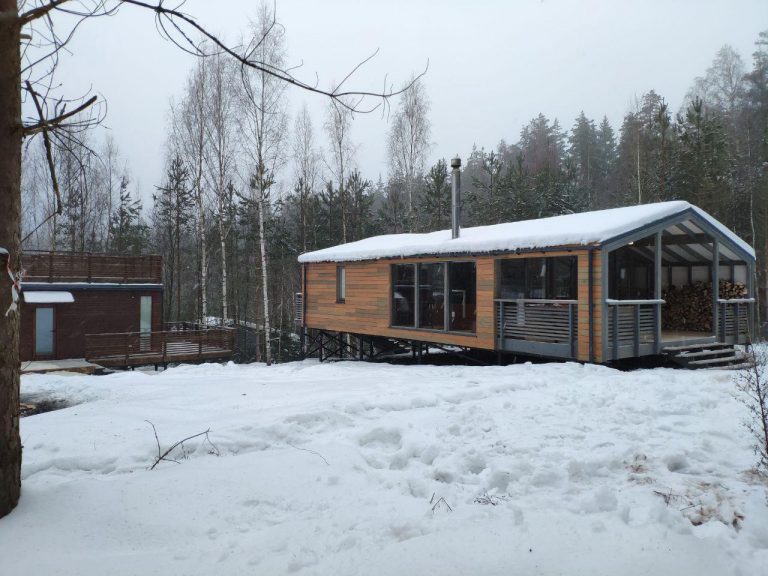

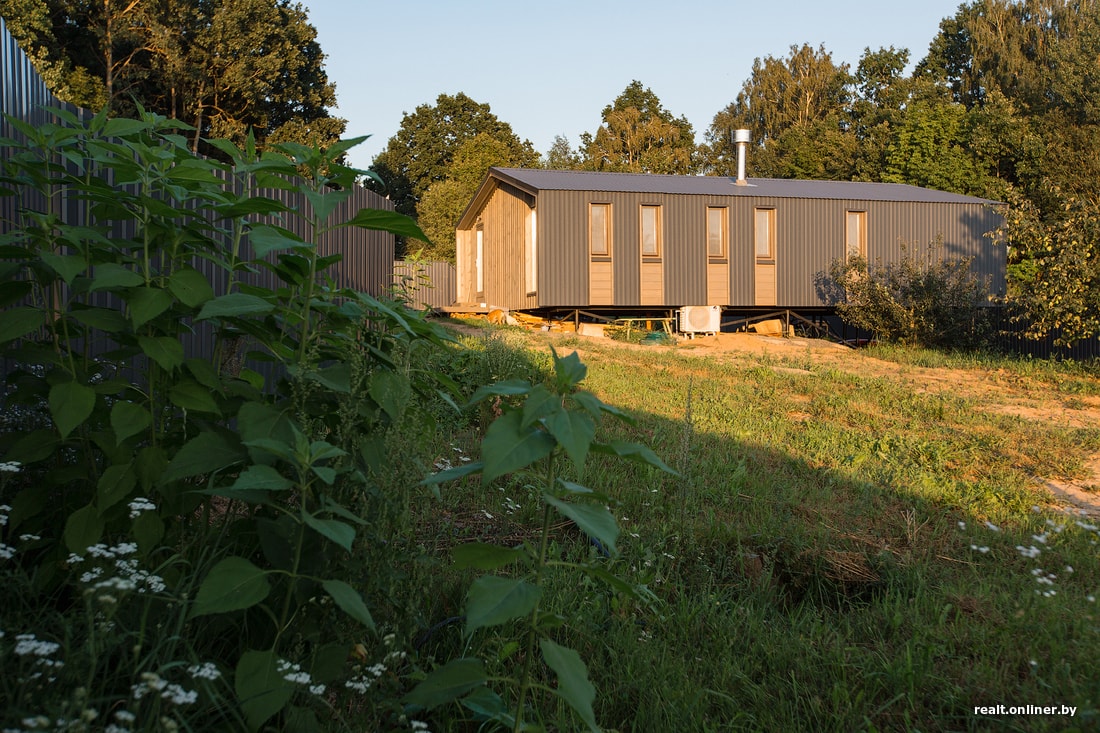

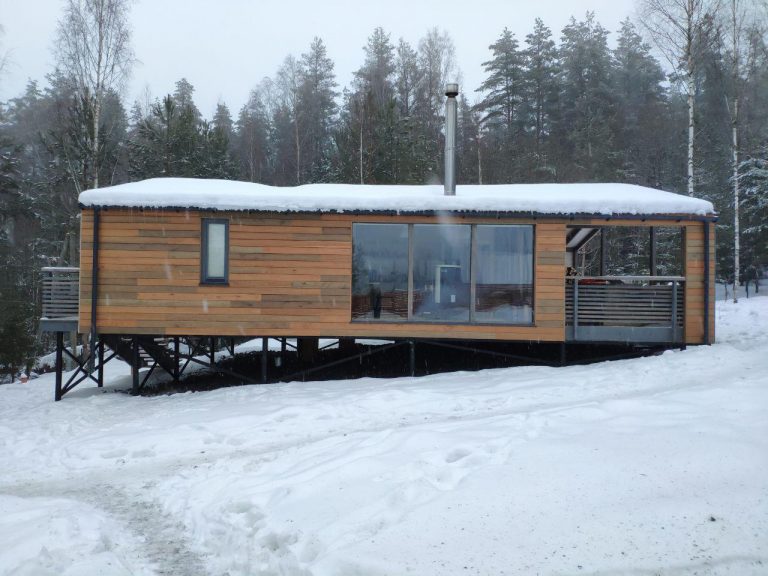

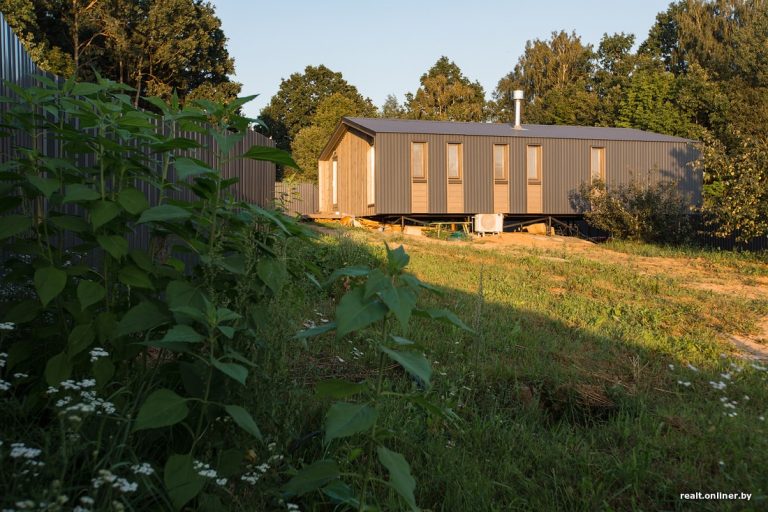

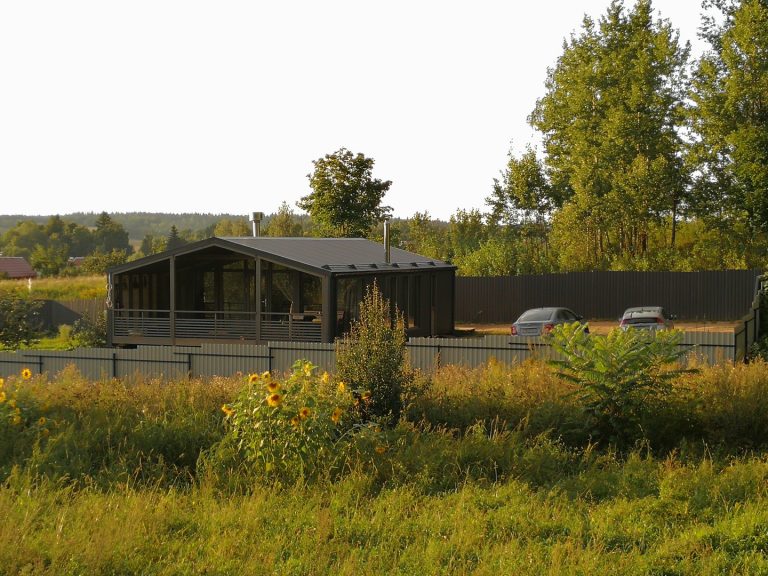

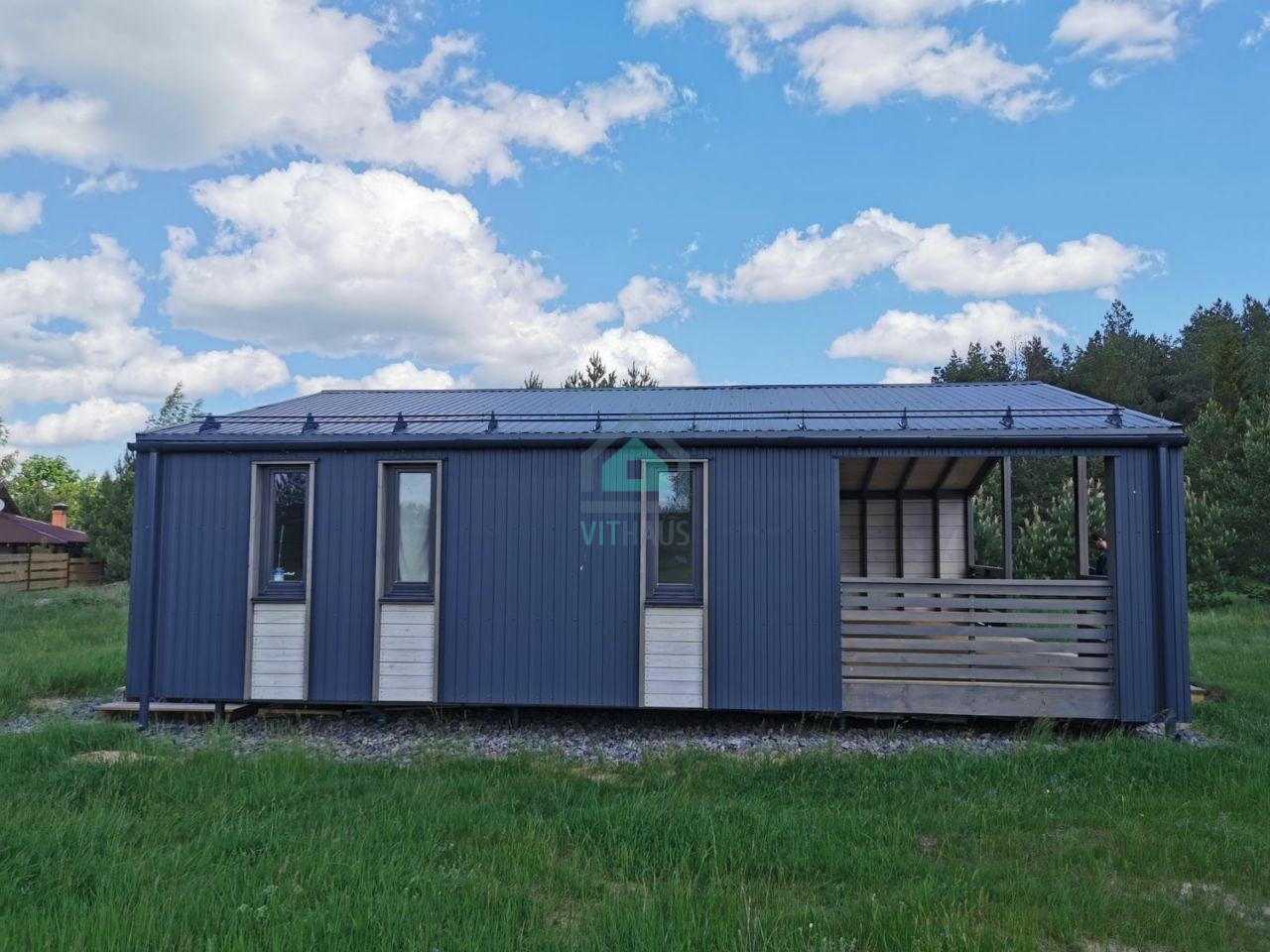

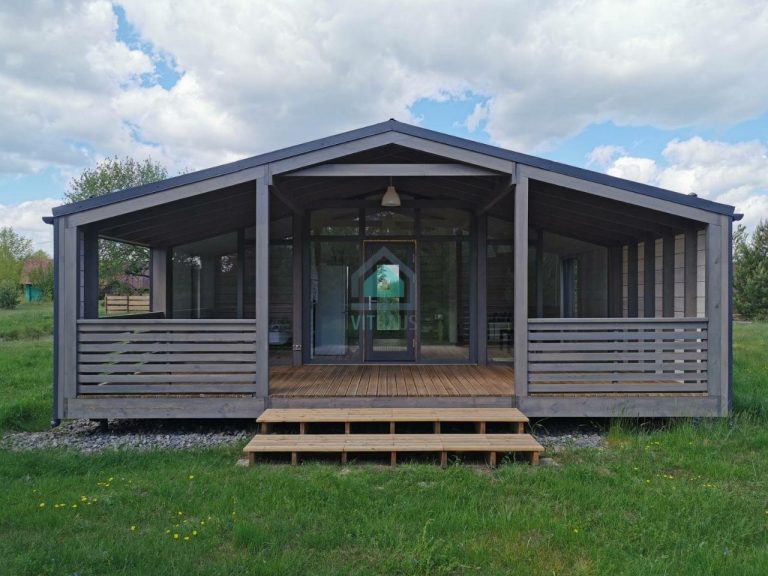

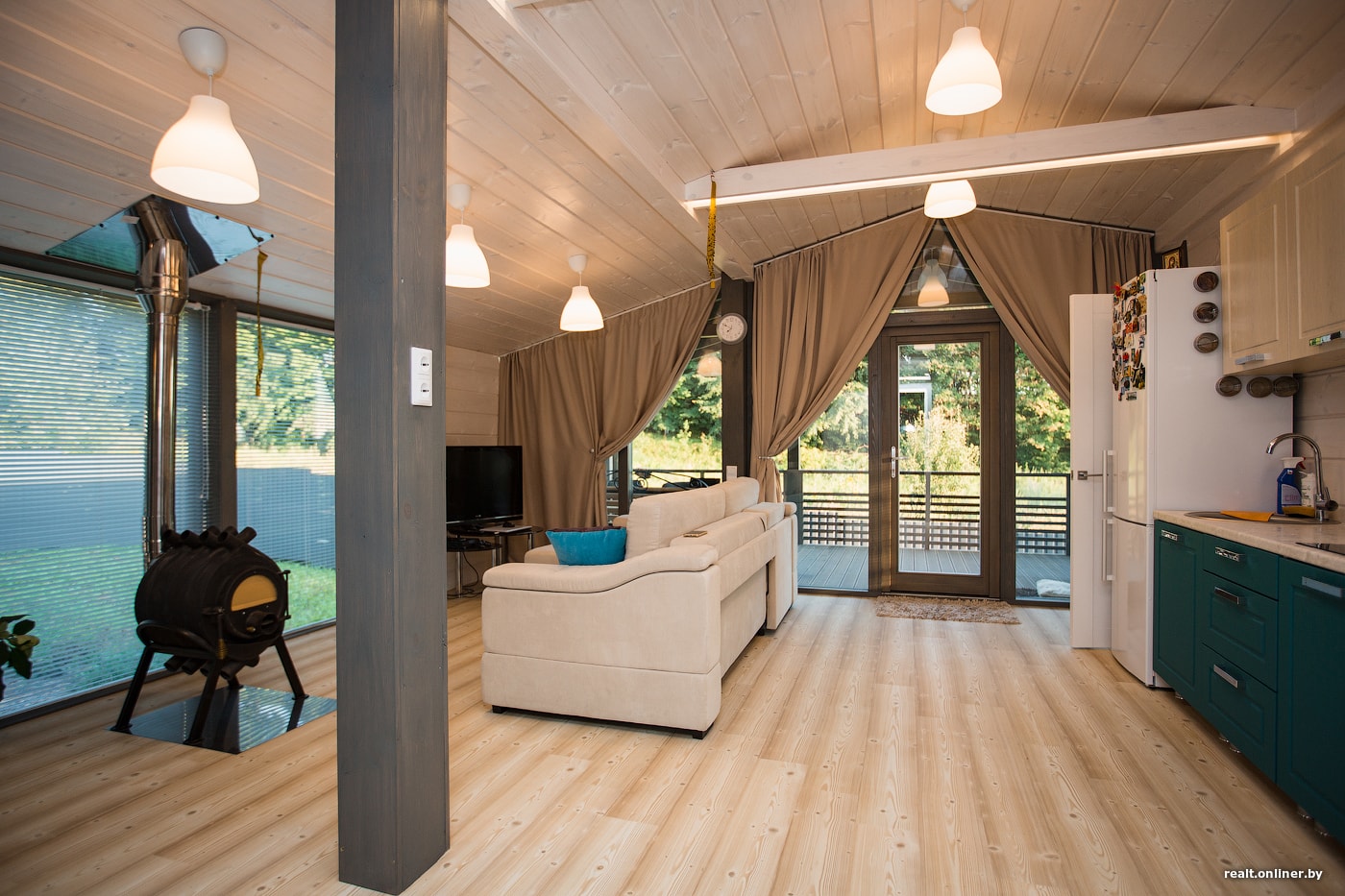

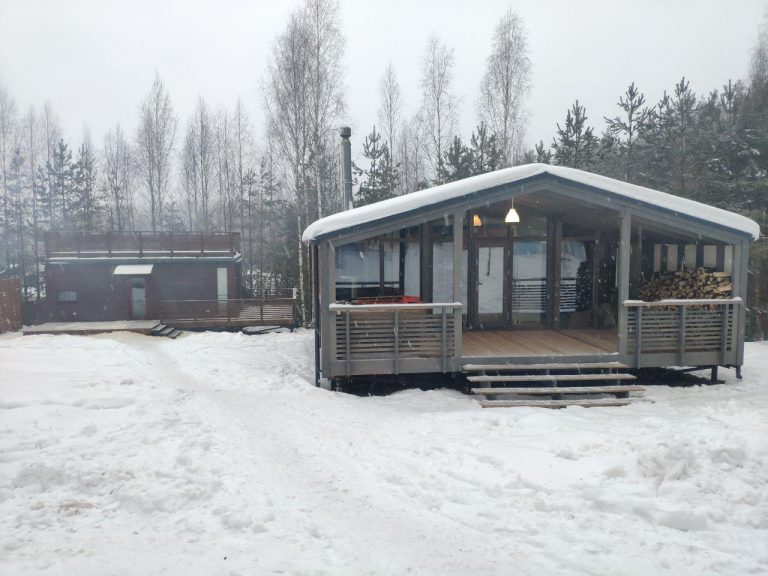

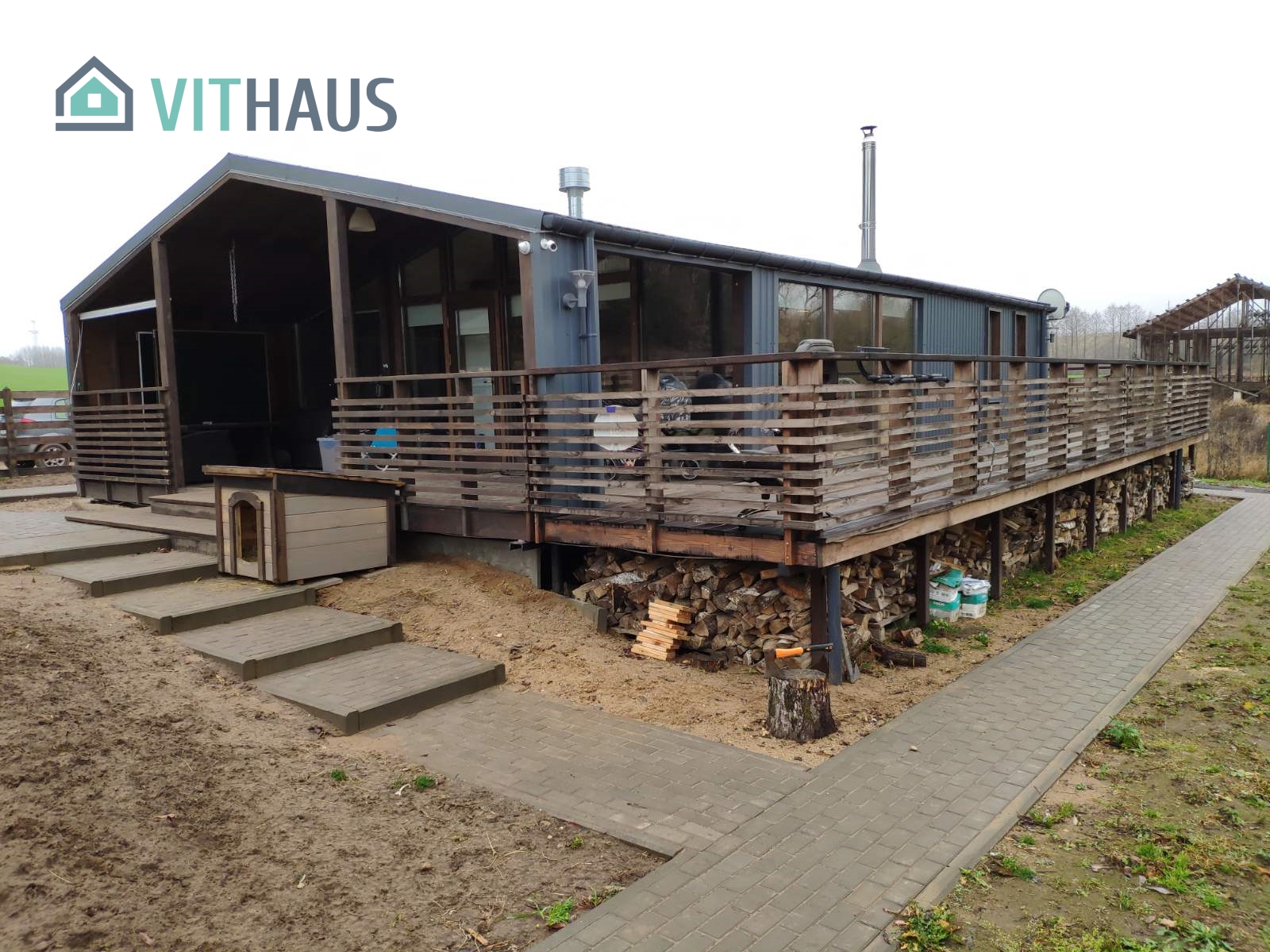

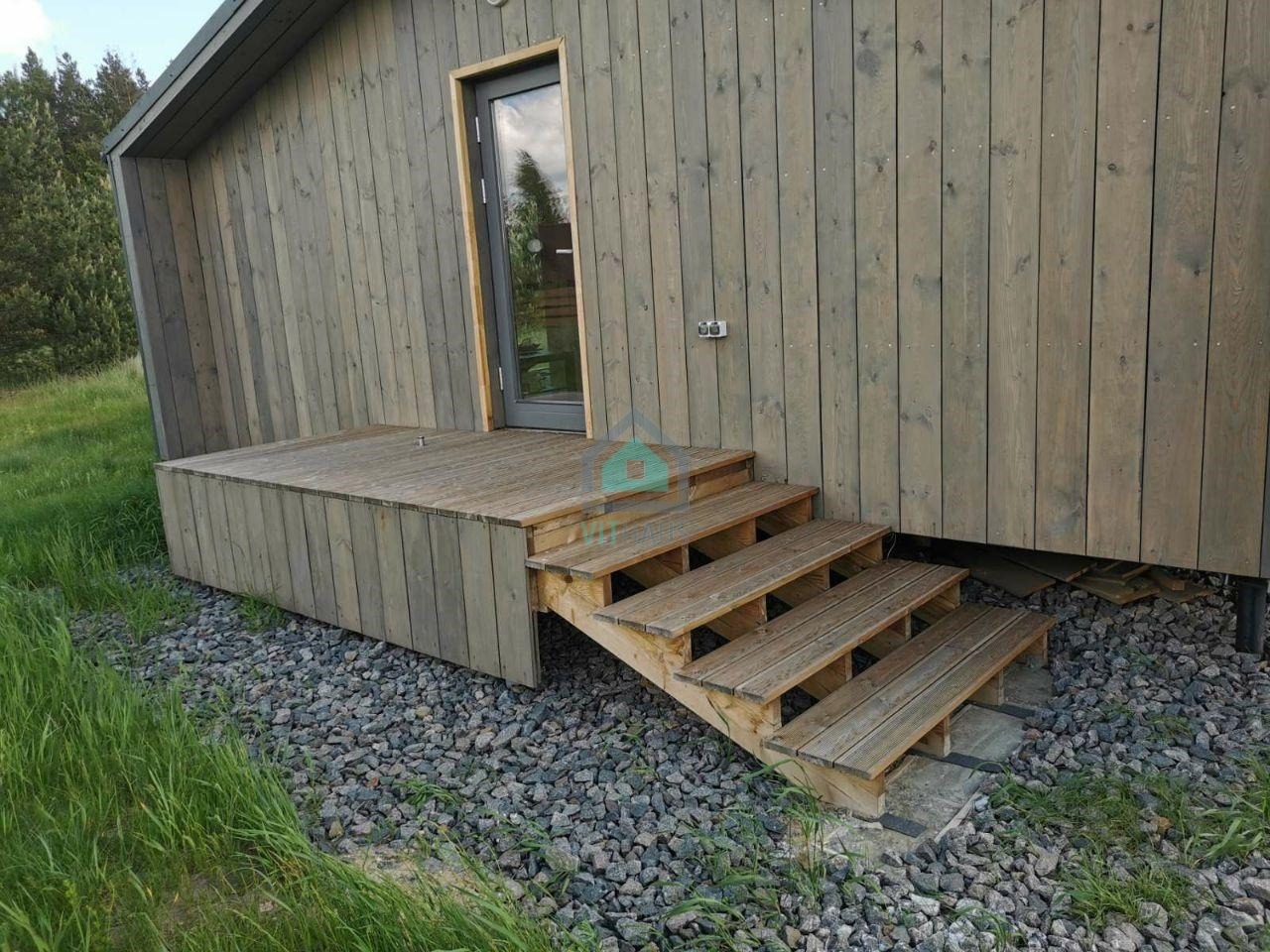

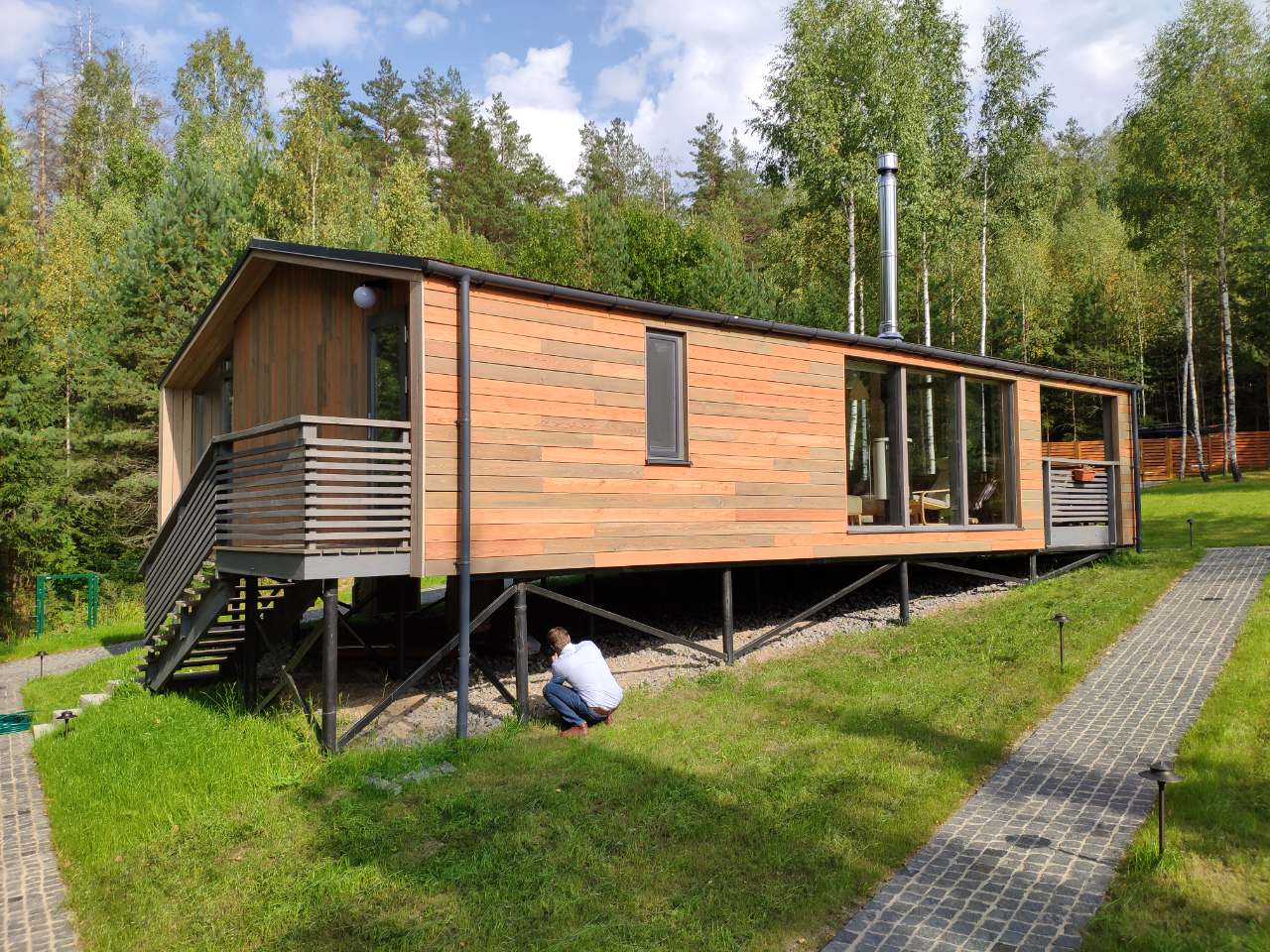

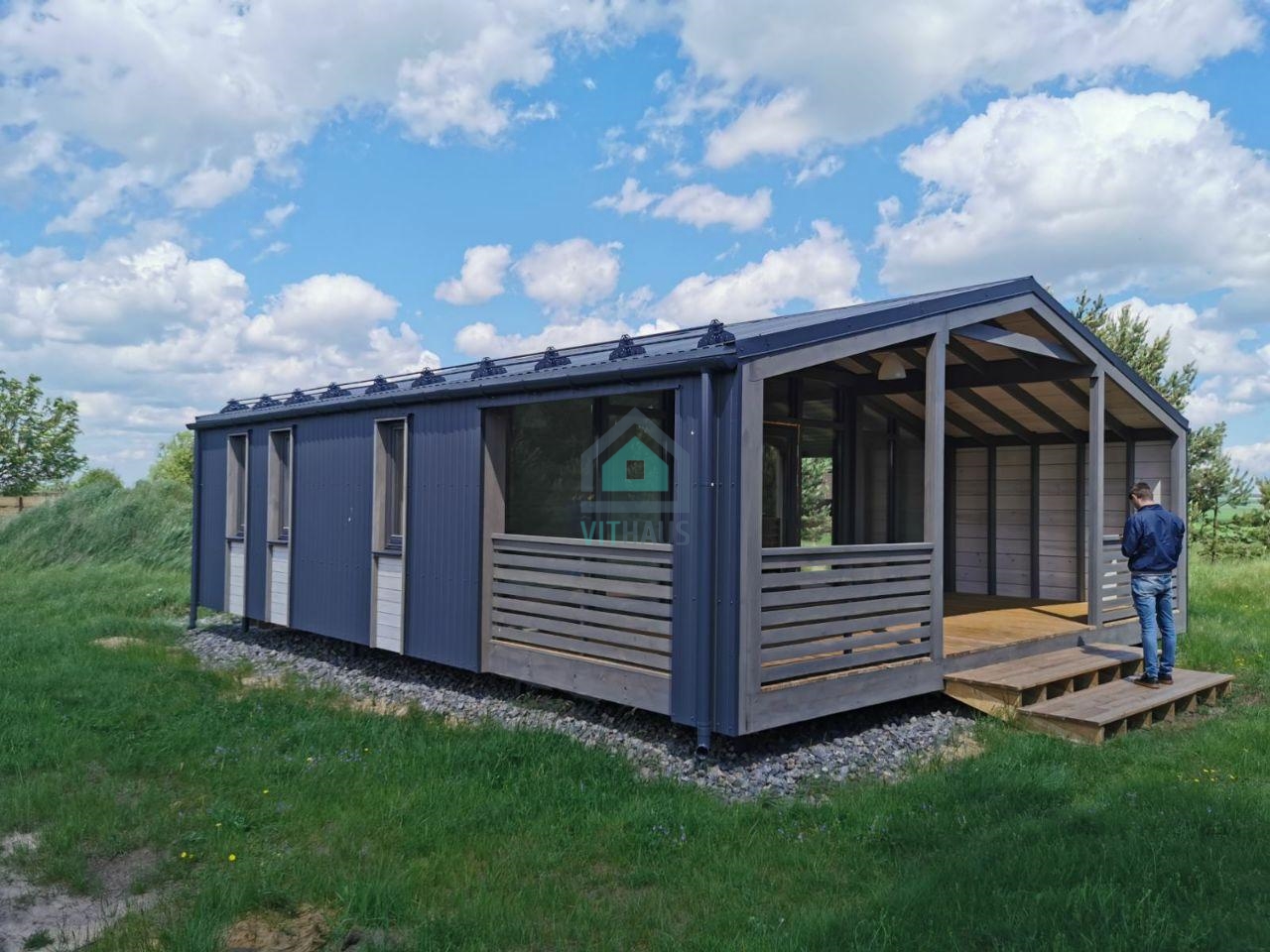

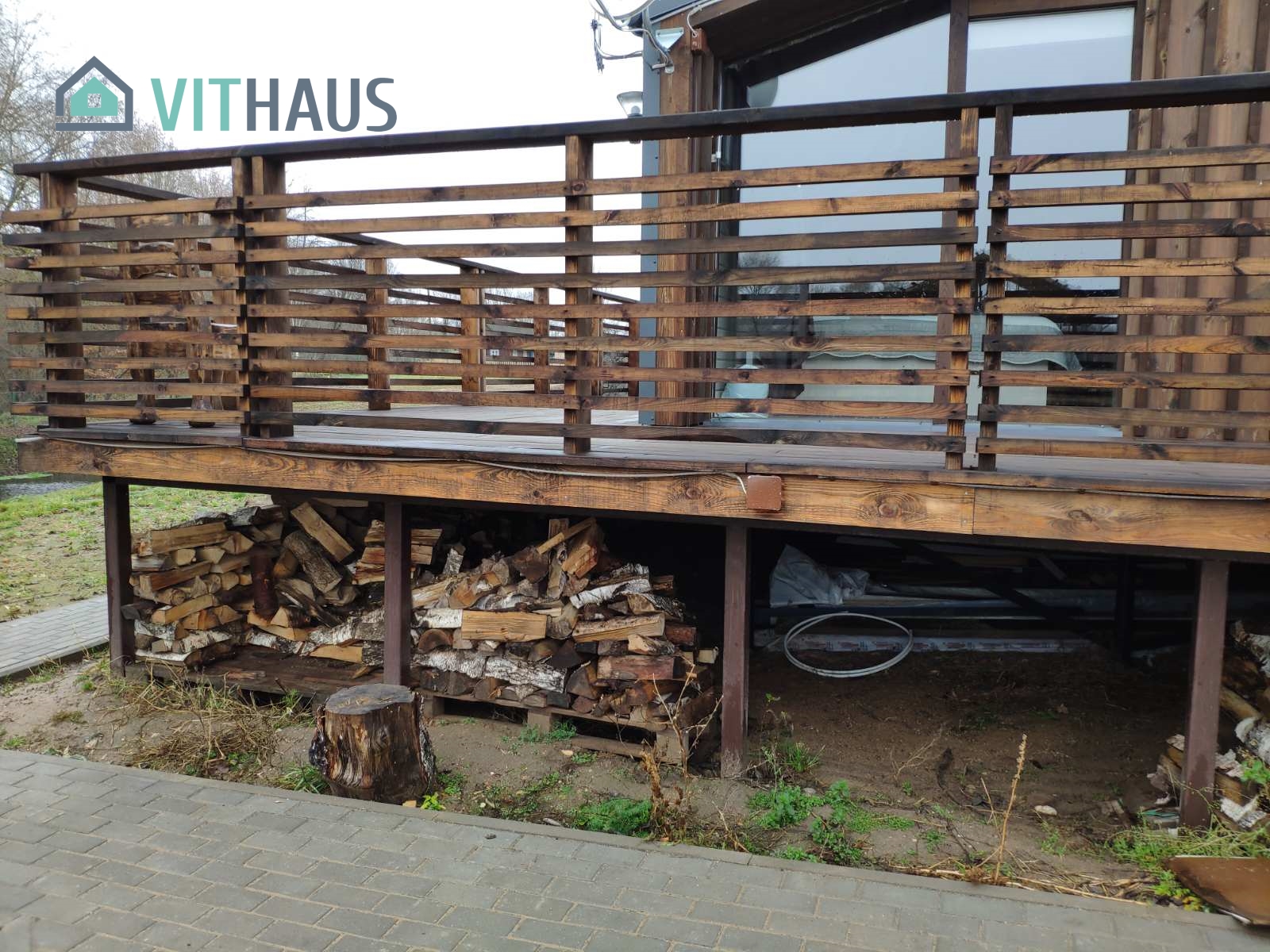

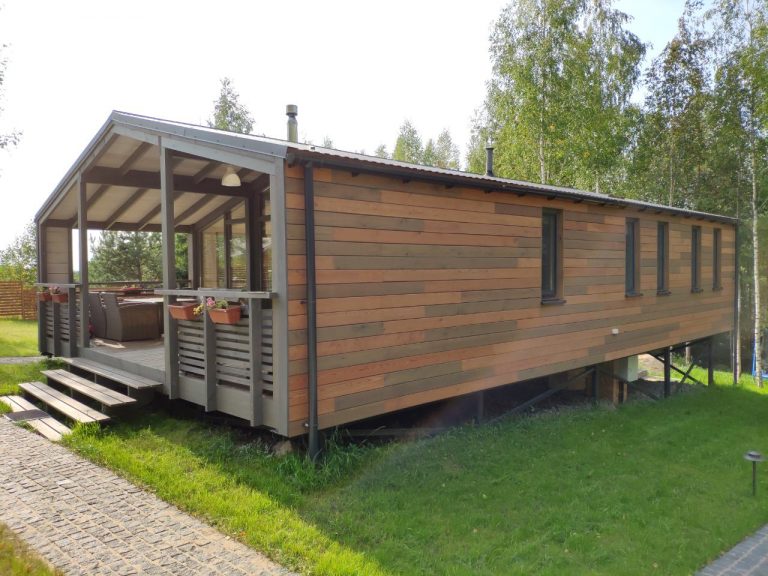

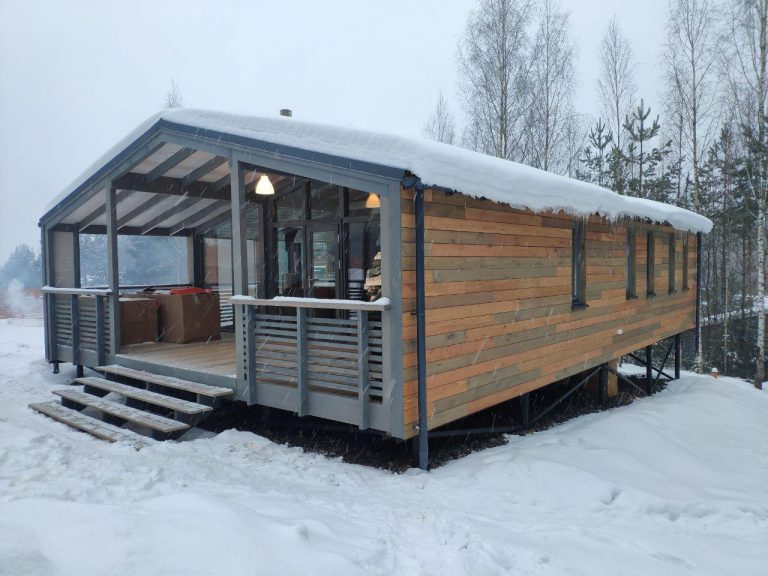

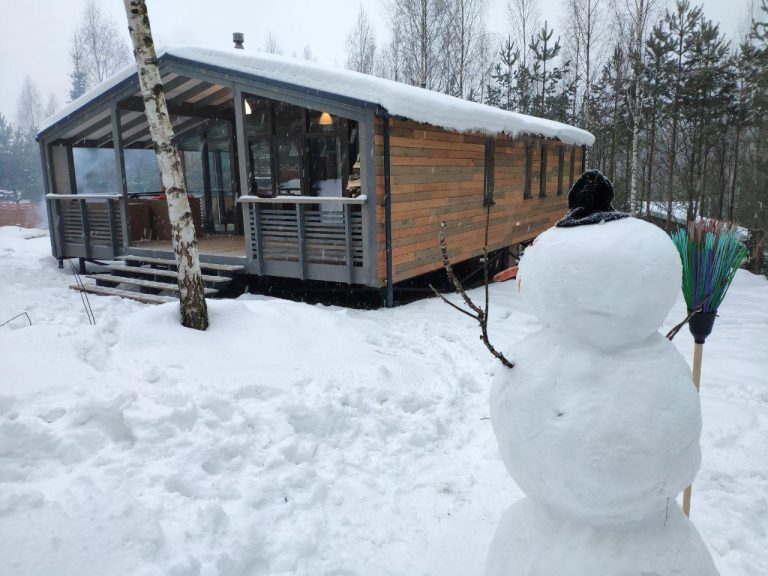

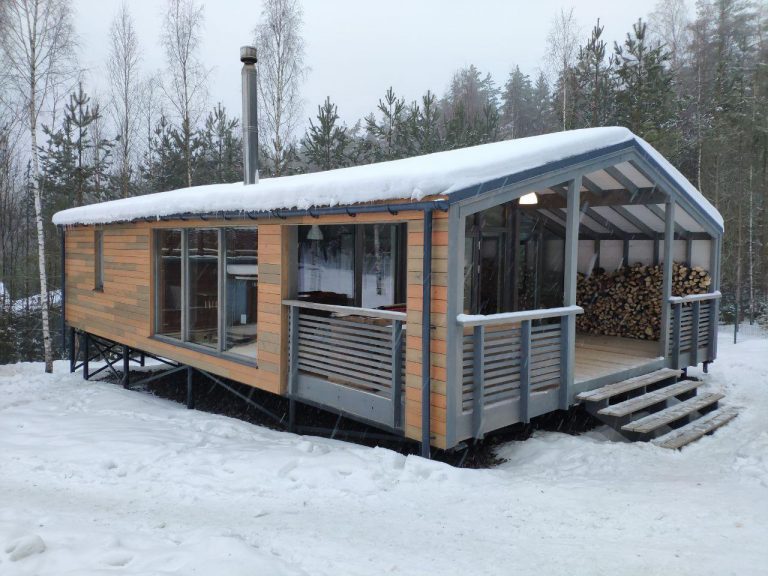

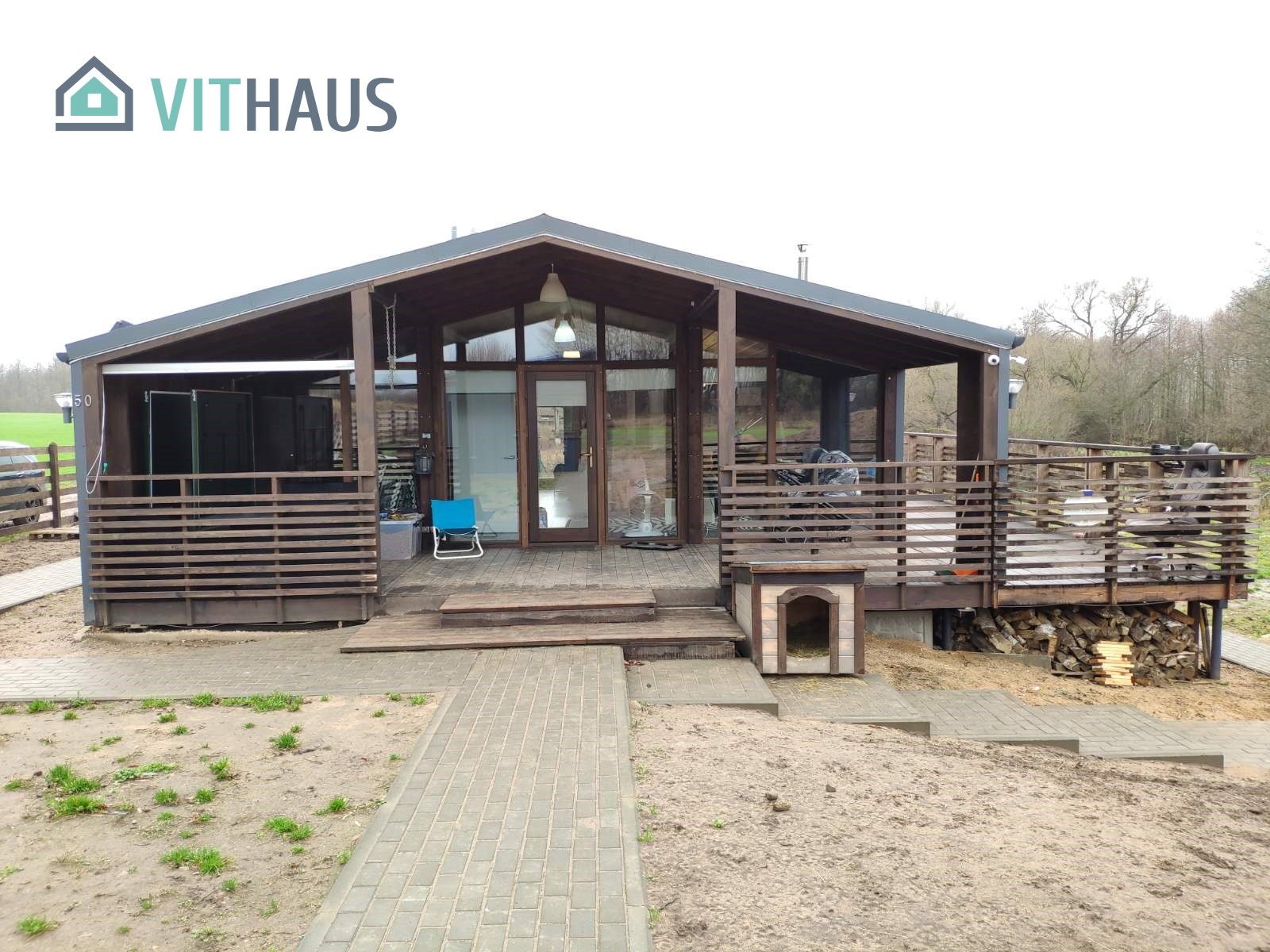

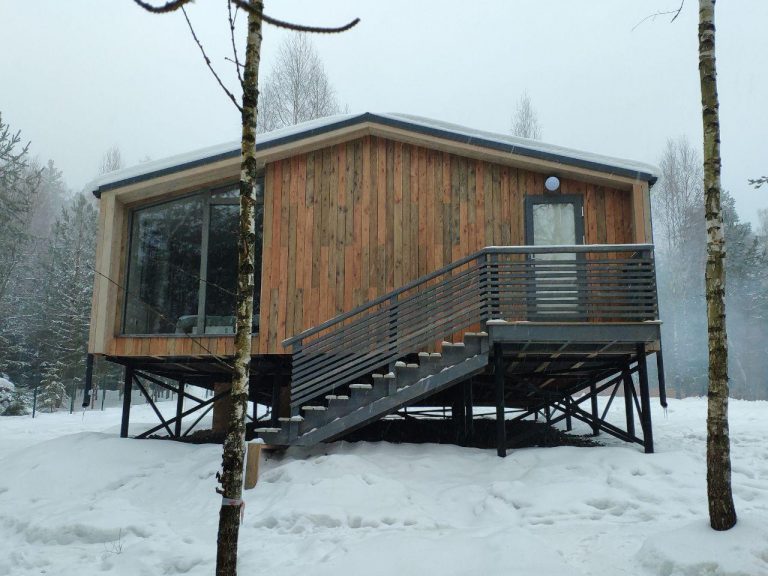

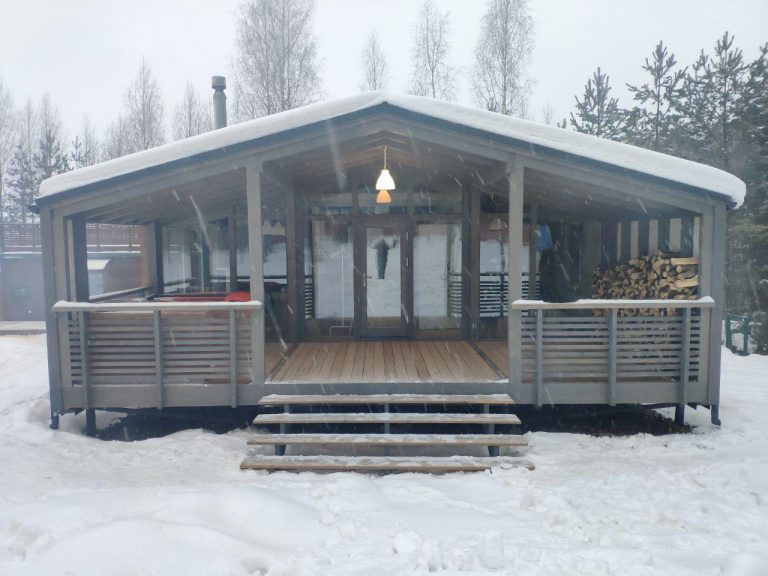

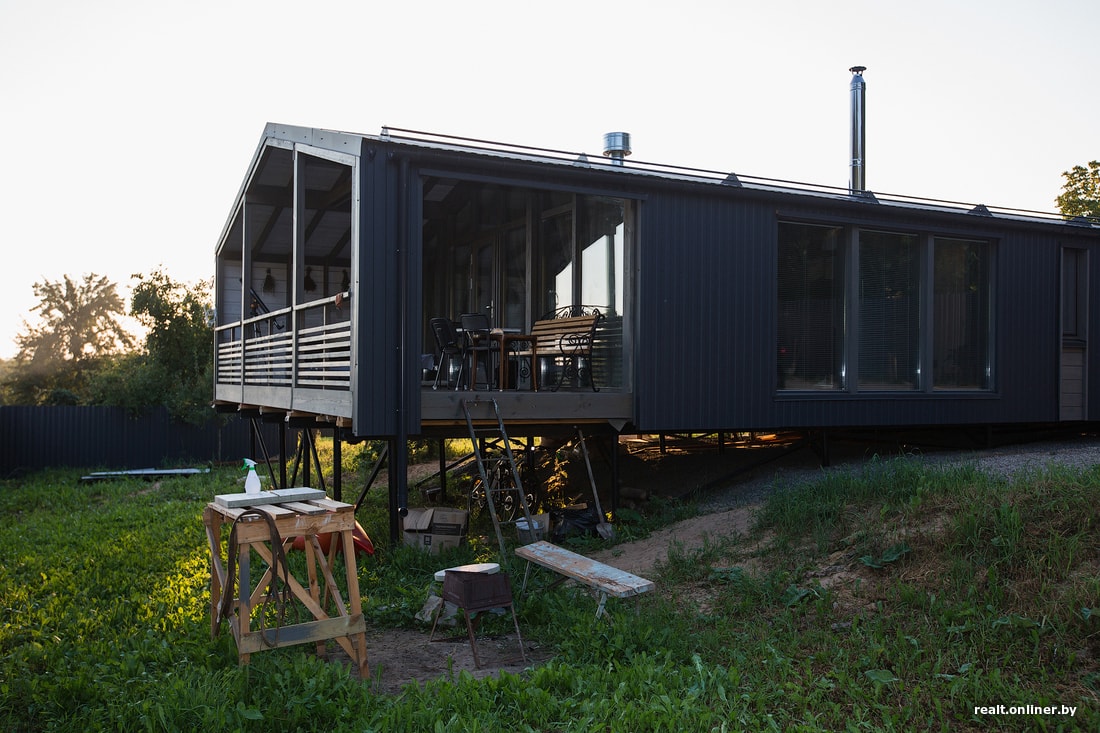

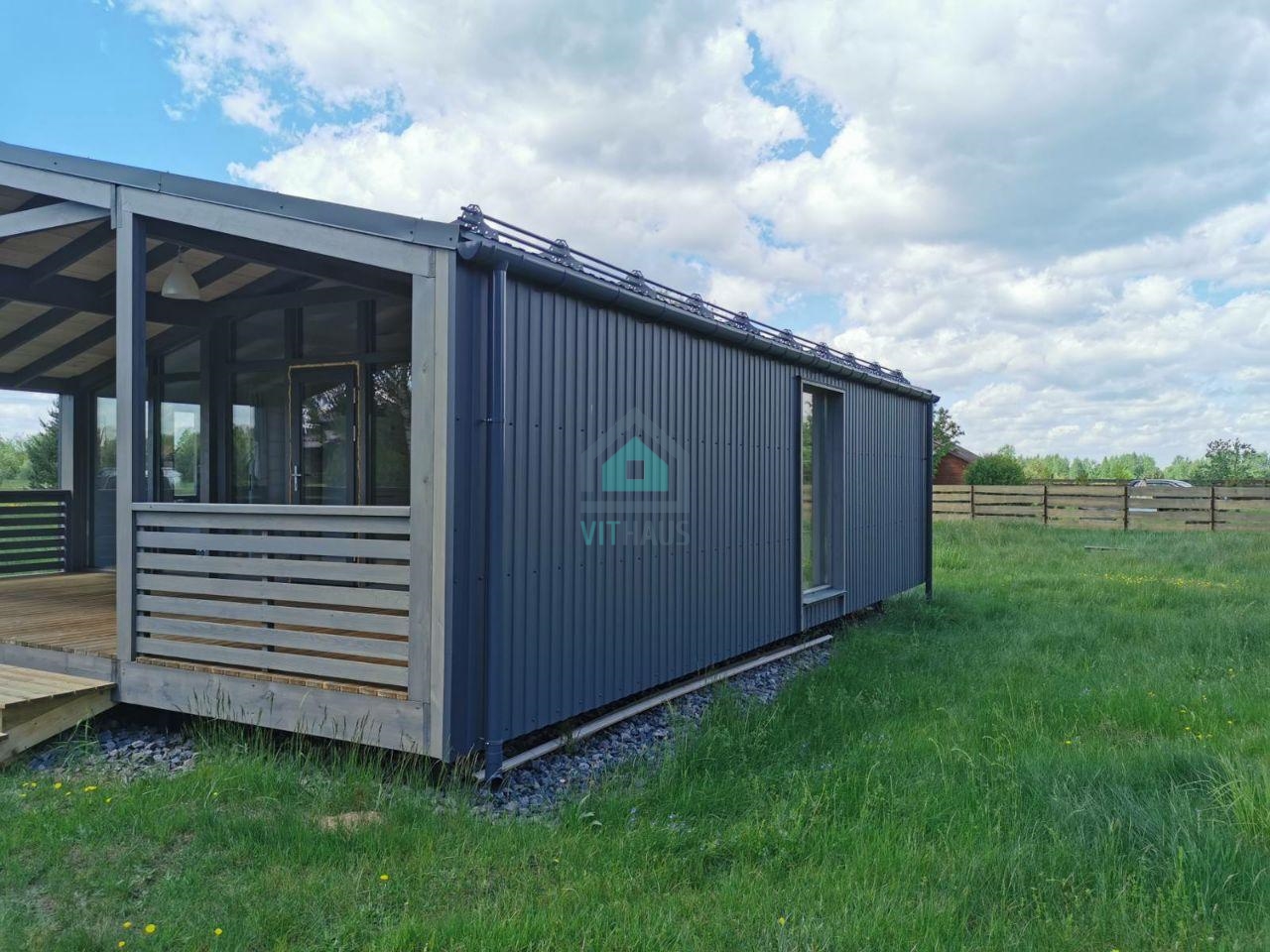

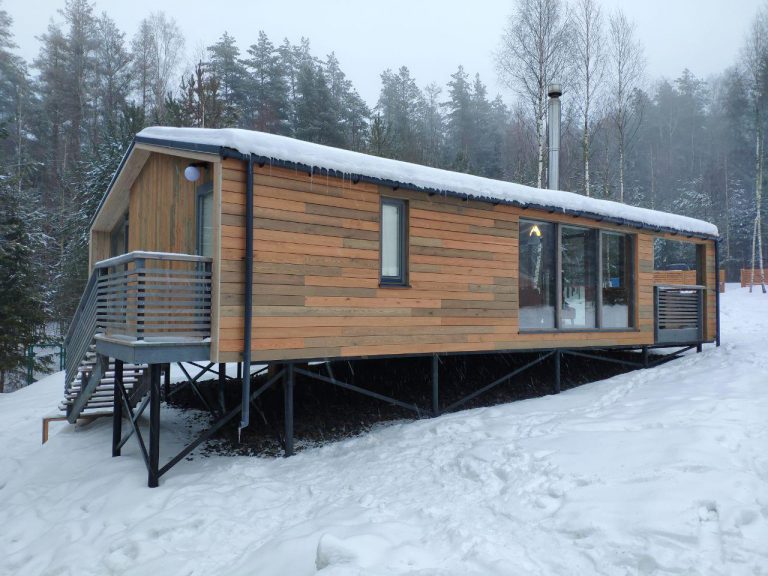

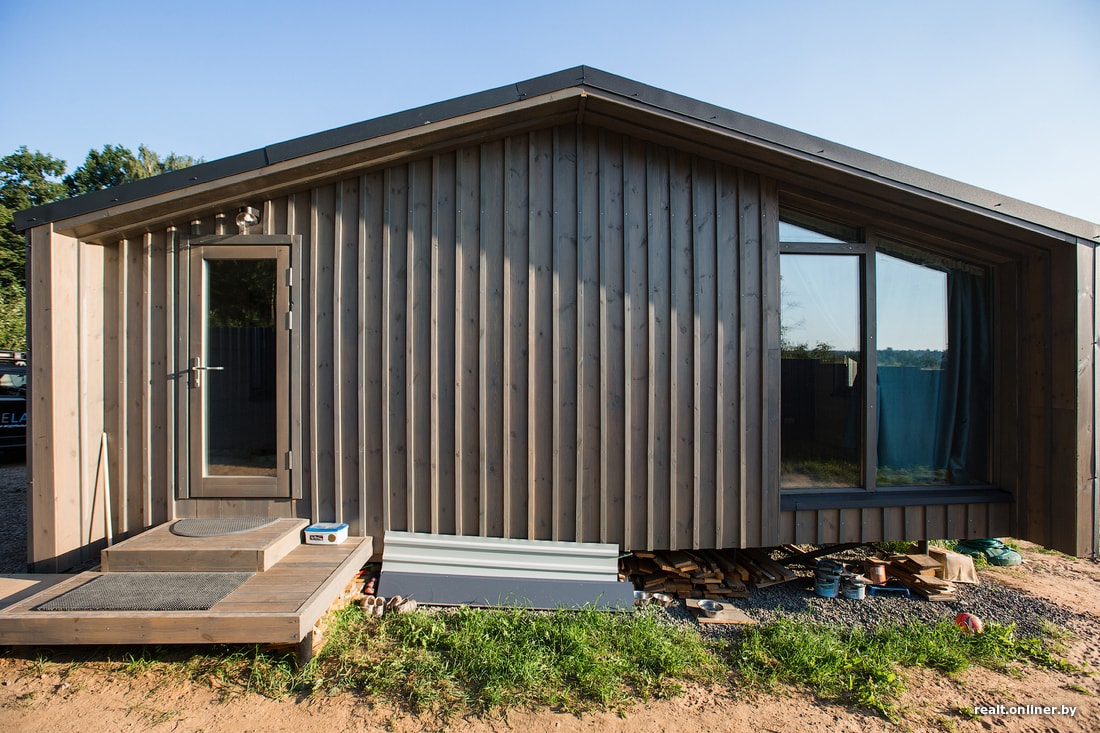

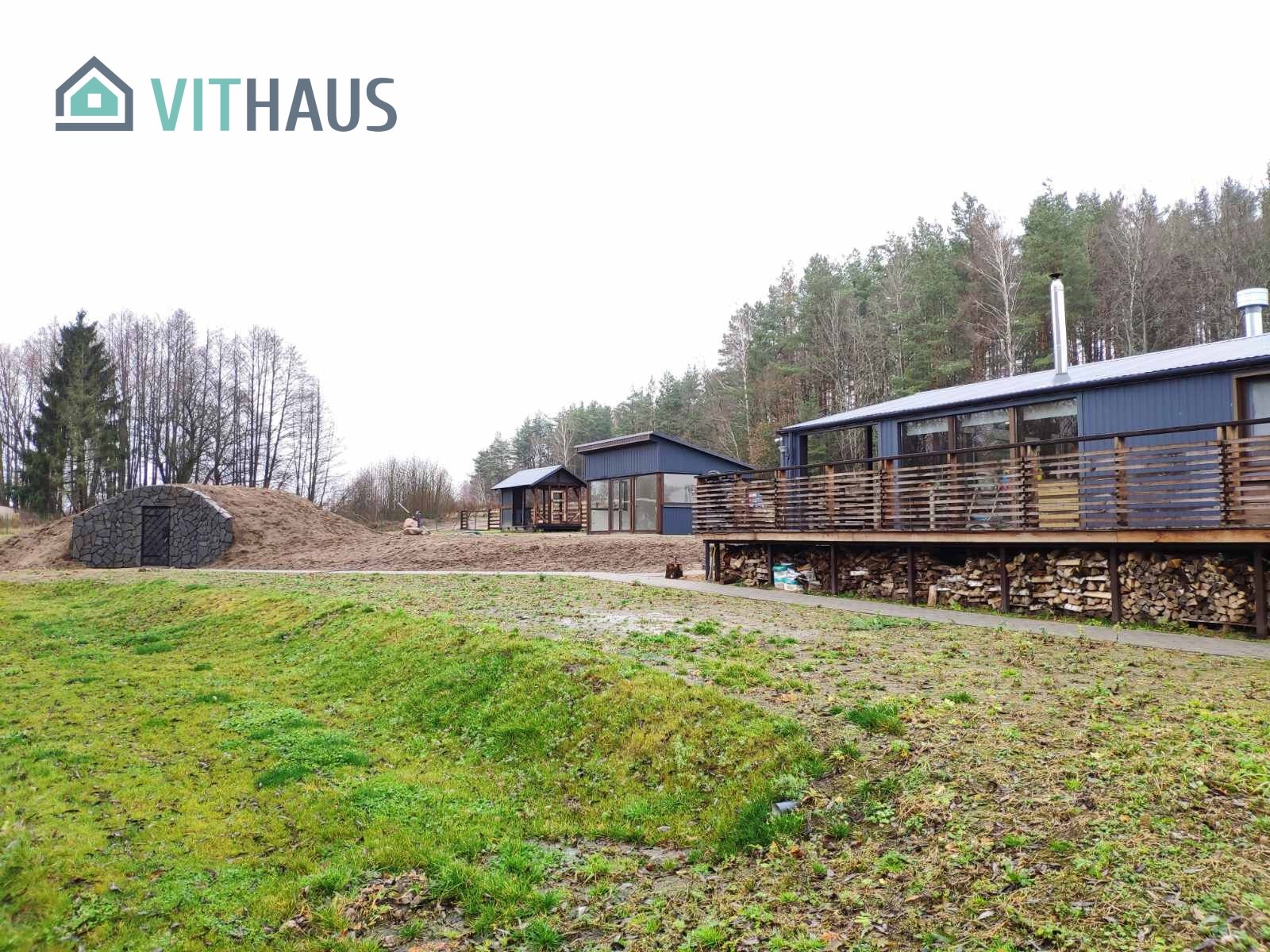

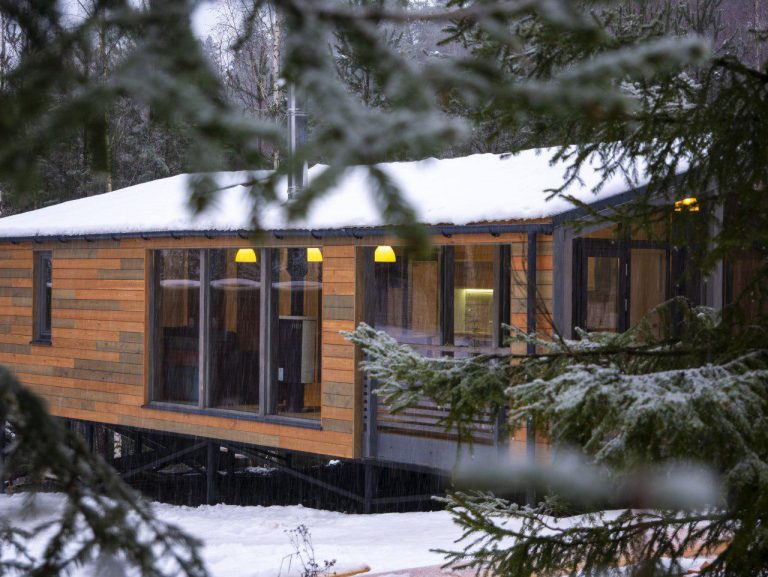

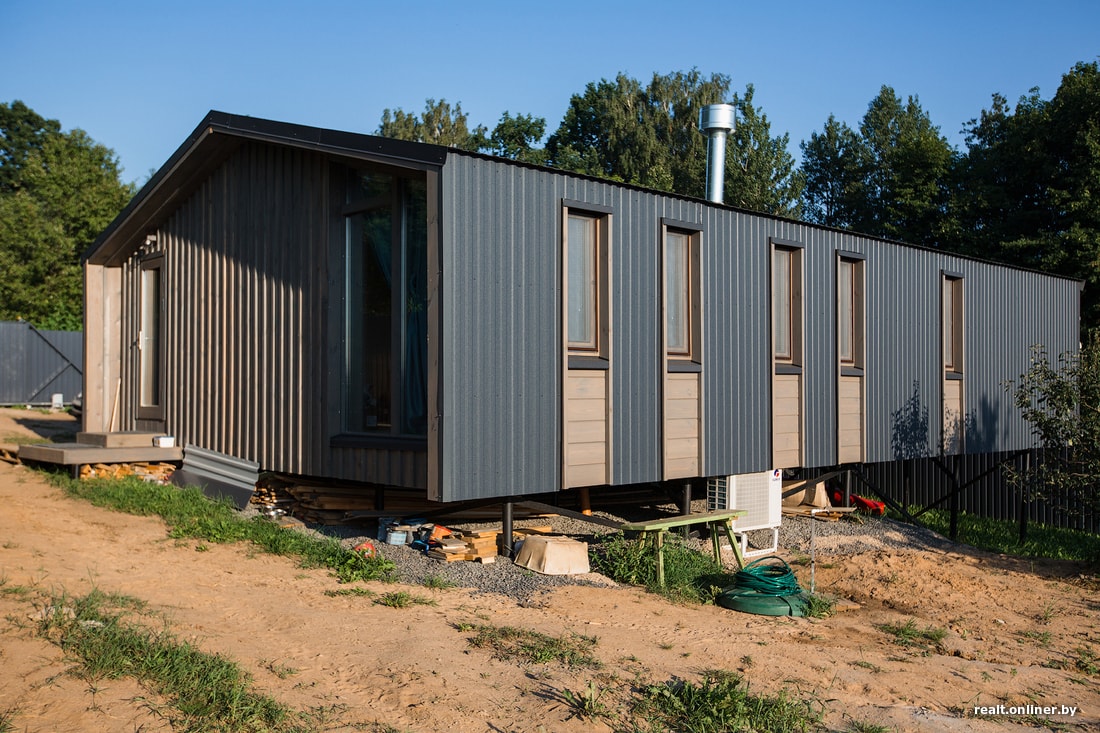

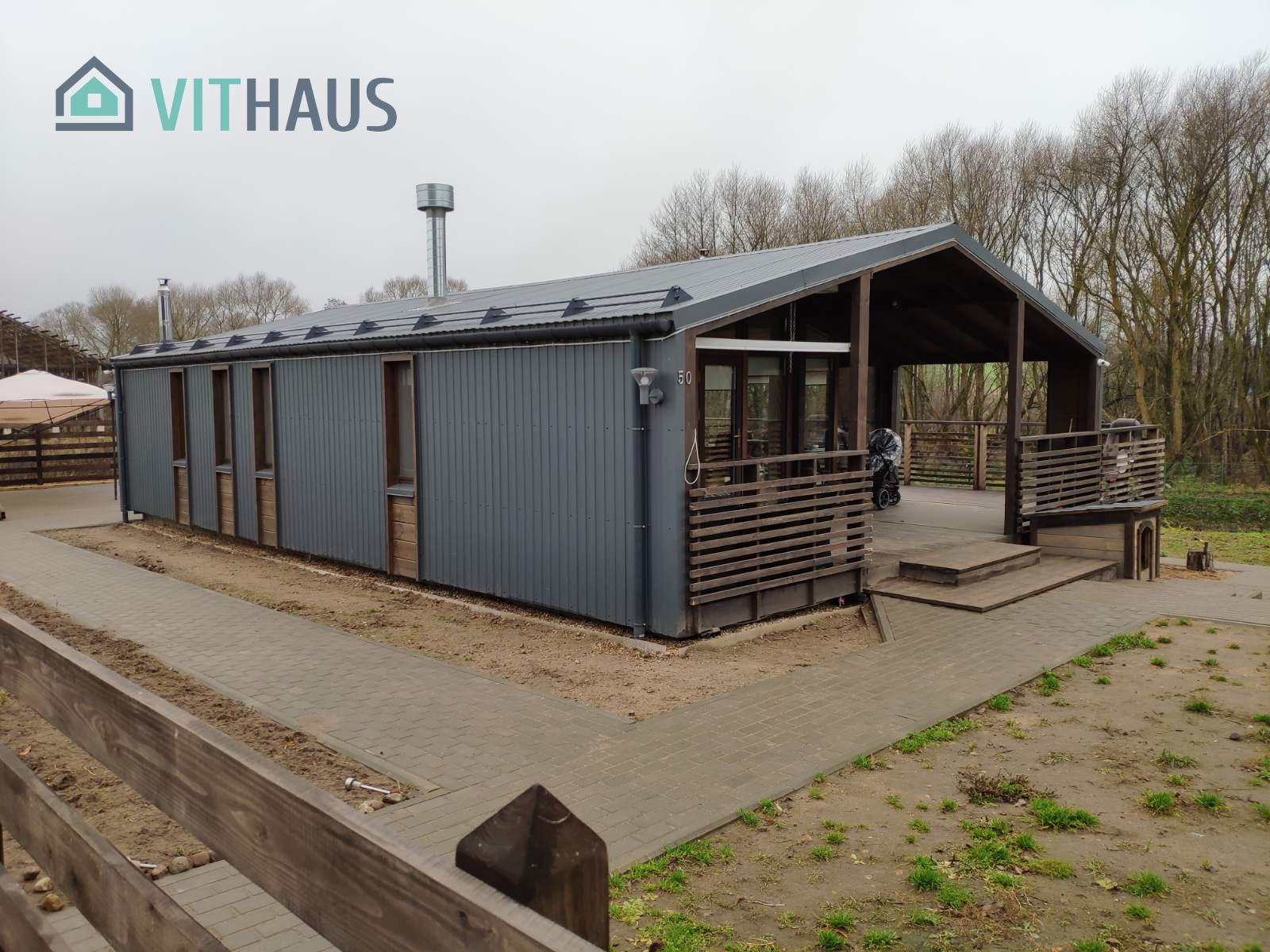

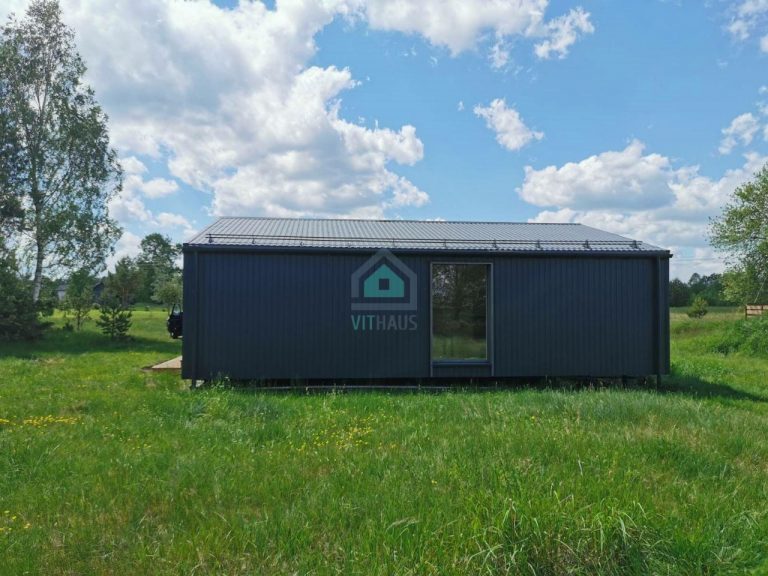

PHOTO:

The principle of having a machine build another machine lies at the heart of modern manufacturing.

VIDEO:

The principle of having a machine build another machine lies at the heart of modern manufacturing.

The complete set of a typical house.

ENERGYEFFICIENCY Type-1 (Option-1/Option-2):

Roof: 307/357 mm = 5,40/6,39 m² K/W, U = 0,1852/0,1565
Walls: 251/301 mm = 4,46/5,44 m² K/W, U = 0,2242/0,1838
Floor: 285 mm = 4,10 m² K/W, U = 0,2370
Windows: wooden profile 78 mm, U = 1,00

1. ROOF PANEL 315 mm:

1. Moisture-resistant plywood, 21 mm
2. Vapor barrier, 1 mm
3. Mineral wool insulation, 200 mm
4. Frame made of kiln-dried planed timber, 200 mm
5. Diffusion membrane, 1 mm
6. Cement-bonded particle board, 12 mm
7. Binding frame made of kiln-dried planed timber, 50 mm

2. EXTERIOR WALL 194 mm:

Panel height: 2610 mm / 3110 mm

Softwood fiberboard, 25 mm
Frame made of kiln-dried planed timber, 150 mm
Mineral wool insulation, 150 mm
Vapor barrier, 1 mm
Oriented strand board (OSB), 12 mm

3. LOAD-BEARING WALL 224 mm:

Panel height: 2610 mm / 3110 mm

1. Oriented strand board (OSB), 12 mm
2. Frame made of LVL timber, 300 mm

4. INTERIOR WALL 124 mm:

Panel height: 2610 mm / 3110 mm
1. Oriented strand board (OSB), 12 mm
2. Frame made of kiln-dried planed timber, 100 mm
3. Mineral wool insulation, 100 mm
4. Oriented strand board (OSB), 12 mm

5. INTER-FLOOR PANEL 235 mm:

1. Moisture-resistant plywood, 21 mm
2. Diffusion membrane, 1 mm
3. Mineral wool insulation, 200 mm
4.. Frame made of kiln-dried planed timber, 200 mm
5. Vapor barrier, 1 mm
6. Oriented strand board (OSB), 12 mm

6. FLOOR PANEL 285 mm:

1. Moisture-resistant plywood, 21 mm
2. Vapor barrier, 1 mm
3. Mineral wool insulation, 200 mm
4. Frame made of kiln-dried planed timber, 200 mm
5. Diffusion membrane, 1 mm
6. Cement-bonded particle board, 12 mm
7. Binding frame made of kiln-dried planed timber, 50 mm

ENERGYEFFICIENCY Type-2 (Option-1/Option-2):

Roof: 407/457 mm = 7.30/8.30 m2 K/W, U = 0.1370/0.1255
Walls: 301/351 mm = 5.40/6.39 m2 K/W, U = 0.1852/0.1565
Floor: 386 mm = 5.98 m2 K/W, U = 0.1672
Windows: profile 78 mm, U = 1.00

1. ROOF PANEL 415 mm:

1. Moisture-resistant plywood, 21 mm
2. Batten made of kiln-dried planed timber, 50 mm
3. Softwood fiberboard, 25 mm
4. Mineral wool insulation, 300 mm
5. Frame made of LVL timber, 300 mm
6. Vapor barrier, 1 mm
7. Oriented strand board (OSB), 18 mm

2. EXTERIOR WALL 244 mm:

Panel height: 2610 mm / 3110 mm

Softwood fiberboard, 25 mm
Frame made of kiln-dried planed timber, 200 mm
Mineral wool insulation, 200 mm
Vapor barrier, 1 mm
Oriented strand board (OSB), 12 mm

3. LOAD-BEARING WALL 224 mm:

Panel height: 2610 mm / 3110 mm

1. Oriented strand board (OSB), 12 mm
2. Frame made of LVL timber, 300 mm

4. INTERIOR WALL 124 mm:

Panel height: 2610 mm / 3110 mm
1. Oriented strand board (OSB), 12 mm
2. Frame made of kiln-dried planed timber, 100 mm
3. Mineral wool insulation, 100 mm
4. Oriented strand board (OSB), 12 mm

5. INTER-FLOOR PANEL 335 mm:

1. Moisture-resistant plywood, 21 mm
2. Diffusion membrane, 1 mm
3. Mineral wool insulation, 300 mm
4. Frame made of LVL timber, 300 mm
5. Vapor barrier, 1 mm
6. Oriented strand board (OSB), 12 mm

6. FLOOR PANEL 385 mm:

1. Moisture-resistant plywood, 21 mm
2. Vapor barrier, 1 mm
3. Frame made of LVL timber, 300 mm
4. Mineral wool insulation, 300 mm
5. Diffusion membrane, 1 mm
6. Cement-bonded particle board, 12 mm
7. Binding frame made of kiln-dried planed timber, 50 mm

5. Windows and entrance doors:

Option-1: PVC, 78 mm profile, 2 sealing contours.
Option 2: Wooden, 78 mm frame, 2 sealing contours.
Double-glazed windows filled with argon – 44 mm.
The formula of double-glazed windows: 4ix16Arx4x16Arx4i. U = 1,00.
Factory lamination or painting, graphite grey RAL 7024.
Hidden fittings Siegenia Titin AF.
The doors have reinforced hinges and a mortise lock.
Stained glass: Reinforced double-glazed windows, filled with argon, tempered glass- 44 mm.
The formula of double-glazed windows in stained glass: 6i×14Ar×4×14Ar×6i. U = 1,00.

6. Bathroom equipment:

Sink tap: Grohe BauEdge, chrom.
Bathroom sink: A furniture washbasin Kolo, complete with a hanging pedestal.
The toilet is suspended:
Toilet bowl installation Geberit Duofix Plattenbau.
The key Geberit Delta-21 with a double flush.
The toilet is suspended Kolo Novo Pro (Rimfree), microlift seat, color white.
Shower tap: Thermostatic Grohe Grohtherm 800, chrome, complete with shower set Grohe New Tempesta Cosmopolitan 100.
Shower/Bath:
Option-1 – glazed shower, 900×900 mm;
Option 2 – acrylic bathtub Kolo Comfort XWP3070000, 750×1700 mm.
Water heater: accumulative for 100 liters – The customer buys independently due to the regional warranty.
Communications for the washing machine: cold water, sewer, outlet.

7. Kitchen:

Kitchen equipment:
ready–made communications – cold and hot water outlets; sewerage for the sink and dishwasher;
electrical cable for connecting the hob and oven;
sockets for the refrigerator and other household appliances.

Additional expenses:

installation of the foundation at the facility;
delivery from the seller’s warehouse to the facility;
logistics to the installation site and accommodation for installers;
installation on site;
rent a 25-ton crane for installation work.
Optionally, additional manufacturing is possible: porches, canopies over the porch, stairs, terraces, verandas, veranda fencing, shutters.

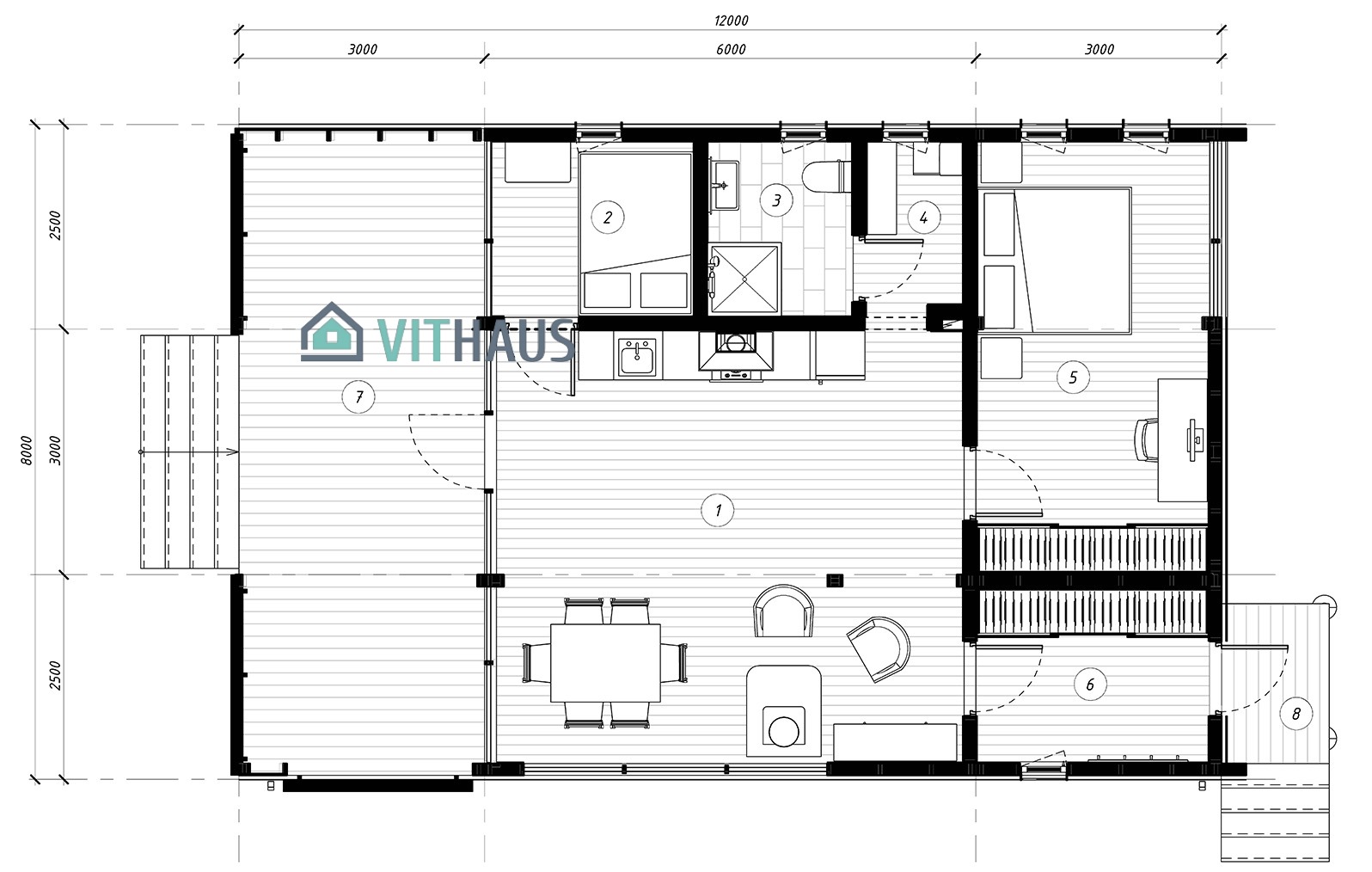

PLAN:

The principle of having a machine build another machine lies at the heart of modern manufacturing.

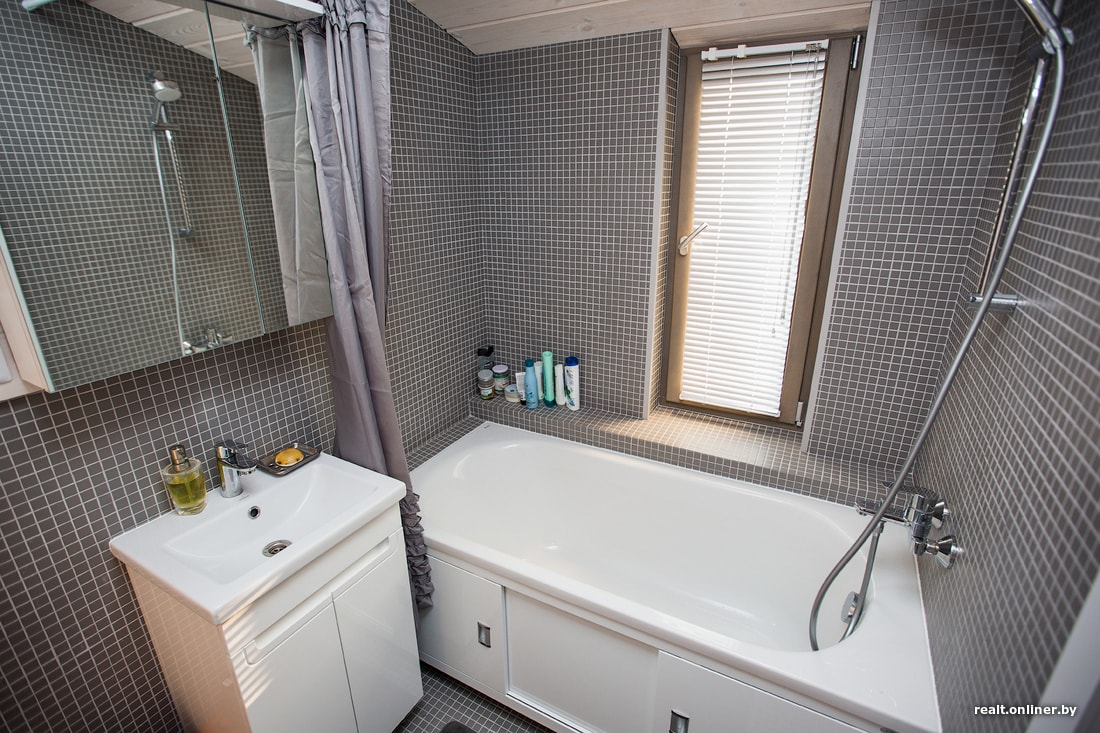

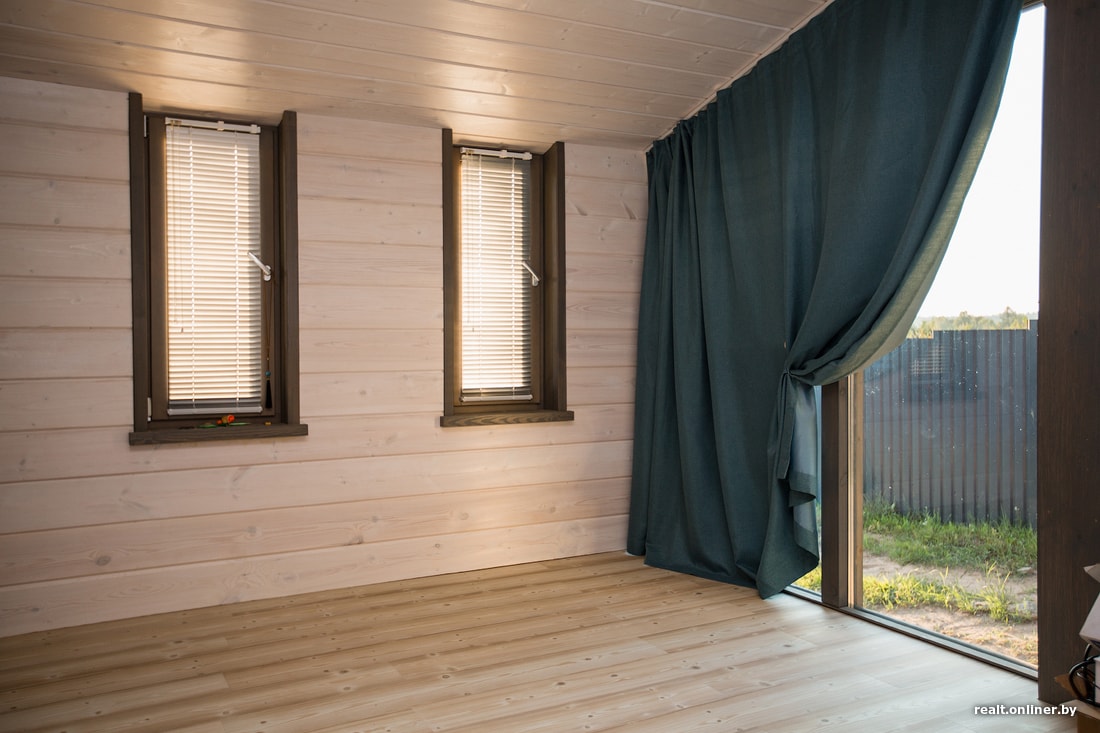

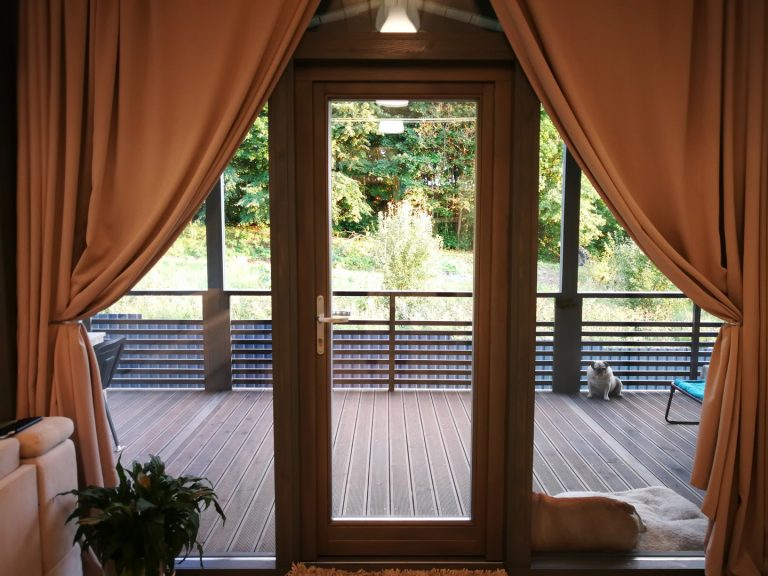

INTERIOR:

The principle of having a machine build another machine lies at the heart of modern manufacturing.

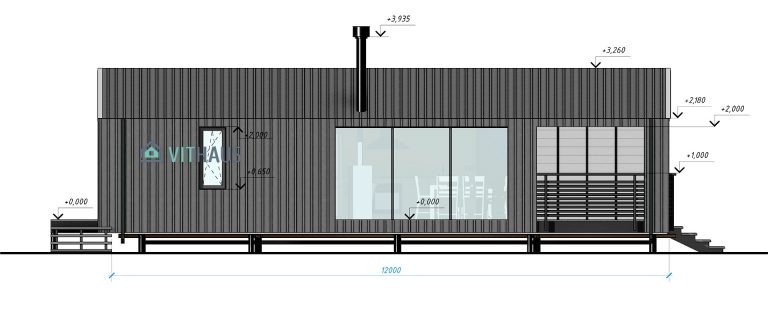

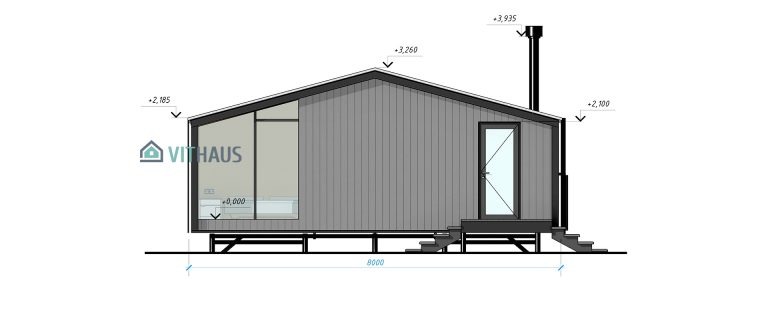

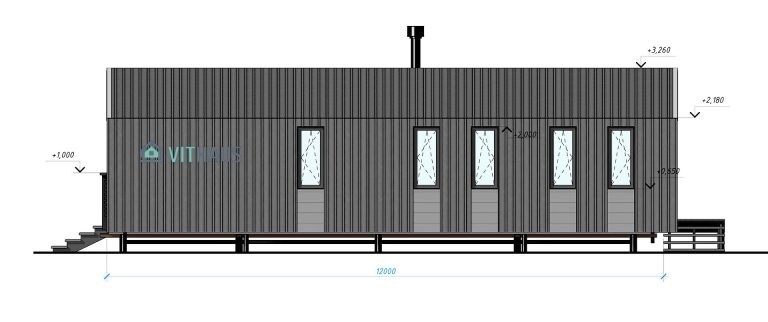

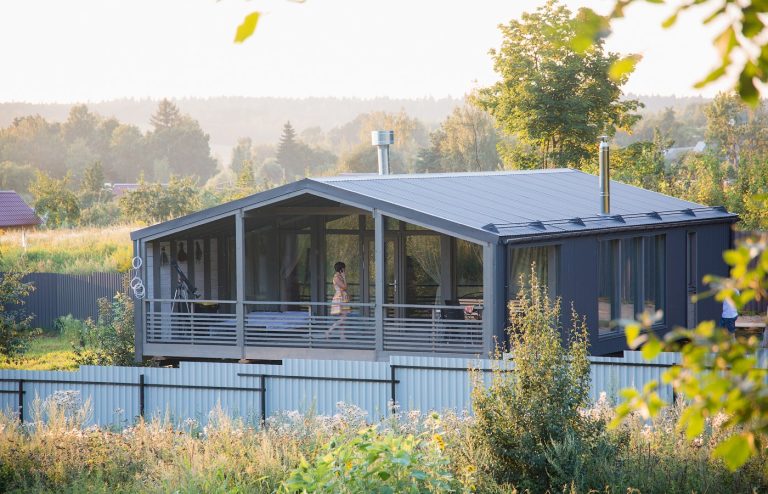

FACADE:

The principle of having a machine build another machine lies at the heart of modern manufacturing.

3D HOUSE FLYOVER 360°:

Examine the house from all angles and appreciate every detail.
