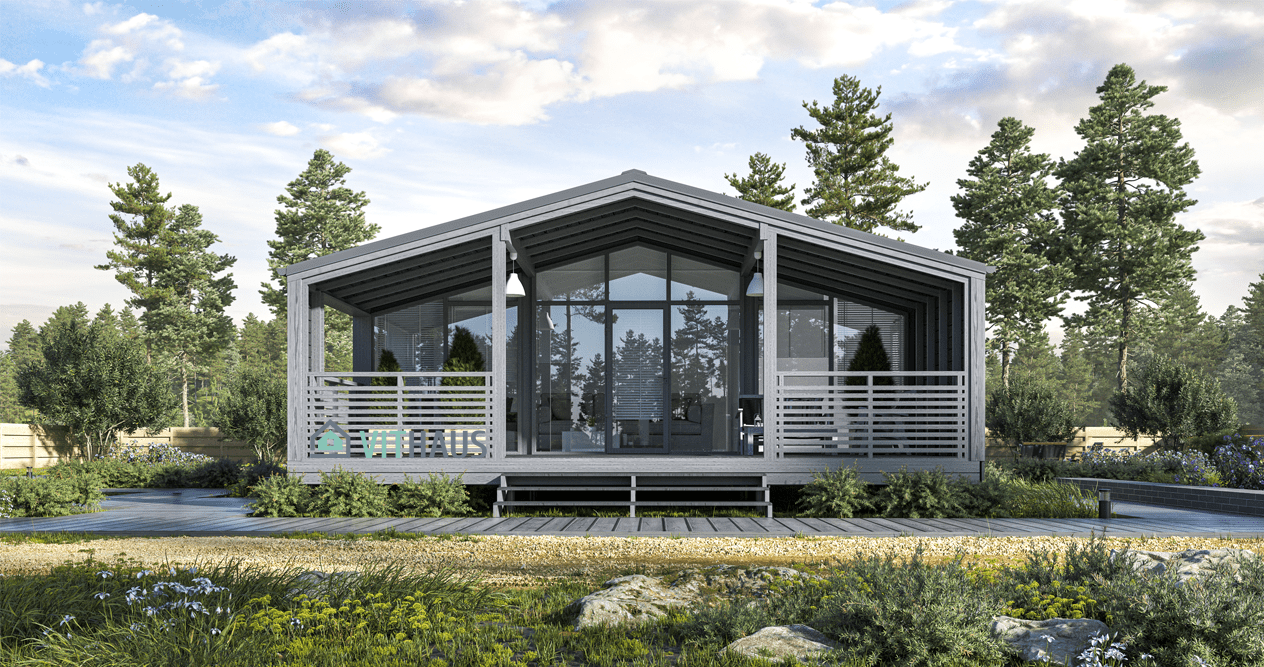

Typical modular house.

Dublhaus 87 is designed for people who appreciate every corner of a private house. The useful area of the house of 87 m2 compactly places everything necessary for comfortable living of a standard family of up to 4 people. 2 bedrooms, a separate entrance hall, a large bathroom, a kitchen, a bright living room with stained glass and a huge veranda will satisfy the needs of any family. In various versions of the layouts the hallway is provided from different sides of the house.

DUBLHAUS 87

BUILDING AREA (with ground terrace): 131.40 m²

USEFUL AREA: 82.40 m²

DIMENSIONS (HxWxL): 3.06×7.86×16.72 m

CEILING HEIGHT: 2.18-3.12 m

VERANDA USEFUL AREA: 23.70 m²

ROOMS:4

PERIOD OF DELIVERY: 6 months

*Cost excluding VAT

PRICE: 180 109 €

CALCULATE TOTAL COST

Download the catalog

The complete set of a typical house.

ENERGYEFFICIENCY Type-1 (Option-1/Option-2):

Roof: 307/357 mm = 5,40/6,39 m² K/W, U = 0,1852/0,1565
Walls: 251/301 mm = 4,46/5,44 m² K/W, U = 0,2242/0,1838
Floor: 285 mm = 4,10 m² K/W, U = 0,2370
Windows: wooden profile 78 mm, U = 1,00

1. ROOF PANEL 315 mm:

1. Moisture-resistant plywood, 21 mm
2. Vapor barrier, 1 mm
3. Mineral wool insulation, 200 mm
4. Frame made of kiln-dried planed timber, 200 mm
5. Diffusion membrane, 1 mm
6. Cement-bonded particle board, 12 mm
7. Binding frame made of kiln-dried planed timber, 50 mm

2. EXTERIOR WALL 194 mm:

Panel height: 2610 mm / 3110 mm

Softwood fiberboard, 25 mm
Frame made of kiln-dried planed timber, 150 mm
Mineral wool insulation, 150 mm
Vapor barrier, 1 mm
Oriented strand board (OSB), 12 mm

3. LOAD-BEARING WALL 224 mm:

Panel height: 2610 mm / 3110 mm

1. Oriented strand board (OSB), 12 mm
2. Frame made of LVL timber, 300 mm

4. INTERIOR WALL 124 mm:

Panel height: 2610 mm / 3110 mm
1. Oriented strand board (OSB), 12 mm
2. Frame made of kiln-dried planed timber, 100 mm
3. Mineral wool insulation, 100 mm
4. Oriented strand board (OSB), 12 mm

5. INTER-FLOOR PANEL 235 mm:

1. Moisture-resistant plywood, 21 mm
2. Diffusion membrane, 1 mm
3. Mineral wool insulation, 200 mm
4.. Frame made of kiln-dried planed timber, 200 mm
5. Vapor barrier, 1 mm
6. Oriented strand board (OSB), 12 mm

6. FLOOR PANEL 285 mm:

1. Moisture-resistant plywood, 21 mm
2. Vapor barrier, 1 mm
3. Mineral wool insulation, 200 mm
4. Frame made of kiln-dried planed timber, 200 mm
5. Diffusion membrane, 1 mm
6. Cement-bonded particle board, 12 mm
7. Binding frame made of kiln-dried planed timber, 50 mm

ENERGYEFFICIENCY Type-2 (Option-1/Option-2):

Roof: 407/457 mm = 7.30/8.30 m2 K/W, U = 0.1370/0.1255
Walls: 301/351 mm = 5.40/6.39 m2 K/W, U = 0.1852/0.1565
Floor: 386 mm = 5.98 m2 K/W, U = 0.1672
Windows: profile 78 mm, U = 1.00

1. ROOF PANEL 415 mm:

1. Moisture-resistant plywood, 21 mm
2. Batten made of kiln-dried planed timber, 50 mm
3. Softwood fiberboard, 25 mm
4. Mineral wool insulation, 300 mm
5. Frame made of LVL timber, 300 mm
6. Vapor barrier, 1 mm
7. Oriented strand board (OSB), 18 mm

2. EXTERIOR WALL 244 mm:

Panel height: 2610 mm / 3110 mm

Softwood fiberboard, 25 mm
Frame made of kiln-dried planed timber, 200 mm
Mineral wool insulation, 200 mm
Vapor barrier, 1 mm
Oriented strand board (OSB), 12 mm

3. LOAD-BEARING WALL 224 mm:

Panel height: 2610 mm / 3110 mm

1. Oriented strand board (OSB), 12 mm
2. Frame made of LVL timber, 300 mm

4. INTERIOR WALL 124 mm:

Panel height: 2610 mm / 3110 mm
1. Oriented strand board (OSB), 12 mm
2. Frame made of kiln-dried planed timber, 100 mm
3. Mineral wool insulation, 100 mm
4. Oriented strand board (OSB), 12 mm

5. INTER-FLOOR PANEL 335 mm:

1. Moisture-resistant plywood, 21 mm
2. Diffusion membrane, 1 mm
3. Mineral wool insulation, 300 mm
4. Frame made of LVL timber, 300 mm
5. Vapor barrier, 1 mm
6. Oriented strand board (OSB), 12 mm

6. FLOOR PANEL 385 mm:

1. Moisture-resistant plywood, 21 mm
2. Vapor barrier, 1 mm
3. Frame made of LVL timber, 300 mm
4. Mineral wool insulation, 300 mm
5. Diffusion membrane, 1 mm
6. Cement-bonded particle board, 12 mm
7. Binding frame made of kiln-dried planed timber, 50 mm

5. Windows and entrance doors:

Option-1: PVC, 78 mm profile, 2 sealing contours.
Option 2: Wooden, 78 mm frame, 2 sealing contours.
Double-glazed windows filled with argon – 44 mm.
The formula of double-glazed windows: 4ix16Arx4x16Arx4i. U = 1,00.
Factory lamination or painting, graphite grey RAL 7024.
Hidden fittings Siegenia Titin AF.
The doors have reinforced hinges and a mortise lock.
Stained glass: Reinforced double-glazed windows, filled with argon, tempered glass- 44 mm.
The formula of double-glazed windows in stained glass: 6i×14Ar×4×14Ar×6i. U = 1,00.

6. Bathroom equipment:

Sink tap: Grohe BauEdge, chrom.
Bathroom sink: A furniture washbasin Kolo, complete with a hanging pedestal.
The toilet is suspended:
Toilet bowl installation Geberit Duofix Plattenbau.
The key Geberit Delta-21 with a double flush.
The toilet is suspended Kolo Novo Pro (Rimfree), microlift seat, color white.
Shower tap: Thermostatic Grohe Grohtherm 800, chrome, complete with shower set Grohe New Tempesta Cosmopolitan 100.
Shower/Bath:
Option-1 – glazed shower, 900×900 mm;
Option 2 – acrylic bathtub Kolo Comfort XWP3070000, 750×1700 mm.
Water heater: accumulative for 100 liters – The customer buys independently due to the regional warranty.
Communications for the washing machine: cold water, sewer, outlet.

7. Kitchen:

Kitchen equipment:
ready–made communications – cold and hot water outlets; sewerage for the sink and dishwasher;
electrical cable for connecting the hob and oven;
sockets for the refrigerator and other household appliances.

Additional expenses:

installation of the foundation at the facility;
delivery from the seller’s warehouse to the facility;
logistics to the installation site and accommodation for installers;
installation on site;
rent a 25-ton crane for installation work.
Optionally, additional manufacturing is possible: porches, canopies over the porch, stairs, terraces, verandas, veranda fencing, shutters.

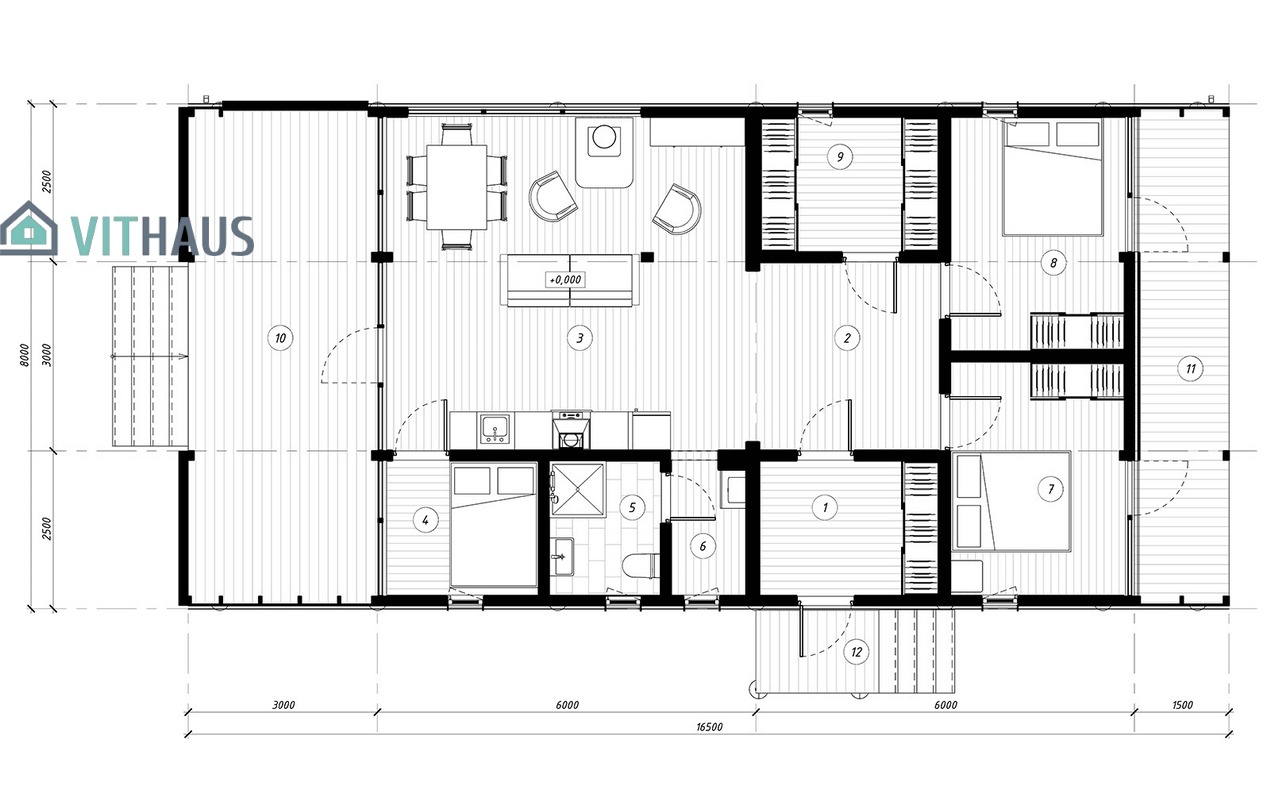

PLAN:

The principle of having a machine build another machine lies at the heart of modern manufacturing.

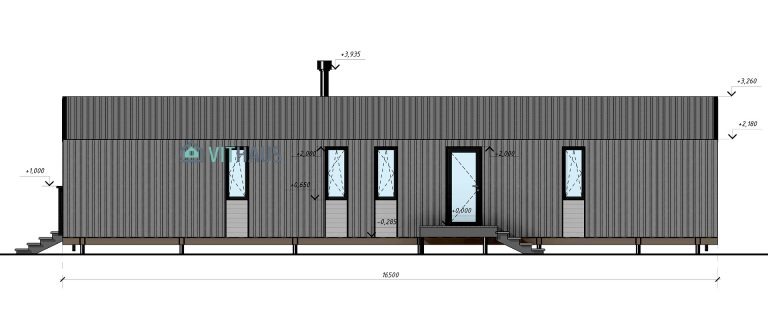

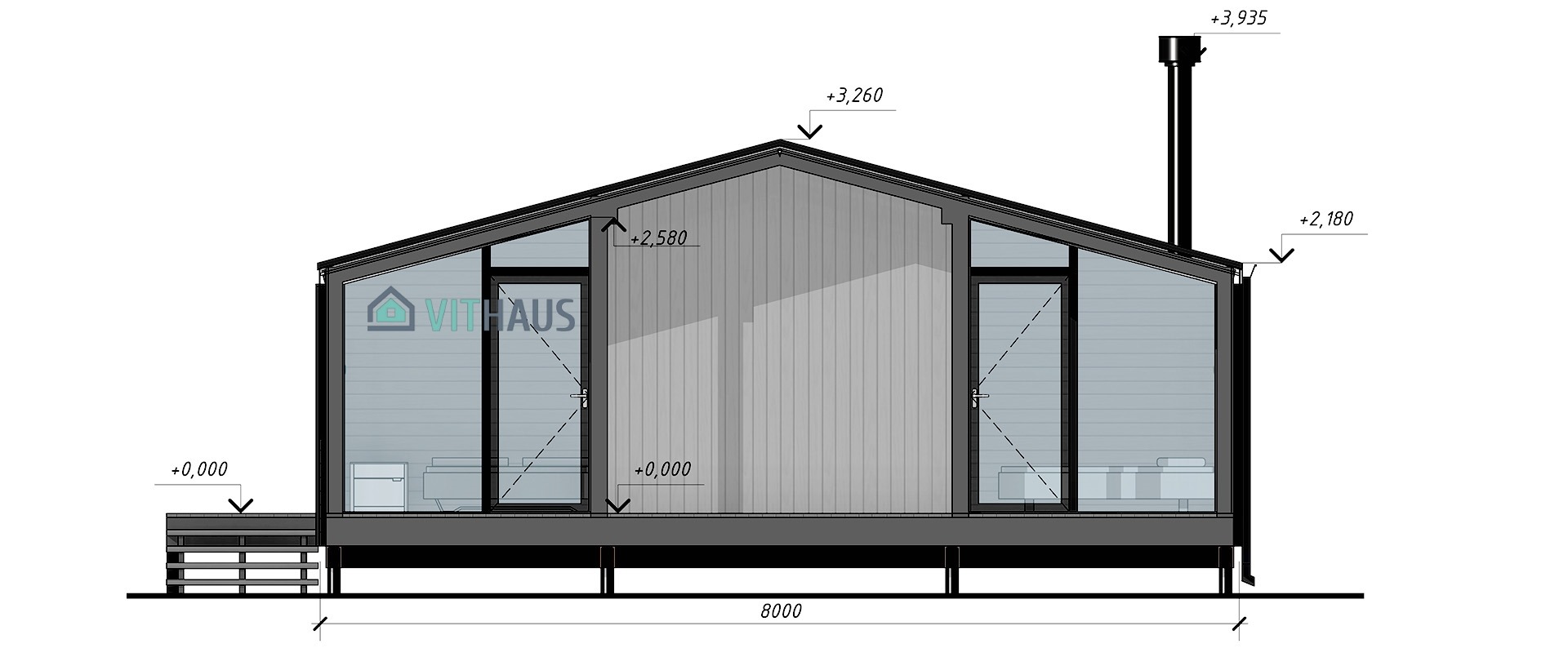

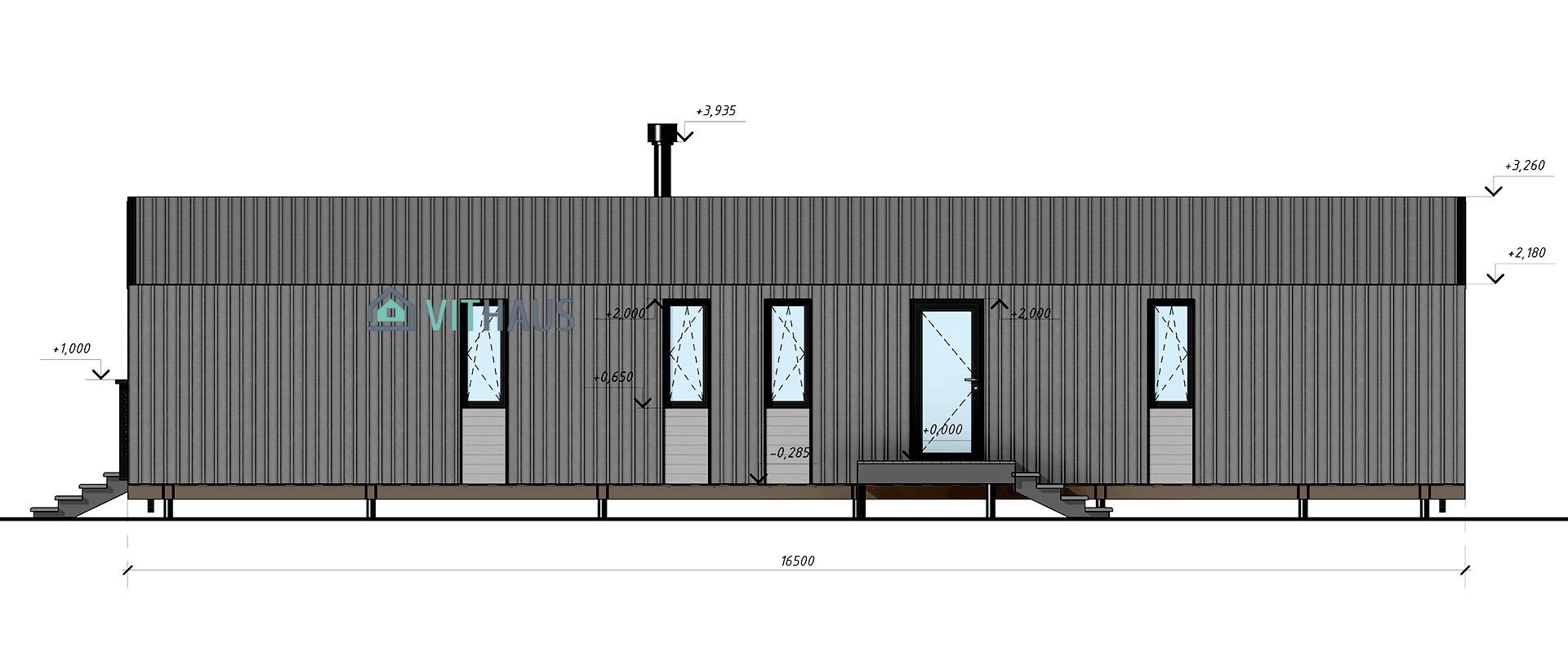

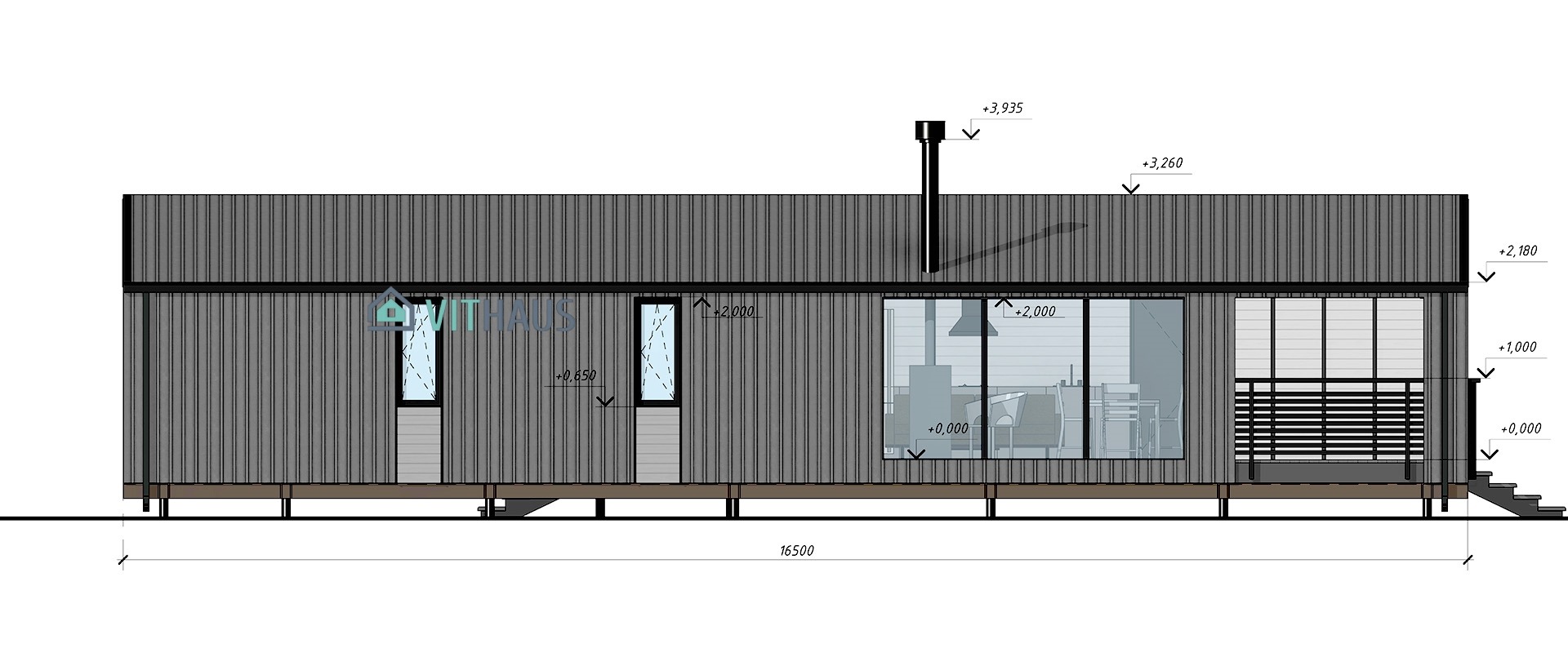

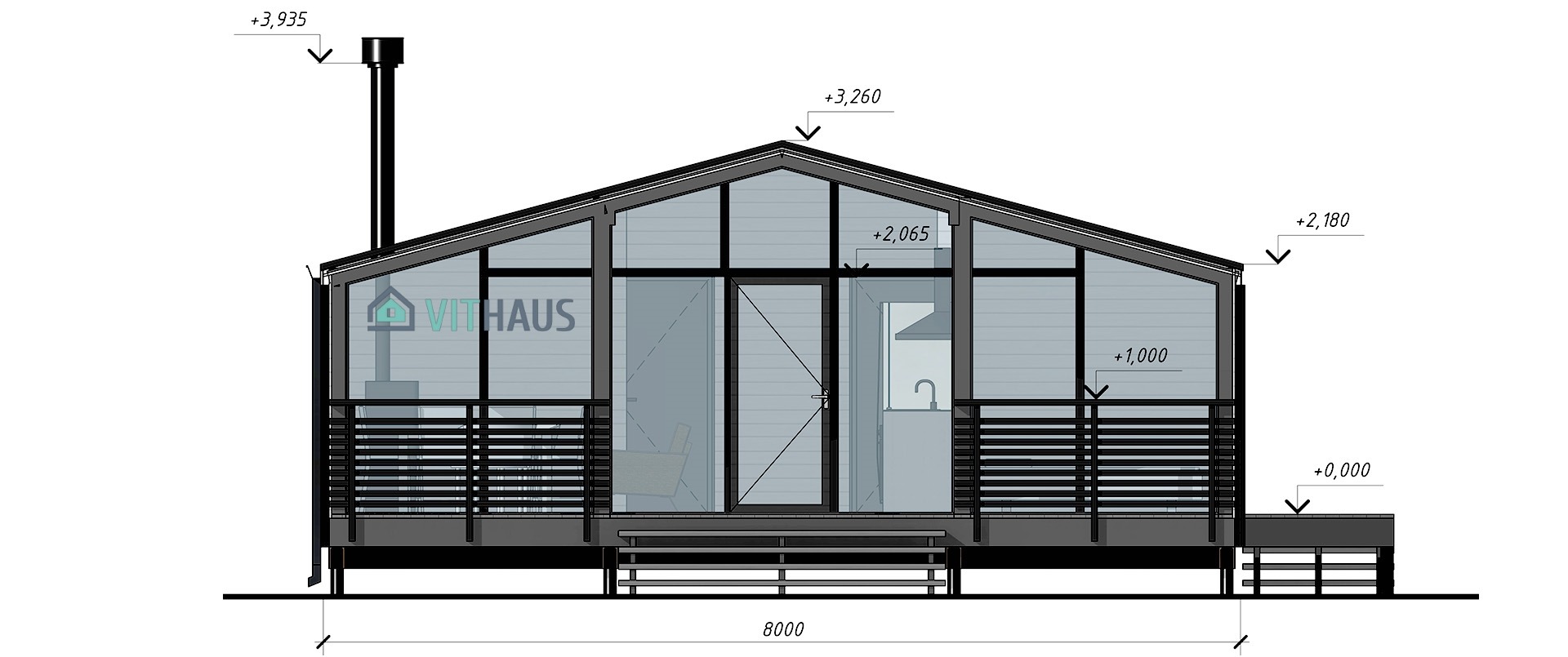

FACADE:

The principle of having a machine build another machine lies at the heart of modern manufacturing.

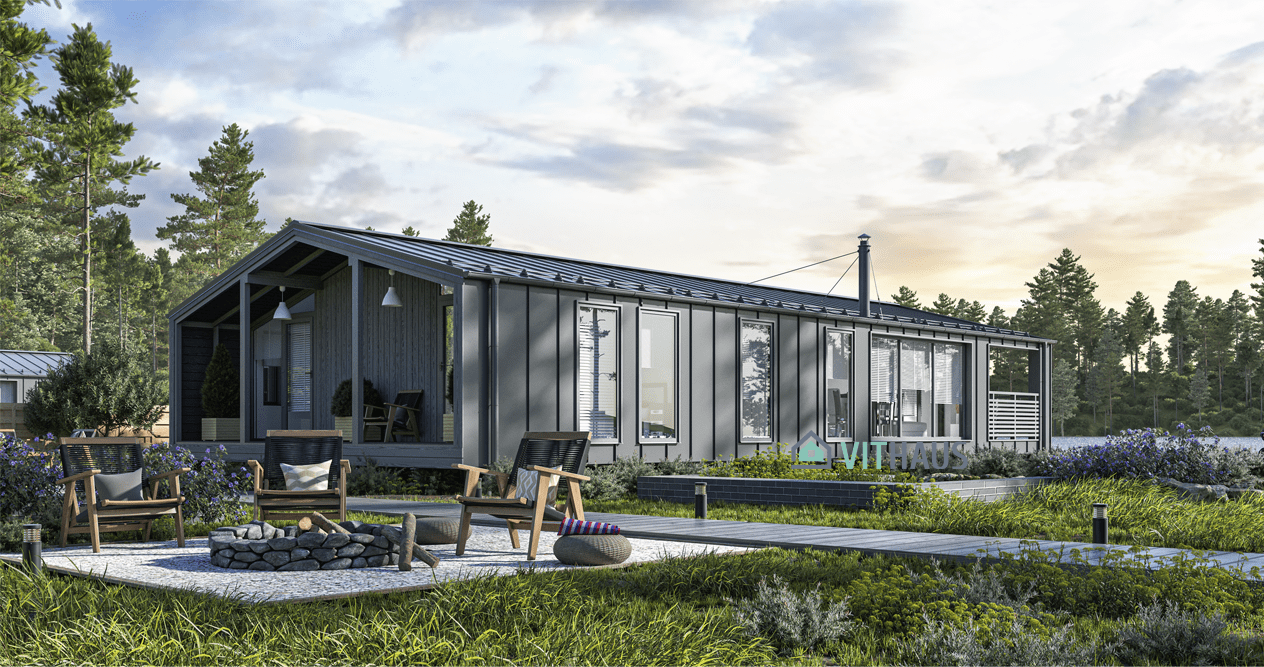

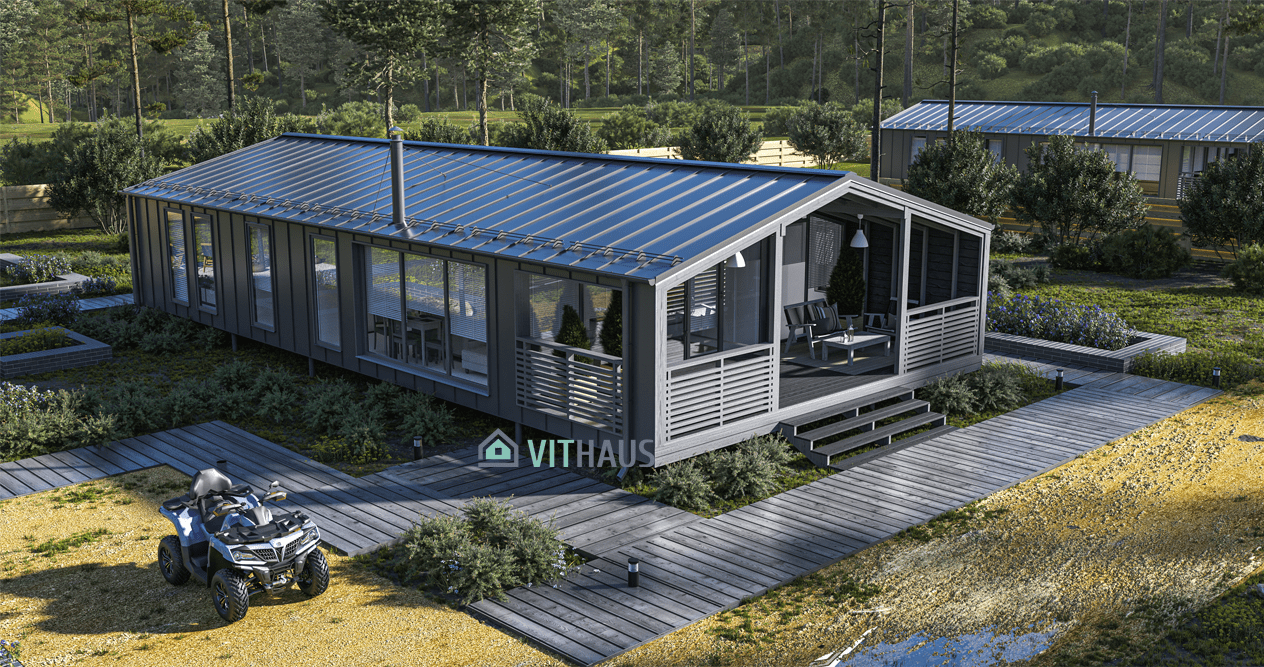

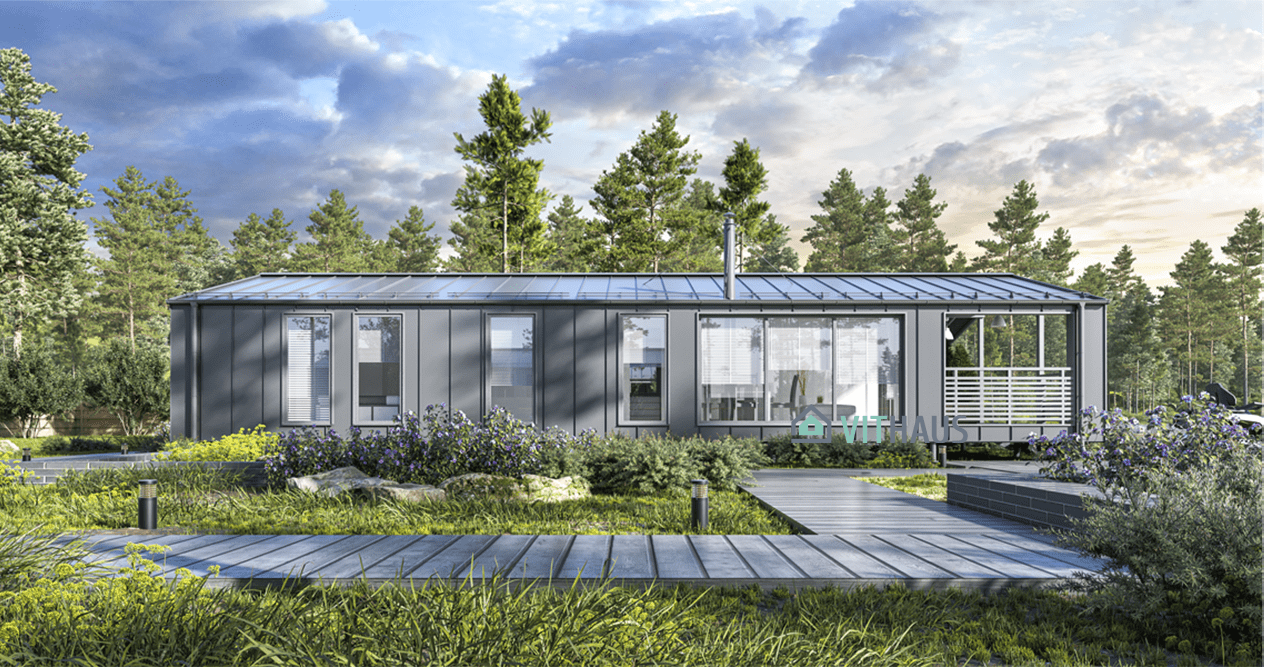

3D HOUSE FLYOVER 360°:

Examine the house from all angles and appreciate every detail.
