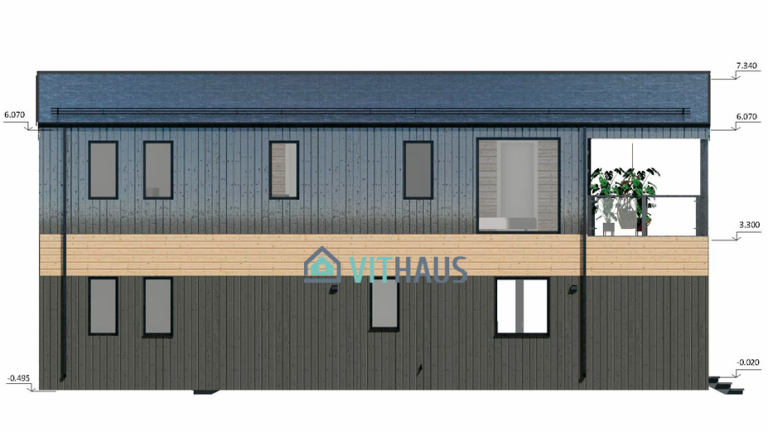

KOSHAUS-106-2L is a house in which everyone has their own comfort zone. As many as 5 bedrooms in this house with a total area of almost 200 m2. But this is not all the bonuses of this wonderful KOSHAUS-106-2L, because 200 m2 for living will take only 150 m2 on the plot.
The ground floor of the house has a living room, dining room, kitchen, bathroom, two bedrooms, hallway and terrace. Such a successful layout may already be a full place for life, but it is a two-storey house and on the second floor there are 3 bedrooms, 2 bathrooms, a study, a relaxation area and a wonderful balcony.
If you are looking for a large family house project – pay attention to our two-storey KOSHAUS-106-2L. We will be glad to offer it to you and answer questions about the project and construction.
*Cost excluding VAT
PRICE: €
Roof: 307/357 mm = 5,40/6,39 m² K/W, U = 0,1852/0,1565
Walls: 251/301 mm = 4,46/5,44 m² K/W, U = 0,2242/0,1838
Floor: 285 mm = 4,10 m² K/W, U = 0,2370
Windows: wooden profile 78 mm, U = 1,00
1. Moisture-resistant plywood, 21 mm
2. Vapor barrier, 1 mm
3. Mineral wool insulation, 200 mm
4. Frame made of kiln-dried planed timber, 200 mm
5. Diffusion membrane, 1 mm
6. Cement-bonded particle board, 12 mm
7. Binding frame made of kiln-dried planed timber, 50 mm
Panel height: 2610 mm / 3110 mm
Panel height: 2610 mm / 3110 mm
1. Oriented strand board (OSB), 12 mm
2. Frame made of LVL timber, 300 mm
Panel height: 2610 mm / 3110 mm
1. Oriented strand board (OSB), 12 mm
2. Frame made of kiln-dried planed timber, 100 mm
3. Mineral wool insulation, 100 mm
4. Oriented strand board (OSB), 12 mm
1. Moisture-resistant plywood, 21 mm
2. Diffusion membrane, 1 mm
3. Mineral wool insulation, 200 mm
4.. Frame made of kiln-dried planed timber, 200 mm
5. Vapor barrier, 1 mm
6. Oriented strand board (OSB), 12 mm
1. Moisture-resistant plywood, 21 mm
2. Vapor barrier, 1 mm
3. Mineral wool insulation, 200 mm
4. Frame made of kiln-dried planed timber, 200 mm
5. Diffusion membrane, 1 mm
6. Cement-bonded particle board, 12 mm
7. Binding frame made of kiln-dried planed timber, 50 mm
Roof: 407/457 mm = 7.30/8.30 m2 K/W, U = 0.1370/0.1255
Walls: 301/351 mm = 5.40/6.39 m2 K/W, U = 0.1852/0.1565
Floor: 386 mm = 5.98 m2 K/W, U = 0.1672
Windows: profile 78 mm, U = 1.00
1. Moisture-resistant plywood, 21 mm
2. Batten made of kiln-dried planed timber, 50 mm
3. Softwood fiberboard, 25 mm
4. Mineral wool insulation, 300 mm
5. Frame made of LVL timber, 300 mm
6. Vapor barrier, 1 mm
7. Oriented strand board (OSB), 18 mm
Panel height: 2610 mm / 3110 mm
Panel height: 2610 mm / 3110 mm
1. Oriented strand board (OSB), 12 mm
2. Frame made of LVL timber, 300 mm
Panel height: 2610 mm / 3110 mm
1. Oriented strand board (OSB), 12 mm
2. Frame made of kiln-dried planed timber, 100 mm
3. Mineral wool insulation, 100 mm
4. Oriented strand board (OSB), 12 mm
1. Moisture-resistant plywood, 21 mm
2. Diffusion membrane, 1 mm
3. Mineral wool insulation, 300 mm
4. Frame made of LVL timber, 300 mm
5. Vapor barrier, 1 mm
6. Oriented strand board (OSB), 12 mm
1. Moisture-resistant plywood, 21 mm
2. Vapor barrier, 1 mm
3. Frame made of LVL timber, 300 mm
4. Mineral wool insulation, 300 mm
5. Diffusion membrane, 1 mm
6. Cement-bonded particle board, 12 mm
7. Binding frame made of kiln-dried planed timber, 50 mm
Option-1: PVC, 78 mm profile, 2 sealing contours.
Option 2: Wooden, 78 mm frame, 2 sealing contours.
Kitchen equipment:
Optionally, additional manufacturing is possible: porches, canopies over the porch, stairs, terraces, verandas, veranda fencing, shutters.
