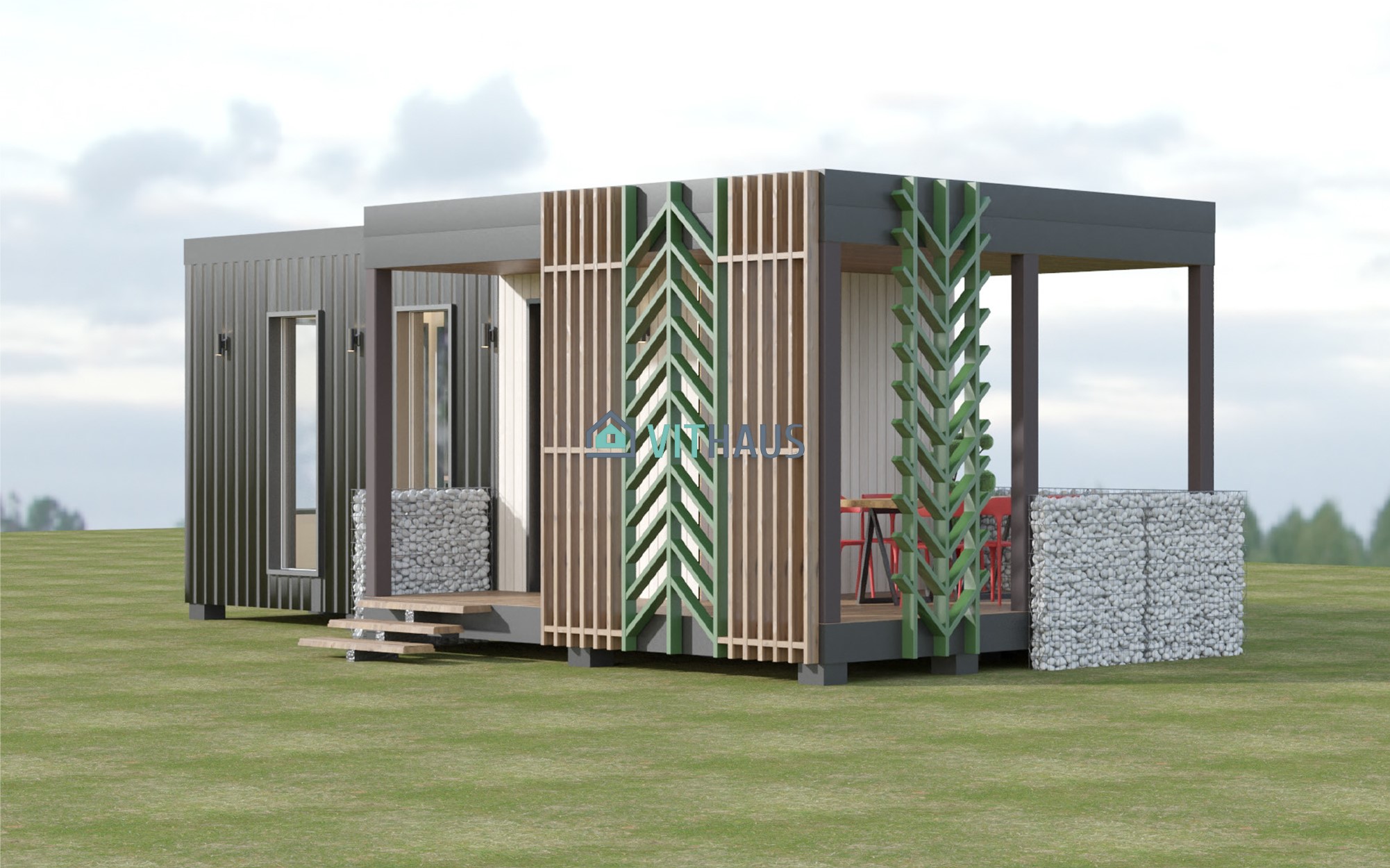

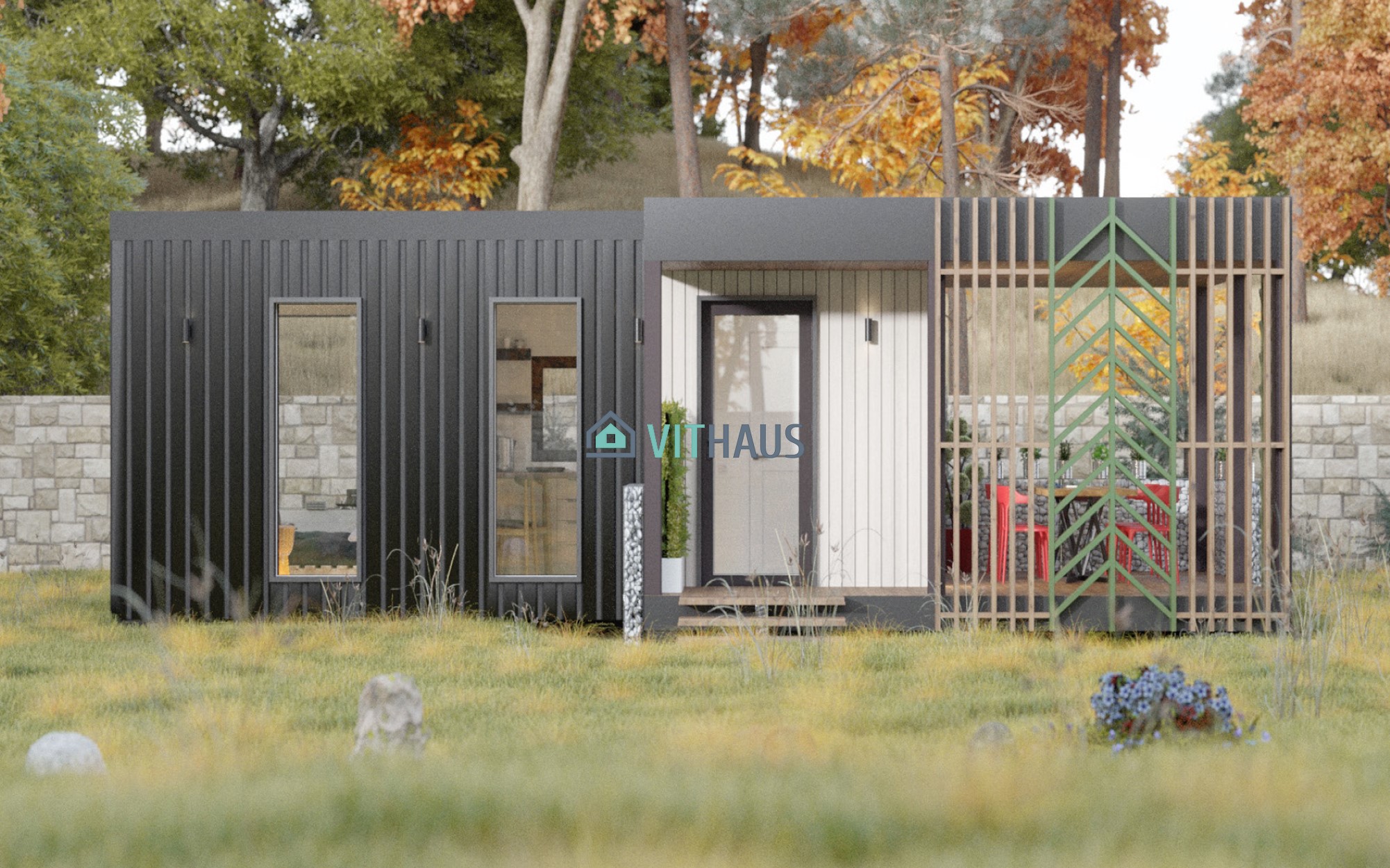

CUBEHAUS 16

Roof: 379 mm = 6,79 m² K/W, U = 0,147
Walls: 309 mm = 5,25m² K/W, U = 0,190
Floor: 294 mm = 5,08 m² K/W, U = 0,197
Windows: wooden profile 78 mm, U = 1,00

1. Roofing covering: PVC membrane sheets (panels for roofs), color – graphite gray RAL 7024, matte – 20 mm.
2. Reinforced frame: antiseptic planed bar, pine –45×195/145 mm.
3. Internal insulation of a frame: vapour barrier film – 1 mm.
4. Condensation protection: diffusion membrane for roofing 180 g/m2 – 1 mm.
5. Thermal insulation: stone wool 30-35 kg/m3 – 200 mm.
6. Internal surfaces (ceilings): natural wooden – pine cladding, coating – SIKKENS, color – white, – 20×145 mm
7.

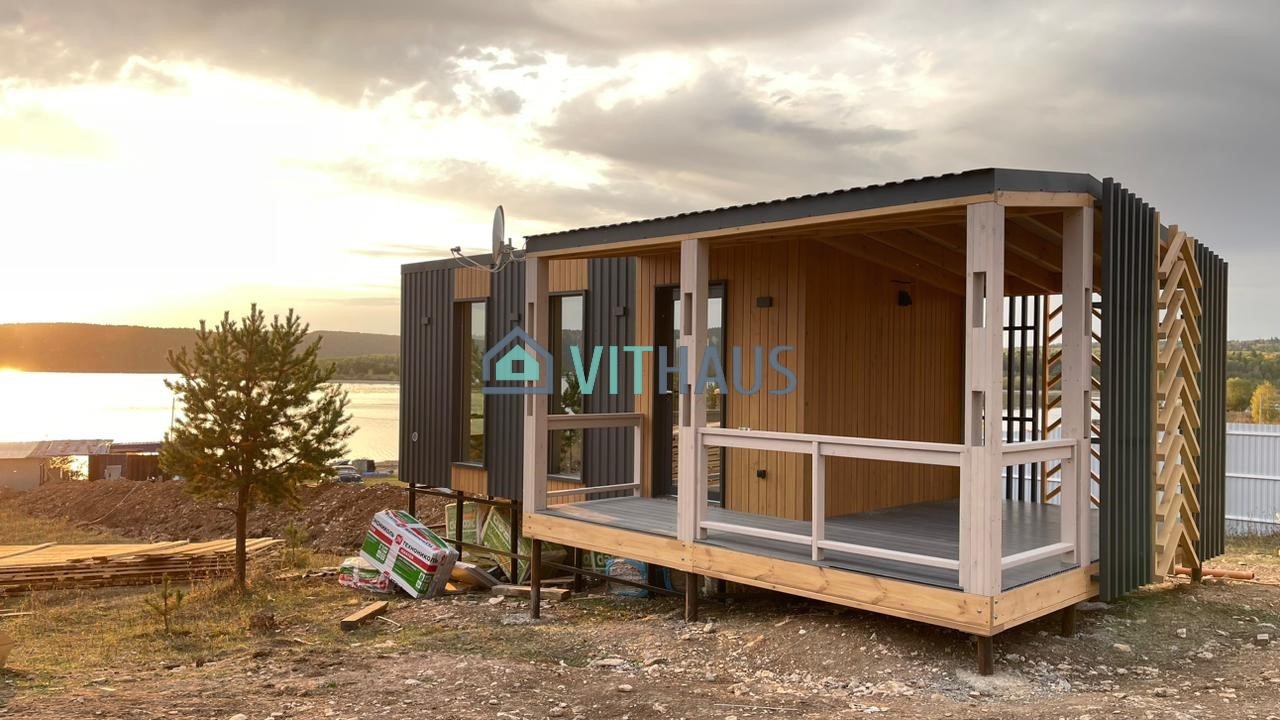

1. Side facade along the roof slope: profiled sheet, color RAL 7024 (graphite), larch board, coated with Teknos oil.
2. Reinforced frame: antiseptic planed bar, pine –45×195/145 mm.
3. Internal insulation of a frame: vapour barrier film – 1 mm.
4. Condensation protection: diffusion membrane for roofing 180 g/m2 – 1 mm.
5. Thermal insulation: stone wool 30-35 kg/m3 – 150 mm.
6. Internal finishing:
   – imitation of timber grade AB, thickness 18 mm, painted with white Teknos water-based oil).



7.

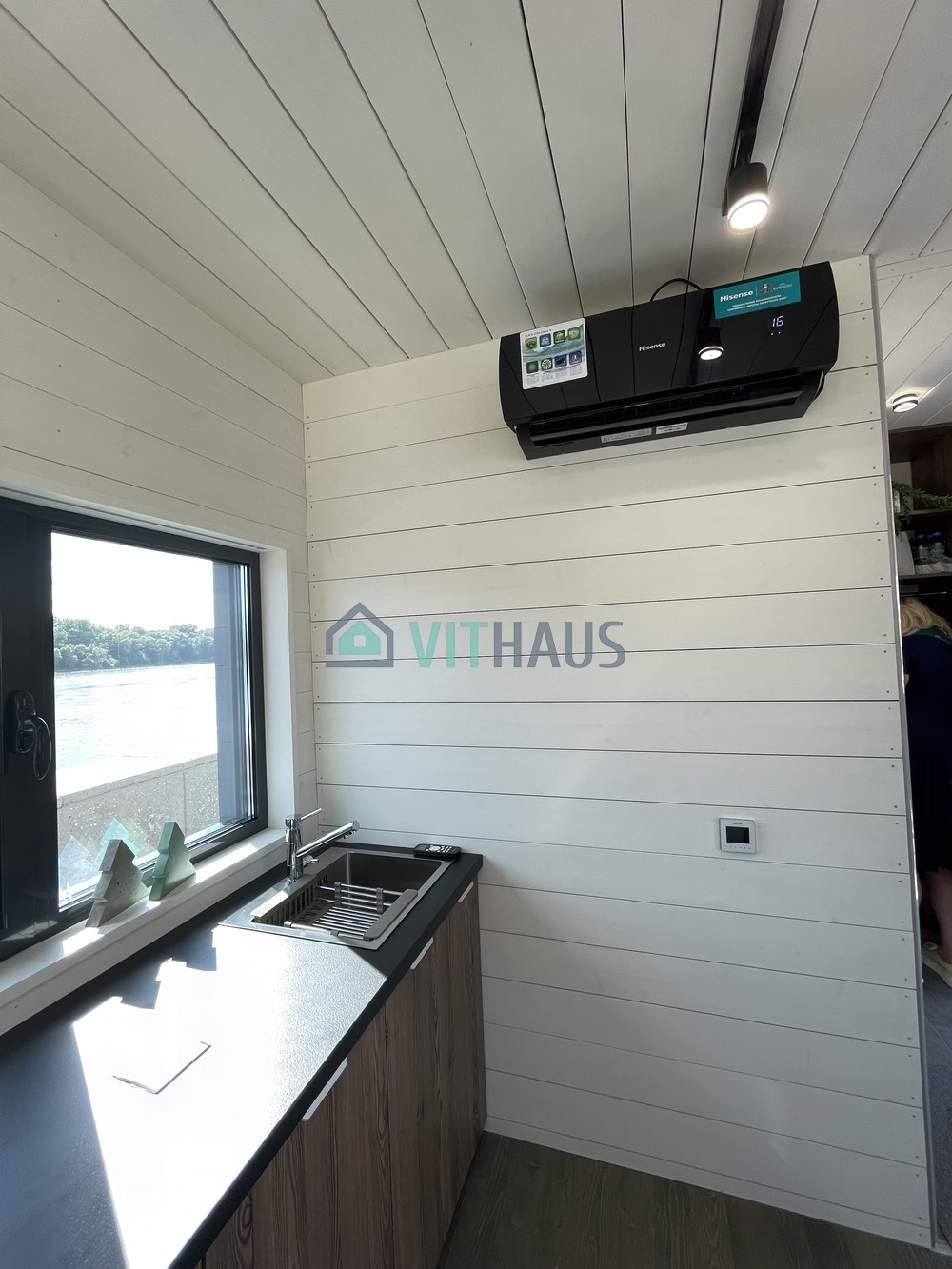

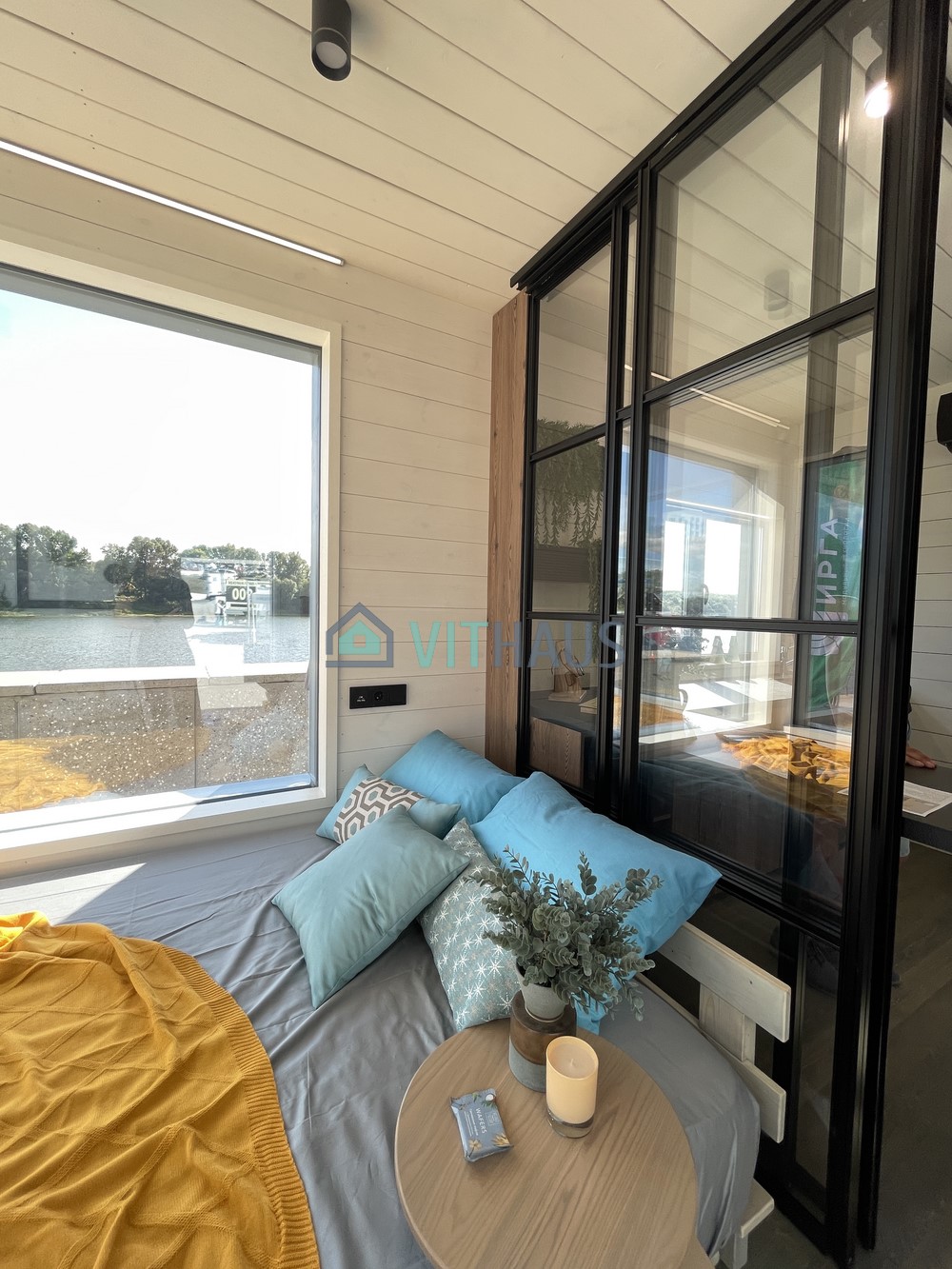

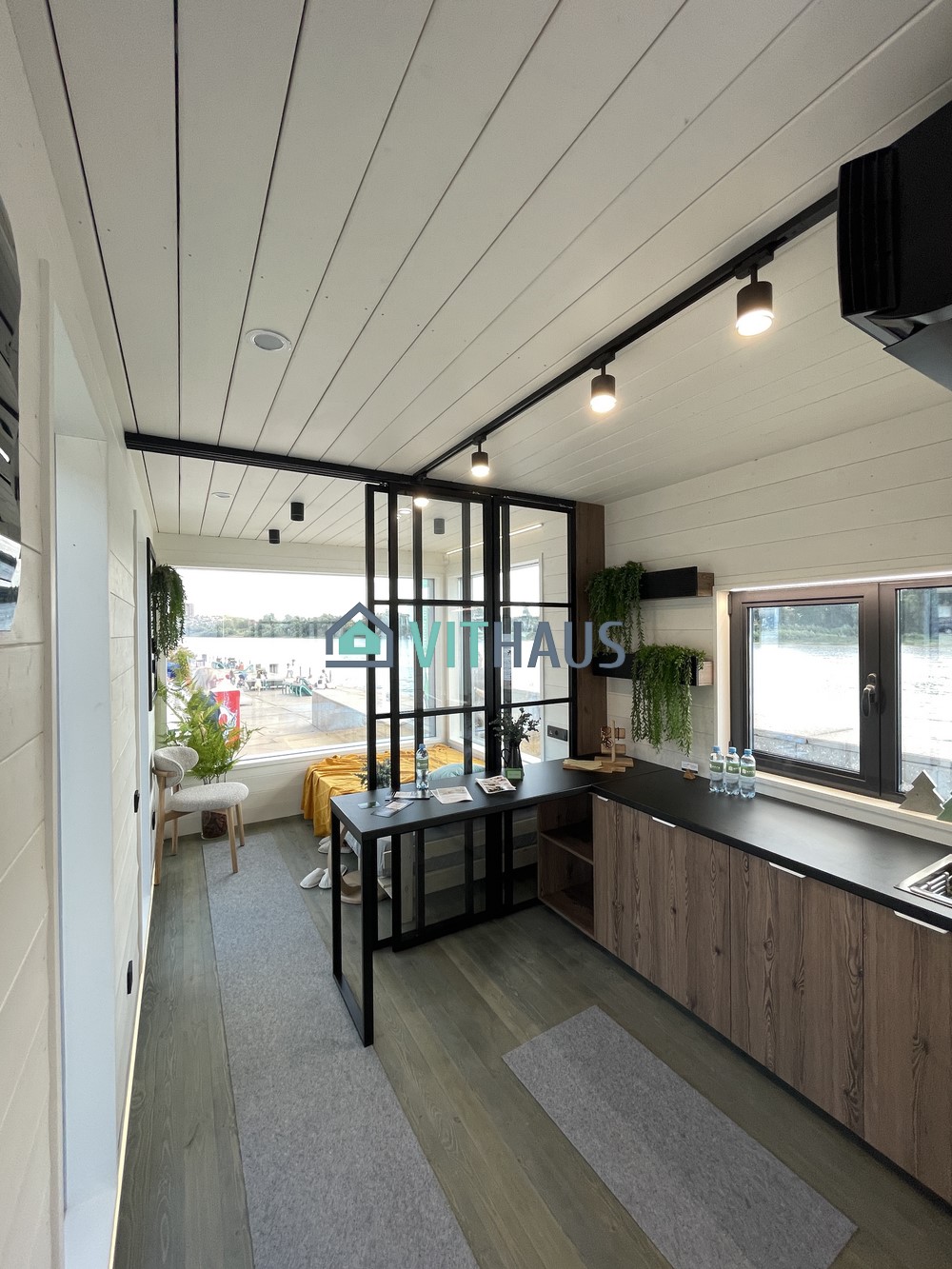

1. The walls are imitation timber grade AB, thickness 18 mm, painted with white Teknos water—based oil).
2. Ceiling and end wall — dry planed board (coniferous species, grade AB, 20×145mm, water-based oil painting Teknos).

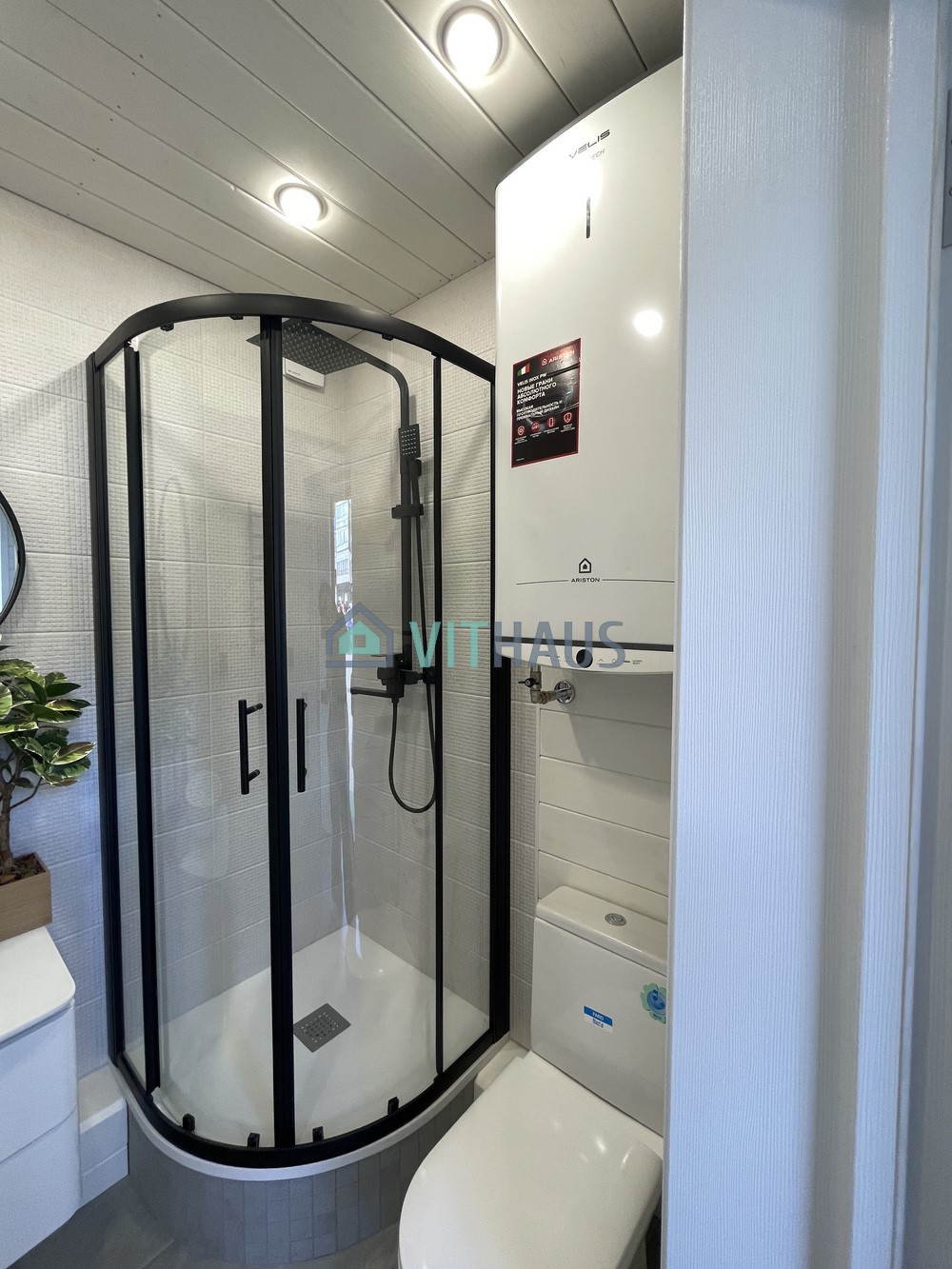

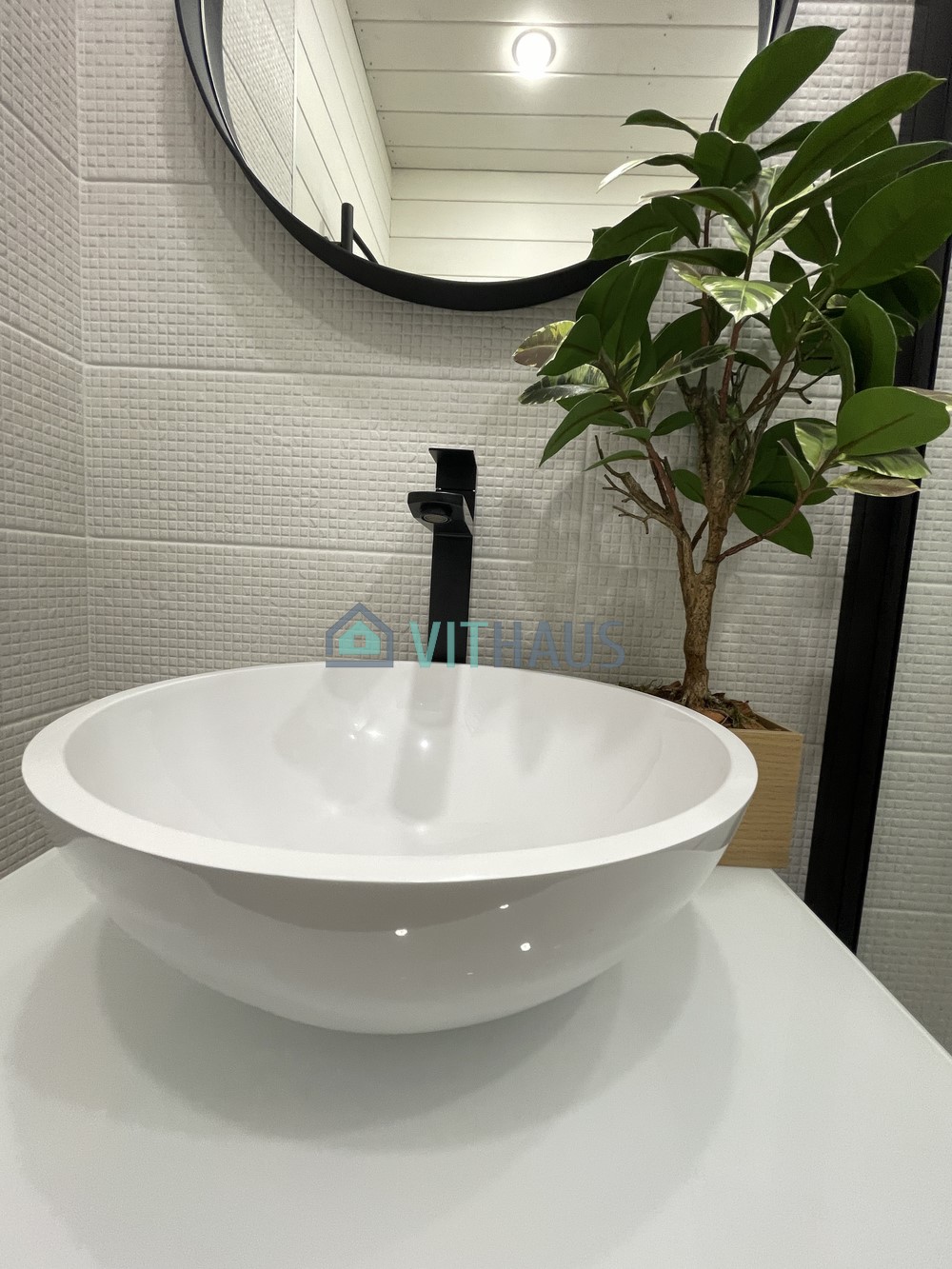

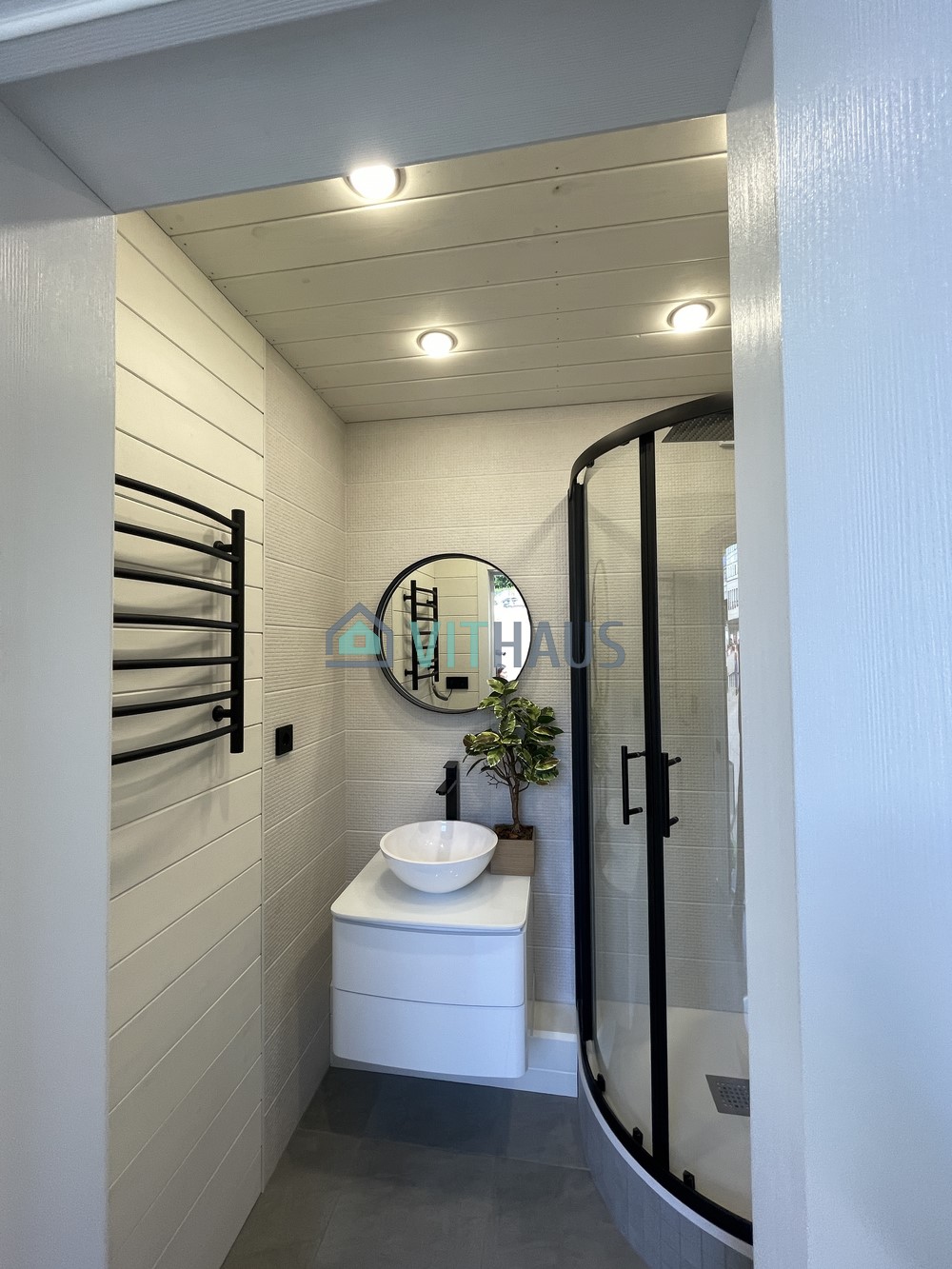

3. Bathroom — ceramic tiles and solid wood.

1. The floor covering is a tongue—and-groove larch board, varnished.
2. Reinforced frame: antiseptic planed bar, pine –45×195/145 mm.
3. Internal insulation of a frame: vapour barrier film – 1 mm.
4. Condensation protection: diffusion membrane for roofing 180 g/m2 – 1 mm.
5. Thermal insulation: stone wool 30-35 kg/m3 – 200 mm.
6. Internal surfaces (ceilings): natural wooden – pine cladding, coating – SIKKENS, color – white, – 20×145 mm
