A two-modular house with a mezzanine.

A two-modular house with a mezzanine, there is nothing superfluous in it, but there is everything you need for relaxation. An interesting solution of the second berth made it possible to accommodate 3-4 persons inside. And that’s not all – the house has a bathroom, a kitchen area, a dining area. A small terrace outside is a great place for breakfast and dinner outdoors. Cubehouse-25 can be used as a guest house, camping, tourist base, house for a fisherman / hunter. This is really a great idea for you.

CUBEHAUS 25

[table id=par-ch-25EN /]

What is included in the basic equipment of a Summer houses?

Roof: 379 mm = 6,79 m² K/W, U = 0,147
Walls: 309 mm = 5,25m² K/W, U = 0,190
Floor: 294 mm = 5,08 m² K/W, U = 0,197
Windows: wooden profile 78 mm, U = 1,00

  1. Roofing covering: PVC membrane sheets (panels for roofs), color – graphite gray RAL 7024, matte – 20 mm.
  2. Reinforced frame: antiseptic planed bar, pine –45×195/145 mm.
  3. Internal insulation of a frame: vapour barrier film – 1 mm.
  4. Condensation protection: diffusion membrane for roofing 180 g/m2 – 1 mm.
  5. Thermal insulation: stone wool 30-35 kg/m3 – 200 mm.
  6. Internal surfaces (ceilings): natural wooden – pine cladding, coating – SIKKENS, color – white, – 20×145 mm
  7.
  1. Side facade along the roof slope: profiled sheet, color RAL 7024 (graphite), larch board, coated with Teknos oil.
  2. Reinforced frame: antiseptic planed bar, pine –45×195/145 mm.
  3. Internal insulation of a frame: vapour barrier film – 1 mm.
  4. Condensation protection: diffusion membrane for roofing 180 g/m2 – 1 mm.
  5. Thermal insulation: stone wool 30-35 kg/m3 – 150 mm.
  6. Internal finishing:
    – imitation of timber grade AB, thickness 18 mm, painted with white Teknos water-based oil).


  7.
  1. The walls are imitation timber grade AB, thickness 18 mm, painted with white Teknos water—based oil).
  2. Ceiling and end wall — dry planed board (coniferous species, grade AB, 20×145mm, water-based oil painting Teknos).
  3. Bathroom — ceramic tiles and solid wood.
  1. The floor covering is a tongue—and-groove larch board, varnished.
  2. Reinforced frame: antiseptic planed bar, pine –45×195/145 mm.
  3. Internal insulation of a frame: vapour barrier film – 1 mm.
  4. Condensation protection: diffusion membrane for roofing 180 g/m2 – 1 mm.
  5. Thermal insulation: stone wool 30-35 kg/m3 – 200 mm.
  6. Internal surfaces (ceilings): natural wooden – pine cladding, coating – SIKKENS, color – white, – 20×145 mm
  1. The interior door is deaf with sound insulation.
  2. The entrance door and windows are aluminum warm frame, double—glazed windows are energy-efficient (with tempered glass, argon and I-spraying).
  1. Switchboard with Schneider automatic machines, cable VVGng LS
    (cable laying in self-extinguishing corrugated pvc pipe).
  2. Schneider socket groups, LED ceiling lights in all rooms.
  3. Outdoor moisture-resistant lamps.
  4. Outdoor moisture-proof outlet.
  5. Wiring of water supply and sewerage.
  6. The heating cable for heating the water inlet is 4 meters long.
  7. Electric convector with the function of maintaining a set temperature.
  8. Electric underfloor heating in the hallway and bathroom.
  9. Air conditioning included.

Toilet bowl, sink, illuminated mirror, shower, faucets, boiler 80L.

  1. There is a forced exhaust in the bathroom.
  2. The room has a supply unit with heated air (forced ventilation).

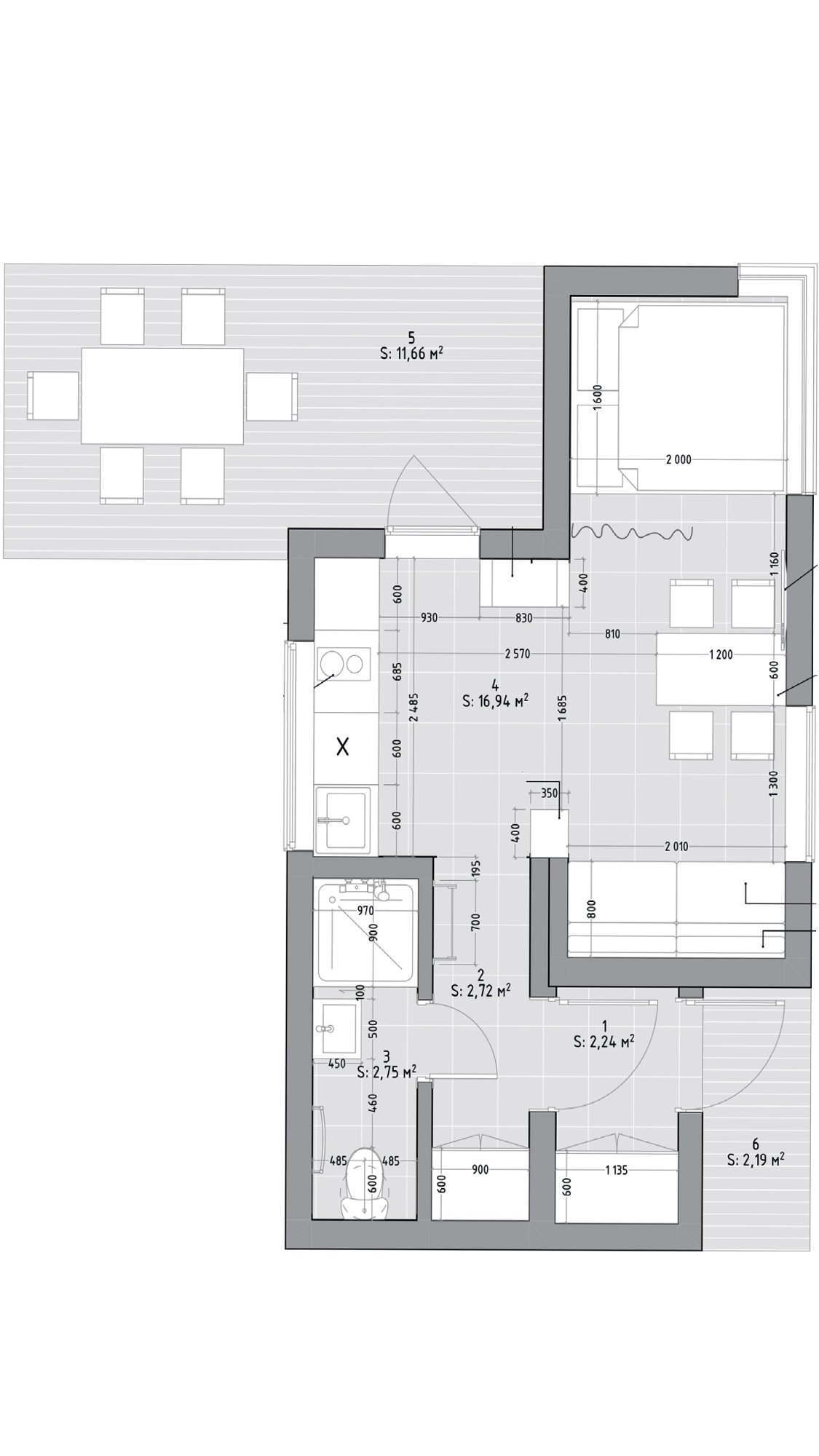

PLAN:

cubehaus-25-plan

FACADE:

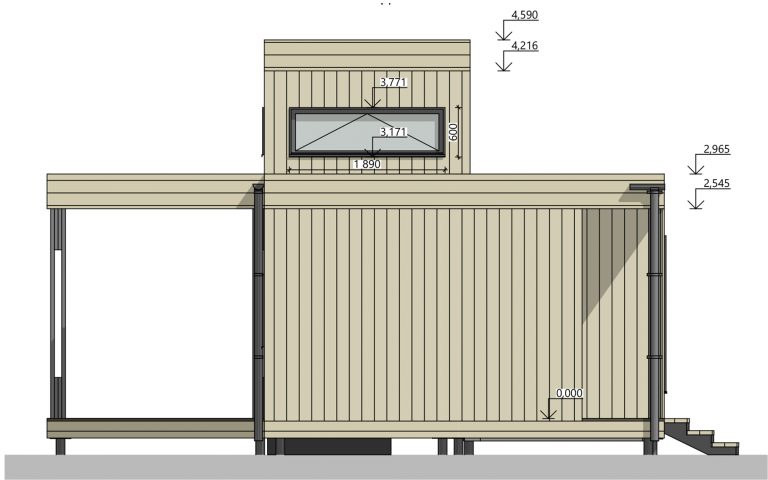

Cubehaus-25-f-1

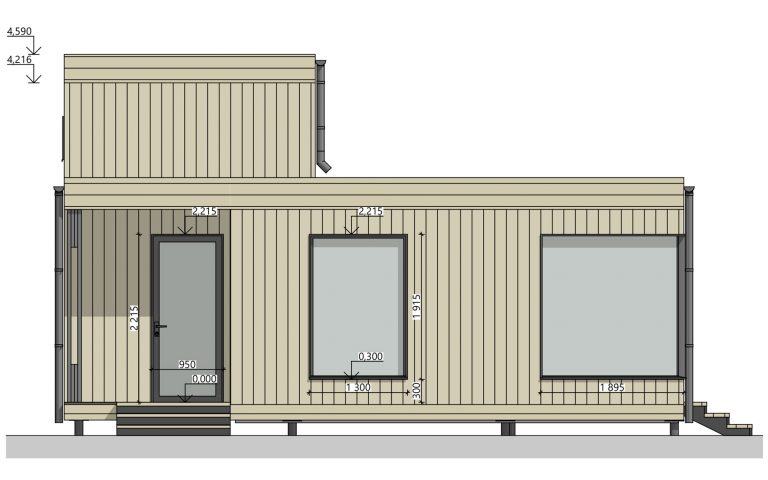

Cubehaus-25-f-2

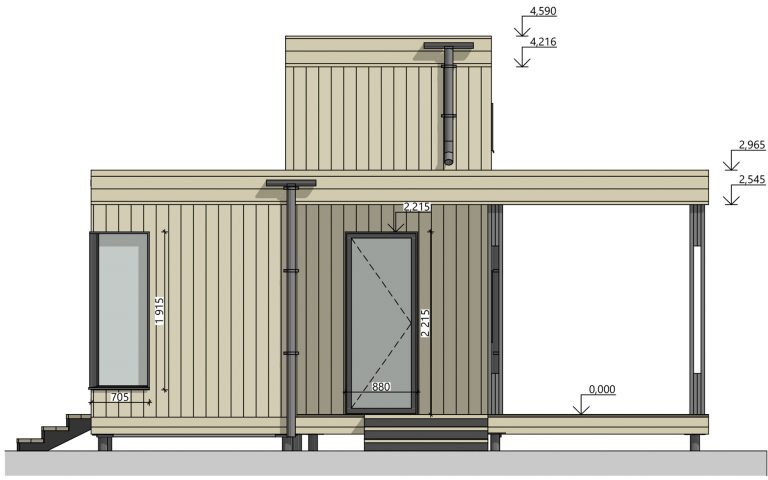

Cubehaus-25-f-3

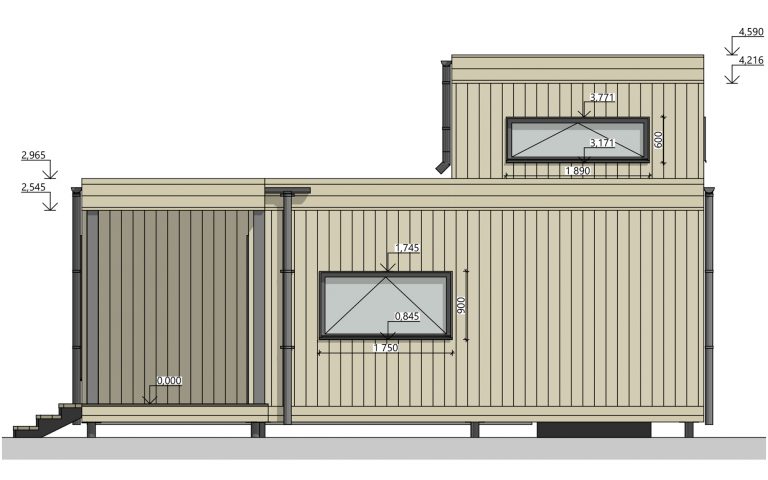

Cubehaus-25-f-4
