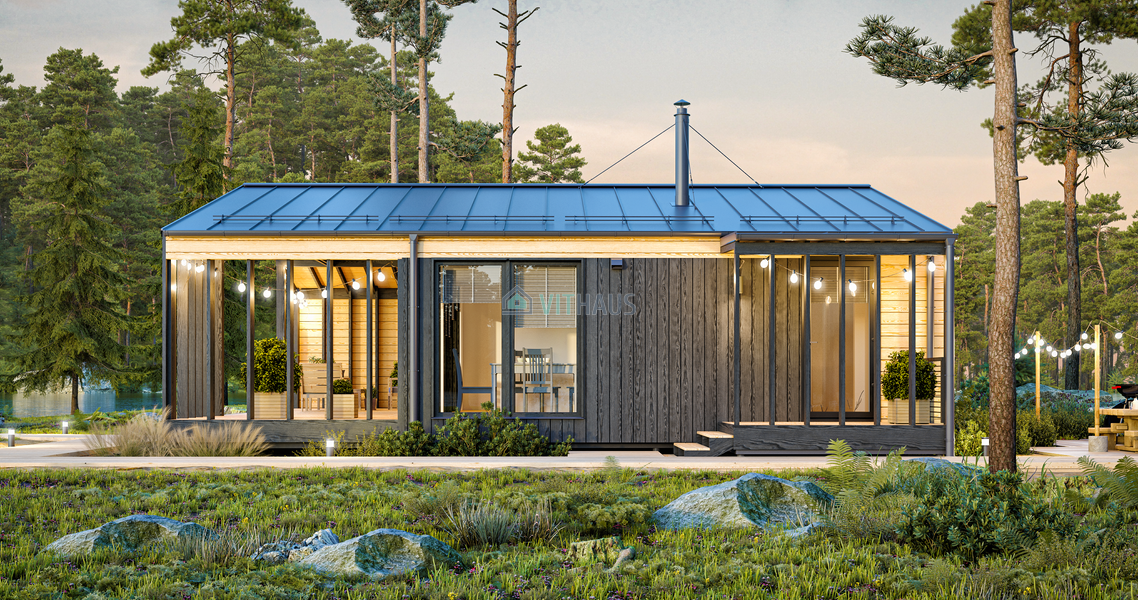

Modular house with pitched roof.

KOSHAUS-53 has everything you need for a comfortable stay of one person of any age or a married couple without children. The house has one bedroom, a separate entrance hall, a bathroom, a kitchen combined with a spacious living room, which compactly accommodates a dining area, a TV-zone, a fireplace area and a storage area. In future, the house can be easily increased in length by adding the necessary bedrooms, closets, sauna, additional bathrooms and rooms for other purposes. It is possible to make this model a two-story house

CUBYHOUSE 53

[table id=par-kh-53-en /]

*Cost excluding VAT

Download the catalog of houses

What is included in the basic equipment of a standard house?

Energy efficiency class A

Roof: 379 mm = 6,79 m² K/W, U = 0,147
Walls: 309 mm = 5,25m² K/W, U = 0,190
Floor: 294 mm = 5,08 m² K/W, U = 0,197
Windows: wooden profile 78 mm, U = 1,00

1. Roof construction (From outside to inside):

Roofing covering: metal profiled sheets (panels for roofs), color – graphite gray RAL 7024, matte – 20mm.
Roof wooden crate: antiseptic planed board, pine – 20×145 mm.
Counter-bars: antiseptic planed bar, pine – 45×45 mm.
Condensation protection: diffusion membrane for roofing 180 g/m2 – 1 mm.
Reinforced frame: antiseptic planed bar, pine –45×250 mm.
Thermal insulation: stone wool 30-35 kg/m3 – 250 mm.
Internal insulation of a frame: vapour barrier film – 1 mm.
Internal insulation of the frame: Gypsum particle board – 10 mm.
Counter-bars: antiseptic planed bar, pine – 45×95 mm.
Insulation: stone wool 30-35 kg/m3 – 100 mm.
Dust barrier: craft paper 80 g/m2 – 1mm.
Internal surfaces (ceilings): natural wooden – pine cladding, coating – SIKKENS, color – white, – 20×145 mm.

2. Construction of external walls (From outside to inside):

Side facade along the roof slope: metal profiled sheets, color – graphite gray RAL 7024, matte – 20 mm. Inserts under the windows made of natural wood – pine cladding, gray graphite RAL 7024 – 20×145 mm.
Back facade: natural wood – vertical pine cladding with a vertical pine bar, coating – SIKKENS, color – gray graphite / straw-4 – 20×145 mm + 45×45 mm.
Wooden crate: antiseptic planed board, pine – 20×96-145 mm.
Counter- bars: antiseptic planed bar, pine – 25×45 mm.
External insulation of a frame: fiberboard Isoplaat – 25 mm.
Reinforced wooden frame: antiseptic planed bar, pine – 45×195 mm.
Thermal insulation: stone wool 45-50 kg/m3 – 200 mm.
Internal insulation of a frame: vapour barrier film – 1 mm.
Structural rigidity: OSB-3 – 12 mm.
Internal insulation of the frame: Gypsum particle board – 10 mm.
Counter-bars: antiseptic planed bar 45×45 mm, pine – 45 mm.
Thermal insulation: stone wool 45-50 kg/m3 – 50 mm.
Internal insulation of a frame: vapour barrier film– 1 mm.
Internal finishing:
– internal surfaces of the side walls located along a slope of a roof are finished with wooden pine cladding, coating – SIKKENS, color – white, – 20×145 mm;
– internal surfaces of back walls – planken, pine, SIKKENS coating, color – gray graphite, – 20×145 mm;
In the bathroom:
– Kerama Marazzi mosaic, Temari collection 29.8×29.8 mm, color – white (20003), on a 10 mm cement particleboard with waterproofing;
– part of the walls in the bathroom are finished with pine cladding, coating – SIKKENS, color – white, – 20×145 mm.

3. Basic construction of interior walls

Finishing:
– internal surfaces of the walls located along a slope of a roof are finished with wooden pine cladding, coating – SIKKENS, color – white, – 20×145 mm;
– internal surfaces of back walls – planken, pine, SIKKENS coating, color – gray graphite, – 20×145 mm. Internal insulation of the frame: Gypsum particle board – 10 mm.
Reinforced frame: antiseptic planed bar, pine – 45×95/145-195 mm.
Thermal insulation: rock wool 45-50 kg/m3 – 100/150/200 mm.
Internal insulation of the frame: Gypsum fiberboard – 10 mm.
Finishing:
– internal surfaces of the side walls located along a slope of a roof are finished with wooden pine cladding, coating – SIKKENS, color – white, – 20×145 mm;
– internal surfaces of back walls – planken, pine, SIKKENS coating, color – gray graphite, – 20×145 mm;
In the bathroom:
– Kerama Marazzi mosaic, Temari collection 29.8×29.8 mm, color – white (20003), on a 10 mm cement particleboard with waterproofing;
– part of the walls in the bathroom are finished with pine cladding, coating – SIKKENS, color – white, – 20×145 mm.

4. Basic floor construction

In residential areas on the floor :
– laminate EGGER (ECO) (33rd class of abrasion, HOME CLASSIC collection, oak, color – to choose) – 8 mm ;
Underlayer for laminate – 4 mm.
You can optionally choose:
– Karelia Midnight parquet board with natural oak coating – 12 mm;
– underlayer for parquet board – 4 mm.
In the bathroom:
– Kerama Marazzi mosaic, Temari collection 29.8×29.8 mm, color – matt black (20071), on a 10 mm cement particleboard with waterproofing;
– waterproof layer;
– base – cement particleboard – 10 mm.
– base – moisture resistant plywood – 21 mm.
Insulation of the frame: vapor barrier – 1 mm.
Reinforced frame: antiseptic planed bar 45×250 mm, pine – 250 mm.
Thermal insulation: Ecowool 30-35 kg/m3 – 250 mm.
External insulation of the frame: cement particleboard – 10 mm.
Rough finish: planed technically dried board, larch, with bioprotective antiseptic coating – 45×145 mm. During installation, galvanized reinforced fasteners are used. Coating – SIKKENS, color – black.
Along the contour of the ventilated facade, metal protection from mice.

Energy efficiency class A+

Roof: 452 mm = 8,08 м² K/W, U = 0,124
Walls: 309 mm = 5,25 м² K/W, U = 0,190
Floor: 294 mm = 5,08 м² K/W, U = 0,197
Windows: 106 mm U = 1,00

1. Roof construction (From outside to inside):

Roofing covering: metal profiled sheets (panels for roofs), color – graphite gray RAL 7024, matte – 20mm.
Roof wooden crate: antiseptic planed board, pine – 20×145 mm.
Counter-bars: antiseptic planed bar, pine – 25×45 mm.
Condensation protection: diffusion membrane for roofing 150 g/m2 – 1 mm.
Counter-bars: antiseptic planed bar, pine – 45×45 mm.
External insulation of the frame: fiberboard Isoplaat – 25 mm.
Reinforced wooden frame: antiseptic planed bar, pine – 45×300 mm.
Thermal insulation: stone wool 30-35 kg/m3 – 300 mm.
Internal insulation of a frame: vapour barrier film – 1 mm.
Internal insulation of the frame: Gypsum particle board – 10 mm.
Counter-bars: antiseptic planed bar 45×95 mm, pine.
Insulation: stone wool 30-35 kg/m3 – 100 mm.
Dust barrier: craft paper 80 g/m2 – 1mm.
Internal surfaces (ceilings): natural wooden – pine cladding, coating – SIKKENS, color – white, – 20×145 mm.

2. Construction of external walls (From outside to inside):

Roofing covering: metal profiled sheets (panels for roofs), color – graphite gray RAL 7024, matte – 20mm.
Roof wooden crate: antiseptic planed board, pine – 20×145 mm.
Counter-bars: antiseptic planed bar, pine – 25×45 mm.
Condensation protection: diffusion membrane for roofing 150 g/m2 – 1 mm.
Counter-bars: antiseptic planed bar, pine – 45×45 mm.
External insulation of the frame: fiberboard Isoplaat – 25 mm.
Reinforced wooden frame: antiseptic planed bar, pine – 45×300 mm.
Thermal insulation: stone wool 30-35 kg/m3 – 300 mm.
Internal insulation of a frame: vapour barrier film – 1 mm.
Internal insulation of the frame: Gypsum particle board – 10 mm.
Counter-bars: antiseptic planed bar 45×95 mm, pine.
Insulation: stone wool 30-35 kg/m3 – 100 mm.
Dust barrier: craft paper 80 g/m2 – 1mm.
Internal surfaces (ceilings): natural wooden – pine cladding, coating – SIKKENS, color – white, – 20×145 mm.

3. Basic construction of external walls:

Finishing:
– internal surfaces of the walls located along a slope of a roof are finished with wooden pine cladding, coating – SIKKENS, color – white, – 20×145 mm;
– internal surfaces of back walls – planken, pine, SIKKENS coating, color – gray graphite, – 20×145 mm. Internal insulation of the frame: Gypsum particle board – 10 mm.
Reinforced frame: antiseptic planed bar, pine – 45×95/145-195 mm.
Thermal insulation: rock wool 45-50 kg/m3 – 100/150/200 mm.
Internal insulation of the frame: Gypsum fiberboard – 10 mm.
Finishing:
– internal surfaces of the side walls located along a slope of a roof are finished with wooden pine cladding, coating – SIKKENS, color – white, – 20×145 mm;
– internal surfaces of back walls – planken, pine, SIKKENS coating, color – gray graphite, – 20×145 mm;
In the bathroom:
– Kerama Marazzi mosaic, Temari collection 29.8×29.8 mm, color – white (20003), on a 10 mm cement particleboard with waterproofing;
– part of the walls in the bathroom are finished with pine cladding, coating – SIKKENS, color – white, – 20×145 mm.

4. Basic floor construction

In residential areas on the floor :
– laminate EGGER (ECO) (33rd class of abrasion, HOME CLASSIC collection, oak, color – to choose) – 8 mm ;
Underlayer for laminate – 4 mm.
You can optionally choose:
– Karelia Midnight parquet board with natural oak coating – 12 mm;
– underlayer for parquet board – 4 mm.
In the bathroom:
– Kerama Marazzi mosaic, Temari collection 29.8×29.8 mm, color – matt black (20071), on a 10 mm cement particleboard with waterproofing;
– matte gray graphite (20064); waterproof layer;
– base – cement particleboard – 10 mm.
– base – moisture resistant plywood – 21 mm.
Insulation of the frame: vapor barrier – 1 mm.
Reinforced frame: antiseptic planed bar 45×250 mm, pine – 250 mm.
Thermal insulation: Ecowool 30-35 kg/m3 – 250 mm.
External insulation of the frame: cement particleboard – 10 mm.
Rough finish: planed technically dried board, larch, with bioprotective antiseptic coating – 45×145 mm. During installation, galvanized reinforced fasteners are used. Coating – SIKKENS, color – black.
Along the contour of the ventilated facade, metal protection from mice.

5. Windows and entrance doors:

Windows and entrance doors: wooden frames – 90/106 mm with double seal circuit. Triple-glass windows with low-e glass 4×12×4×12×6i. Factory painting – SIKKENS, color – gray graphite. Roto NT accessories. On the doors – reinforced hinges, mortise lock.
Panoramic window: reinforced triple-glass with low-e glass: triplex 4×14×4×14×6i tempered glass.

6. Other:

Sink tap: Grohe, chrome.
Wash basin in the bathroom: Cersanit/ Villeroy&Boch Avento 60×47 furniture set with a drawer
Toilet bowl: Cersanit Carina/Villeroy&Bosh O.novo.
Shower tap: Grohe, chrome, with Grohe shower set.
Shower room:
– bathroom 700×1700 mm with a front panel;
or
– shower area glazing: 10 mm thick tempered glass, 1900×850 mm, transparent, colorless, in a set with metal profile for fixing to the floor and to the wall.
Storage water heater: Electrolux EWH 100 Royal Flash Silver.

Kitchen arrangement (for laying communications): outputs of water supply and sewerage; output for the sink; output electric cable for connecting the kitchen hob, refrigerator, kitchen hood.

Additional expenses:

delivery from the seller’s warehouse to the building site
(calculated individually);
installation on the building site;
crane rental 25 t for installation works;
installation of the foundation on the site.
Additional production is possible:
porch, stairs, terraces, veranda.
