Modular house with pitched roof.

KOSHAUS-132 is designed specifically for a big family. The useful area of the house is 126.40 m2 with a spacious veranda of 29.02 m2 will accommodate not only a big family, but, if necessary, the same number of guests. 4 bedrooms, living room, kitchen, bathroom, storage room, vestibule. Veranda is a place for summer rest. The area of the house allows you to place 2 more bathrooms, a sauna or an office. There are various options for the house layout and orientation of the main facade.

KOSHAUS 132

PERIOD OF DELIVERY:150 tage
BUILDING AREA:183.46 m²
USEFUL AREA:126.40 m²
DIMENSIONS (HxWxL):3.70×9.36×19.60 m
CEILING HEIGHT:2.10-3.27 m
ROOMS:
4
VERANDA AREA:29.02 m²

What is included in the basic equipment of a standard house?

Roof: 262 mm = 4,09 м² K/W, U = 0,245
Wall: 212 mm = 3,15 м² K/W, U = 0,317
Floor: 239 mm = 4,05 м² K/W, U = 0,247
Windows: 78 mm U = 1,20

  • Roofing covering: metal profiled sheets (panels for roofs), color – graphite gray RAL 7024, matte – 20mm.
  • Roof battens: planed board 20×145 mm, pine – 20 mm.
  • Counter battens:planed bar 25×45 mm, pine – 45 mm.
  • Condensation protection: diffusion membrane for roofing – 1 mm.
  • Thermal insulation: rock wool 200 mm.
  • Frame: planed bar 45×195 mm, pine.
  • Internal insulation of a frame: vapour barrier – 1 mm.
  • Counter battens: planed board 45×45 mm, pine – 45 mm.
  • Internal surfaces (ceilings): natural wooden cladding 20×145/195 mm; pine, coating – SIKKENS, color – white – 20 mm.
  • Facade (along the slope of the roof): metal profiled sheets, color – graphite gray RAL 7024, matte + Facewalls: the planed board, AB grade; SIKKENS coating, color – gray graphite – 20 mm.
  • Roof battens: planed board 20×145 mm, pine – 20 mm.
  • Counter battens:planed bar 25×45 mm, pine – 25 mm.
  • Internal insulation of a frame: vapour barrier – 1 mm;
  • Thermal insulation: rock wool – 150 mm.
  • Frame: planed bar 45×145 mm, pine – 145 mm.
  • Internal insulation of a frame: vapour barrier – 1 mm;
  • Counter-battens: planed bar 45×45 mm, pine – 45 mm.
  • Internal finishing – 20 mm:
    – internal surfaces of the walls located along a slope of a roof are finished by wooden pine cladding 20×145/195 mm, coating – SIKKENS, color – white;
    – internal surfaces of the face walls located across the roof ridge are planked wall with 20×145/195 mm pine, SIKKENS coating, color – gray graphite;
    – in the bathroom: the mosaic tiles 29,8×29,8 mm (Kerama Marazzi, the Temari collection), color – gray graphite matte (20064), on a cement fiberboard 10 mm with waterproofing;
    – part of the walls in the bathroom are finished with plank 20×145/195 mm, pine, coating – SIKKENS, color – gray graphite.
  • In residential areas on the floor :
    – laminate EGGER (ECO) (33rd class of abrasion, HOME CLASSIC collection, oak, color – to choose) – 12 mm ;
  • Underlayer for laminate; base – moisture resistant plywood – 21 mm.
    You can optionally choose:
    – Karelia Midnight parquet boardwith natural oak coating 12 mm;
    underlay for parquet board 3 mm, base – moisture resistant plywood – 21 mm;
    In the bathroom:
    – mosaic tiles 29,8×29,8 mm, Temari collection, color
    – matte gray graphite (20064); waterproof layer;
    – base – cement fiberboard – 10 mm.
  • Insulation of the frame: vapour barrier – 1 mm.
  • Thermal insulation: Ecowool – 200 mm.
  • Frame: planed bar 45×250 mm, pine – 195 mm.
  • External insulation of the frame: cement fiberboard – 10 mm.
  • Rough finish: planed technically dried board 45×145 mm, larch, with bioprotective antiseptic coating. During installation, galvanized reinforced fasteners are used. Coating – SIKKENS, color – black – 45 mm.
  • Along the contour of the ventilated facade, metal protection from mice.
  • Windows and entrance doors: wooden frames – 78 mm with double seal circuit. Triple-glass windows with low-e glass 4×12×4×12×6i. Factory painting – SIKKENS, color – gray graphite. Roto NT accessories. On the doors – reinforced hinges, mortise lock.
  • Panoramic window: reinforced triple-glass with low-e glass: triplex 4×14×4×14×6i tempered glass.

Roof: 339 mm = 6,30 м² K/W, U = 0,159
Walls: 238 mm = 4,30 м² K/W, U = 0,233
Floor: 294 mm = 5,08 м² K/W, U = 0,197
Windows: 90 mm U = 1,00

  • Roofing covering: metal profiled sheets (panels for roofs), color – graphite gray RAL 7024, matte – 20mm.
  • Roof battens: planed board 20×145 mm, pine – 20 mm.
  • Counter battens:planed bar 25×45 mm, pine – 25 mm.
  • Condensation protection: diffusion membrane for roofing – 1 mm.
  • Counter battens: planed bar 45×45 mm, pine – 45 mm.
  • External insulation of a frame: fiberboard Isoplaat – 12 mm.
  • Thermal insulation: rock wool 250 mm.
  • Frame: planed bar 45×250 mm, pine.
  • Internal insulation of a frame: vapour barrier – 1 mm.
  • Gypsum fiberboard – 10 mm.
  • Counter battens: planed board 45×45 mm, pine – 45 mm.
  • Insulation: rock wool 50 mm.
  • Dust barrier: craft paper 80g/m2 – 1mm.
  • Internal surfaces (ceilings): natural wooden cladding 20×145/195 mm; pine, coating – SIKKENS, color – white – 20 mm.
  • Facade (along the slope of the roof): metal profiled sheets, color – graphite gray RAL 7024, matte + Facewalls: the planed board, AB grade; SIKKENS coating, color – gray graphite – 20 mm.
  • Roof battens: planed board 20×145 mm, pine – 20 mm.
  • Counter battens:planed bar 25×45 mm, pine – 25 mm.
  • External insulation of a frame: fiberboard Isoplaat – 12 mm.
  • Thermal insulation: rock wool – 200 mm.
  • Frame: planed bar 45×195 mm, pine – 195 mm.
  • Internal insulation of a frame: vapour barrier – 1 mm;
  • Gypsum fiberboard – 10 mm.
  • Counter-battens: planed bar 45×45 mm, pine – 45 mm.
  • Internal finishing – 20 mm:
    – internal surfaces of the walls located along a slope of a roof are finished by wooden pine cladding 20×145/195 mm, coating – SIKKENS, color – white;
    – internal surfaces of the face walls located across the roof ridge are planked wall with 20×145/195 mm pine, SIKKENS coating, color – gray graphite;
    – in the bathroom: the mosaic tiles 29,8×29,8 mm (Kerama Marazzi, the Temari collection), color – gray graphite matte (20064), on a cement fiberboard 10 mm with waterproofing;
    – part of the walls in the bathroom are finished with plank 20×145/195 mm, pine, coating – SIKKENS, color – gray graphite.
  • In residential areas on the floor :
    – laminate EGGER (ECO) (33rd class of abrasion, HOME CLASSIC collection, oak, color – to choose) – 12 mm ;
  • Underlayer for laminate; base – moisture resistant plywood – 21 mm.
    You can optionally choose:
    – Karelia Midnight parquet boardwith natural oak coating 12 mm;
    underlay for parquet board 3 mm, base – moisture resistant plywood – 21 mm;
    In the bathroom:
    – mosaic tiles 29,8×29,8 mm, Temari collection, color
    – matte gray graphite (20064); waterproof layer;
    – base – cement fiberboard – 10 mm.
  • Insulation of the frame: vapour barrier – 1 mm.
  • Thermal insulation: Ecowool – 250 mm.
  • Frame: planed bar 45×250 mm, pine – 250 mm.
  • External insulation of the frame: cement fiberboard – 10 mm.
  • Rough finish: planed technically dried board 45×145 mm, larch, with bioprotective antiseptic coating. During installation, galvanized reinforced fasteners are used. Coating – SIKKENS, color – black – 45 mm.
  • Along the contour of the ventilated facade, metal protection from mice.
  • Windows and entrance doors: wooden frames – 90 mm with double seal circuit. Triple-glass windows with low-e glass 4×12×4×12×6i. Factory painting – SIKKENS, color – gray graphite. Roto NT accessories. On the doors – reinforced hinges, mortise lock.
  • Panoramic window: reinforced triple-glass with low-e glass: triplex 4×14×4×14×6i tempered glass.

Roof: 442 mm = 8,18 м² K/W, U = 0,122
Walls: 297 mm = 5,17 м² K/W, U = 0,193
Floor: 294 mm = 5,08 м² K/W, U = 0,197
Windows: 106 mm U = 0,80

  • Roofing covering: metal profiled sheets (panels for roofs), color – graphite gray RAL 7024, matte – 20mm.
  • Roof battens: planed board 20×145 mm, pine – 20 mm.
  • Counter battens:planed bar 25×45 mm, pine – 25 mm.
  • Condensation protection: diffusion membrane for roofing – 1 mm.
  • Counter battens: planed bar 45×45 mm, pine – 45 mm.
  • External insulation of a frame: fiberboard Isoplaat 25 mm.
  • Thermal insulation: rock wool 350 mm.
  • Frame: planed bar 45×340 mm, pine.
  • Internal insulation of a frame: vapour barrier – 1 mm.
  • Gypsum fiberboard – 10 mm.
  • Counter battens: planed board 45×45 mm, pine – 45 mm.
  • Insulation: rock wool 50 mm.
  • Dust barrier: craft paper 80g/m2 – 1mm.
  • Internal surfaces (ceilings): natural wooden cladding 20×145/195 mm; pine, coating – SIKKENS, color – white – 20 mm.
  • Facade (along the slope of the roof): metal profiled sheets, color – graphite gray RAL 7024, matte + Facewalls: the planed board, AB grade; SIKKENS coating, color – gray graphite – 20 mm.
  • Roof battens: planed board 20×145 mm, pine – 20 mm.
  • Counter battens:planed bar 25×45 mm, pine – 25 mm.
  • External insulation of a frame: fiberboard Isoplaat – 25 mm.
  • Thermal insulation: rock wool – 200 mm.
  • Frame: planed bar 45×195 mm, pine – 195 mm.
  • Internal insulation of a frame: vapour barrier – 1 mm;
  • Gypsum fiberboard – 10 mm.
  • Counter-battens: planed bar 45×45 mm, pine – 45 mm.
  • Insulation: rock wool – 50 mm.
  • Dust barrier: craft paper 80g/m2 – 1 mm.
  • Internal finishing – 20 mm:
    – internal surfaces of the walls located along a slope of a roof are finished by wooden pine cladding 20×145/195 mm, coating – SIKKENS, color – white;
    – internal surfaces of the face walls located across the roof ridge are planked wall with 20×145/195 mm pine, SIKKENS coating, color – gray graphite;
    – in the bathroom: the mosaic tiles 29,8×29,8 mm (Kerama Marazzi, the Temari collection), color – gray graphite matte (20064), on a cement fiberboard 10 mm with waterproofing;
    – part of the walls in the bathroom are finished with plank 20×145/195 mm, pine, coating – SIKKENS, color – gray graphite.
  • In residential areas on the floor :
    – laminate EGGER (ECO) (33rd class of abrasion, HOME CLASSIC collection, oak, color – to choose) – 12 mm ;
  • Underlayer for laminate; base – moisture resistant plywood – 21 mm.
    You can optionally choose:
    – Karelia Midnight parquet boardwith natural oak coating 12 mm;
    underlay for parquet board 3 mm, base – moisture resistant plywood – 21 mm;
    In the bathroom:
    – mosaic tiles 29,8×29,8 mm, Temari collection, color
    – matte gray graphite (20064); waterproof layer;
    – base – cement fiberboard – 10 mm.
  • Insulation of the frame: vapour barrier – 1 mm.
  • Thermal insulation: Ecowool – 250 mm.
  • Frame: planed bar 45×250 mm, pine – 250 mm.
  • External insulation of the frame: cement fiberboard – 10 mm.
  • Rough finish: planed technically dried board 45×145 mm, larch, with bioprotective antiseptic coating. During installation, galvanized reinforced fasteners are used. Coating – SIKKENS, color – black – 45 mm.
  • Along the contour of the ventilated facade, metal protection from mice.
  • Windows and entrance doors: wooden frames – 106 mm with double seal circuit. Triple-glass windows with low-e glass 4×12×4×12×6i. Factory painting – SIKKENS, color – gray graphite. Roto NT accessories. On the doors – reinforced hinges, mortise lock.
  • Panoramic window: reinforced triple-glass with low-e glass: triplex 4×14×4×14×6i tempered glass.
  • Frame: planed bar 45×95/145 mm, pine, AB grade.
  • Thermal insulation: rock wool 100/150 mm.
  • Internal and external insulation of a frame: vapour barrier;
  • Finishing:
    – internal surfaces of the walls located along a slope of a roof are finished by wooden cladding 20×145/195 mm, pine, coating – SIKKENS, color – white;
    – internal surfaces of the face walls located across the roof ridge are planked wall with 20×145/195 mm, pine, coating – SIKKENS, color –gray graphite.

Electrical wiring is hidden (in the frame). The cable laying in the walls is made in metal corrugation with PVC insulation.
The wiring is made with a cable FRLS:
– lighting cable Fil Cu 3×1.5 mm;
– sockets cable Fil Cu 3×2.5 mm;
– electrical heating cable Fil Cu 3×4 mm;
– hob and oven cable Fil Cu 5×4 mm.
Socket groups are double-positioned, ceramic based.
Input circuit breaker – three-pole circuit-breaker 25A, category B. Lighting – circuit breakers 10A, household sockets –circuit breakers 16A, on the kitchen stove, sockets in wet areas – differential circuit breakers.

  • Sewerage: PVC pipes 50/110 mm. Connection with external networks.
  • Water supply: seamless polypropylene pipe Ø20 mm, combined with a flexible attaching pipe (protection against leaks). Connection with external networks.
  • Heated floor in the bathroom: heating mats with a thermostat Warmehaus.
  • Ventilation: forced in the bathroom and natural in the kitchen. Ventilation duct 100 mm. Fan riser on the roof.
  • Sink tap: Grohe, chrome.
  • Wash basin in the bathroom: Cersanit/ Villeroy&Boch Avento 60×47 furniture set with a drawer
  • Toilet bowl: Cersanit Carina/Villeroy&Bosh O.novo.
  • Shower tap: Grohe, chrome, with Grohe shower set.
  • Shower room:
    – bathroom 700×1700 mm with a front panel;
    or
    – shower area glazing: 10 mm thick tempered glass, 1900×850 mm, transparent, colorless, in a set with metal profile for fixing to the floor and to the wall.
  • Storage water heater: Electrolux EWH 100 Royal Flash Silver.

Kitchen arrangement (for laying communications): outputs of water supply and sewerage; output for the sink; output electric cable for connecting the kitchen hob, refrigerator, kitchen hood.

  • delivery from the seller’s warehouse to the building site
    (calculated individually);
  • installation on the building site;
  • crane rental 25 t for installation works;
  • installation of the foundation on the site.

    Additional production is possible:
    porch, stairs, terraces, veranda.

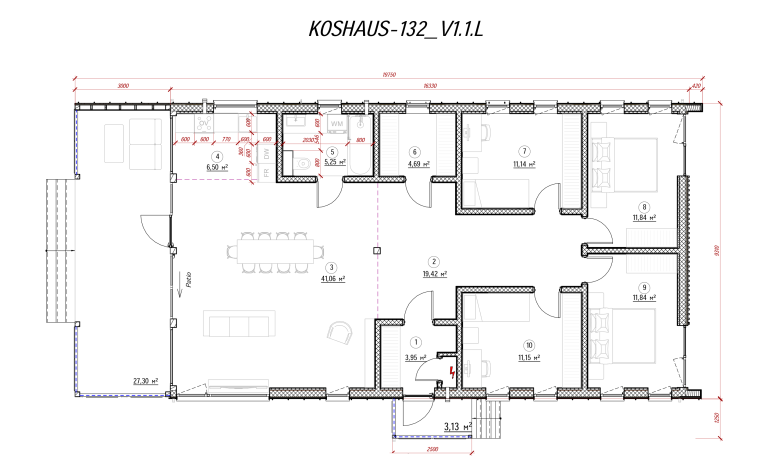

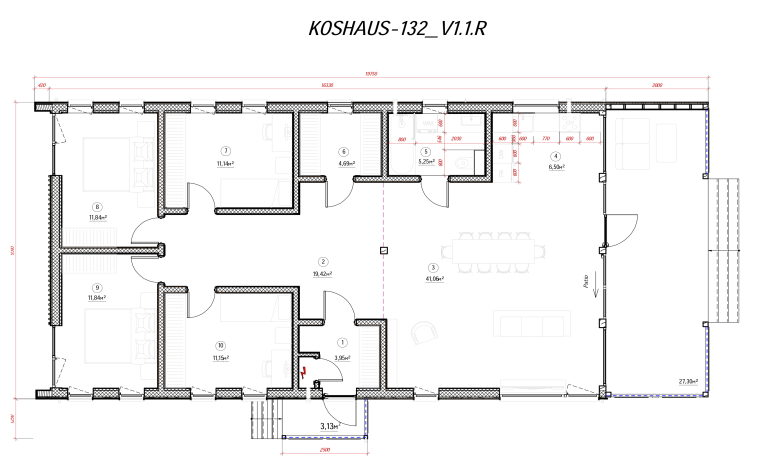

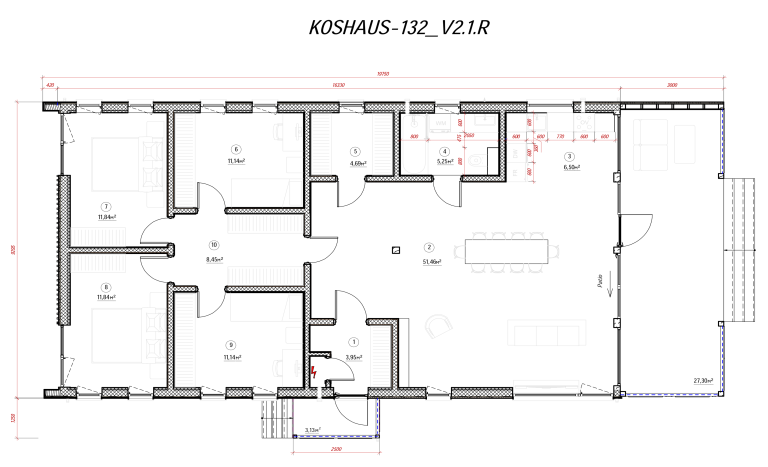

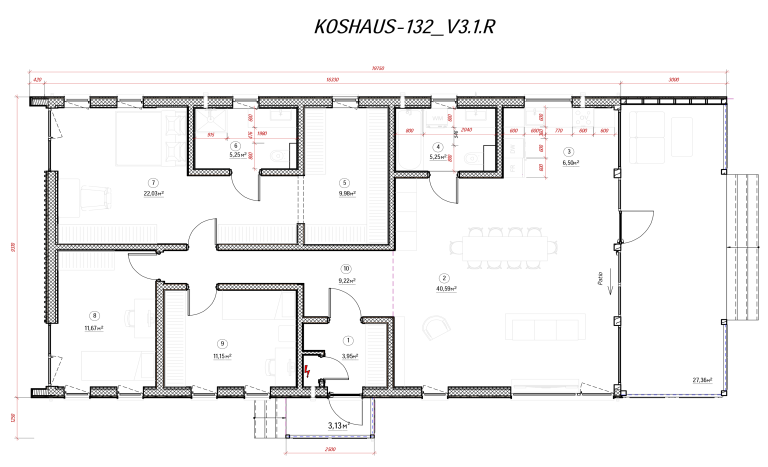

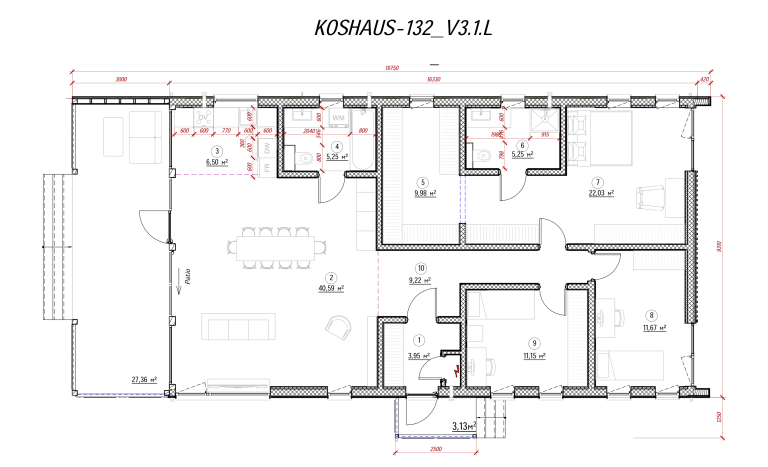

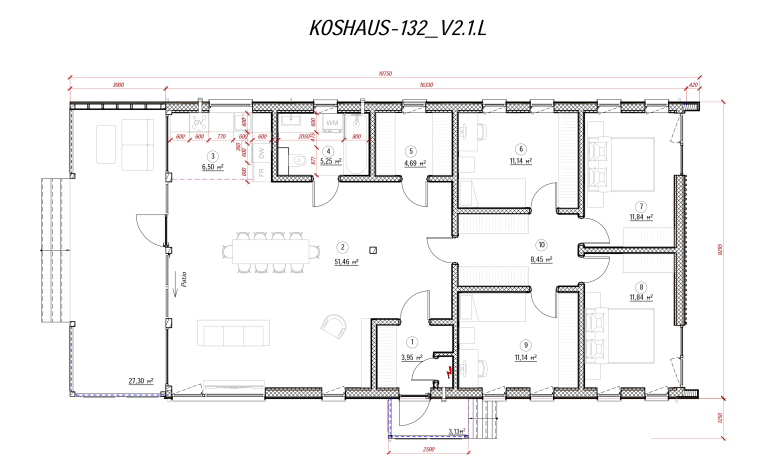

PLAN:

FACADE:
