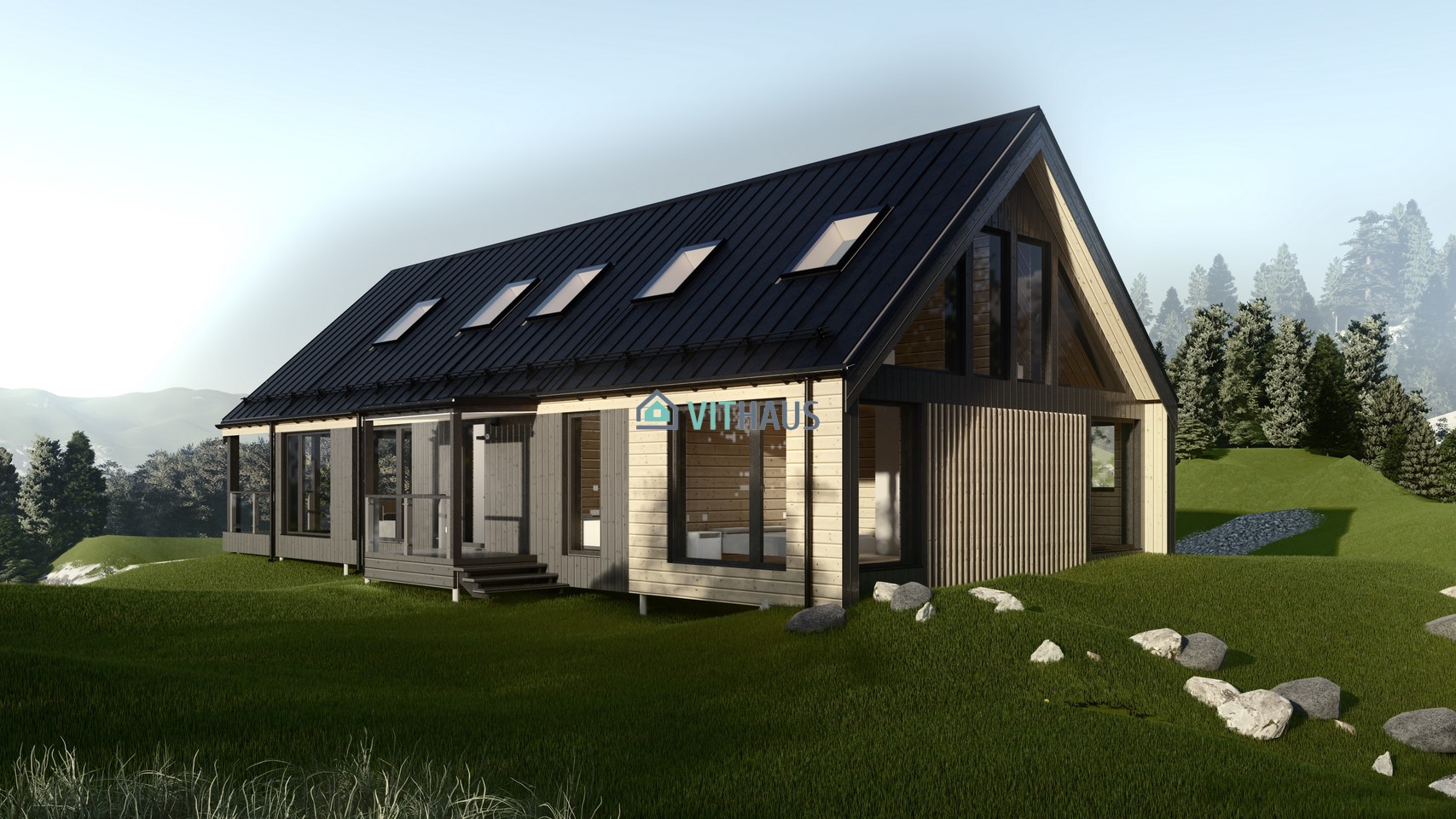

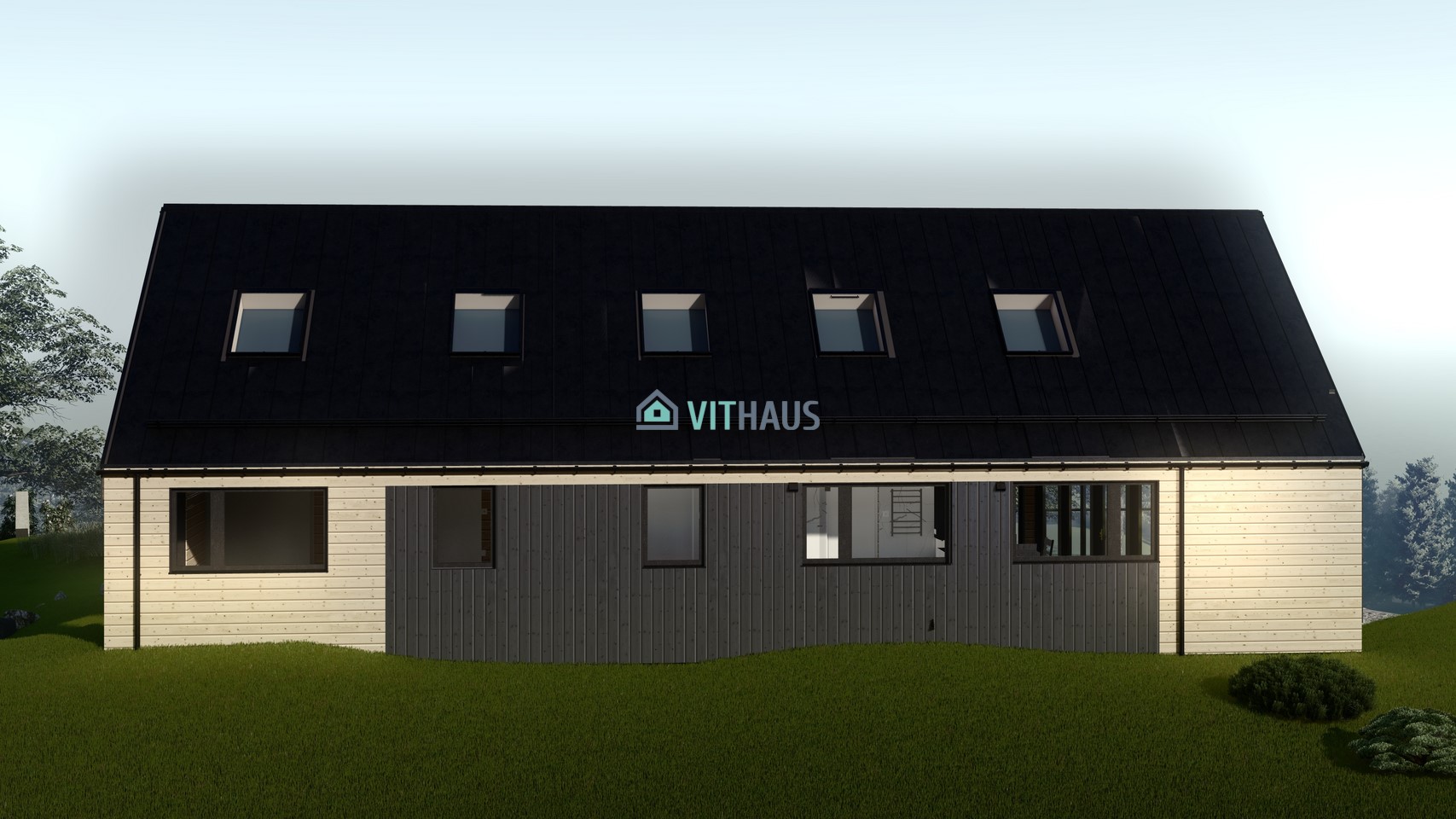

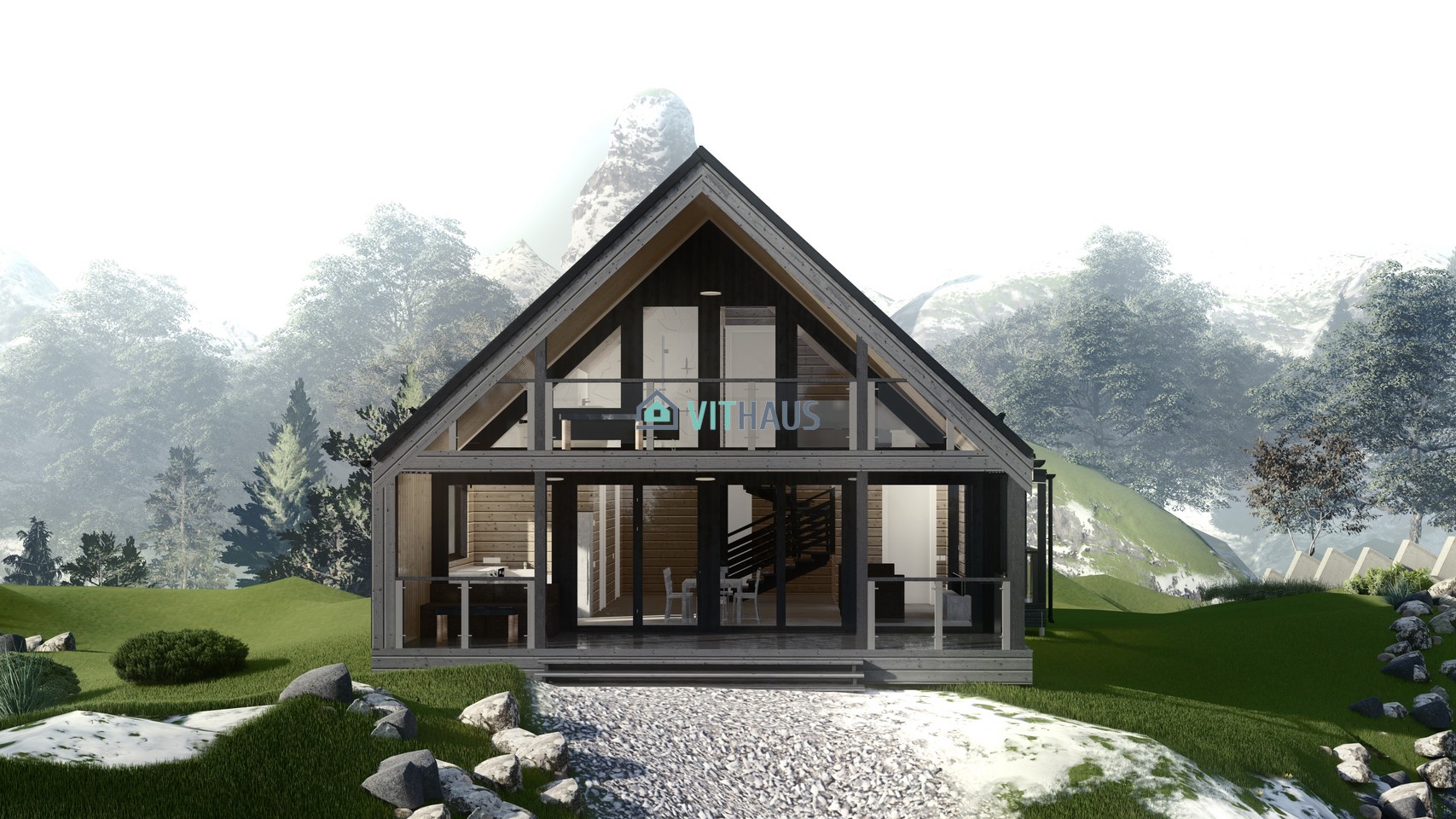

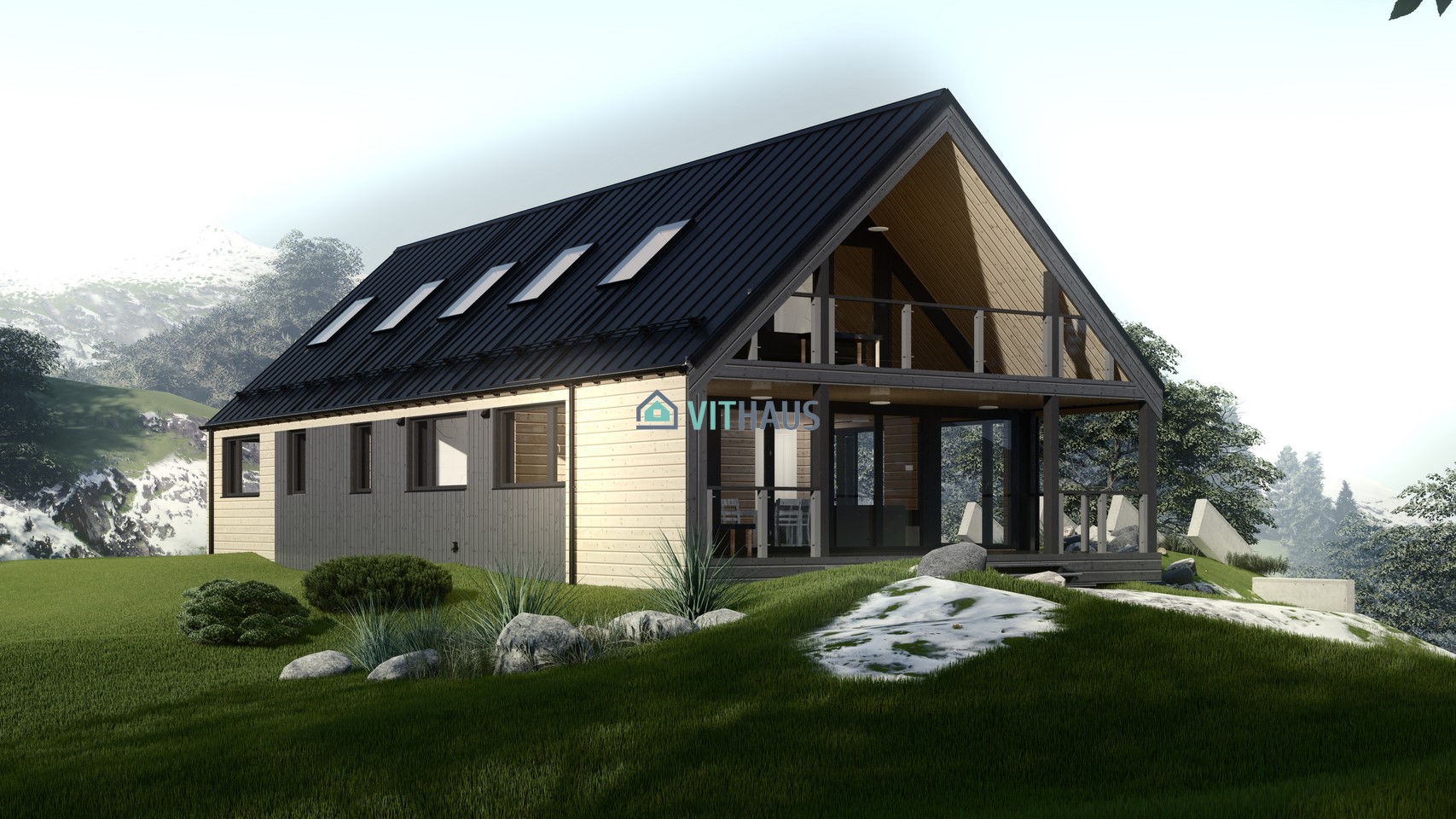

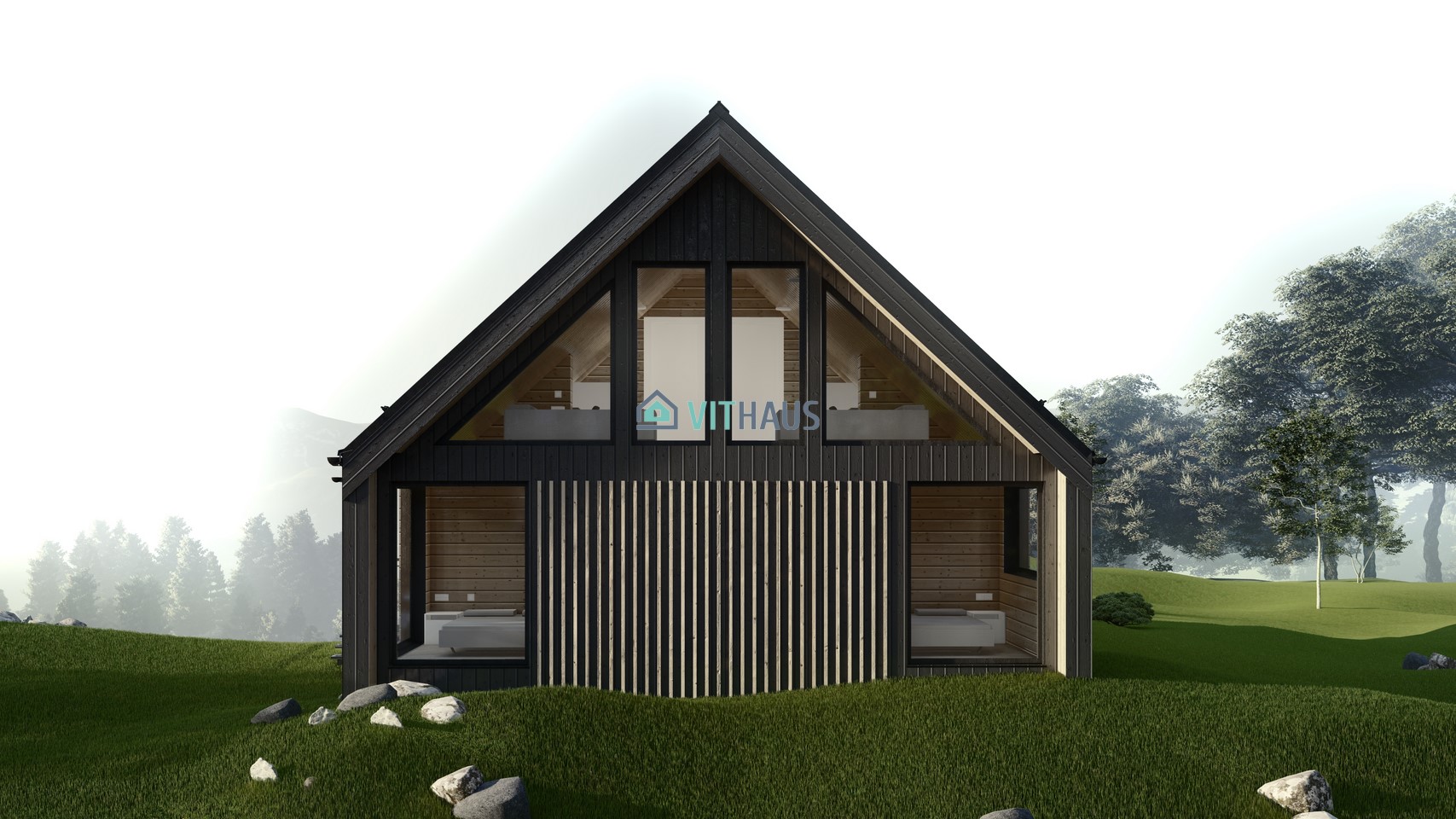

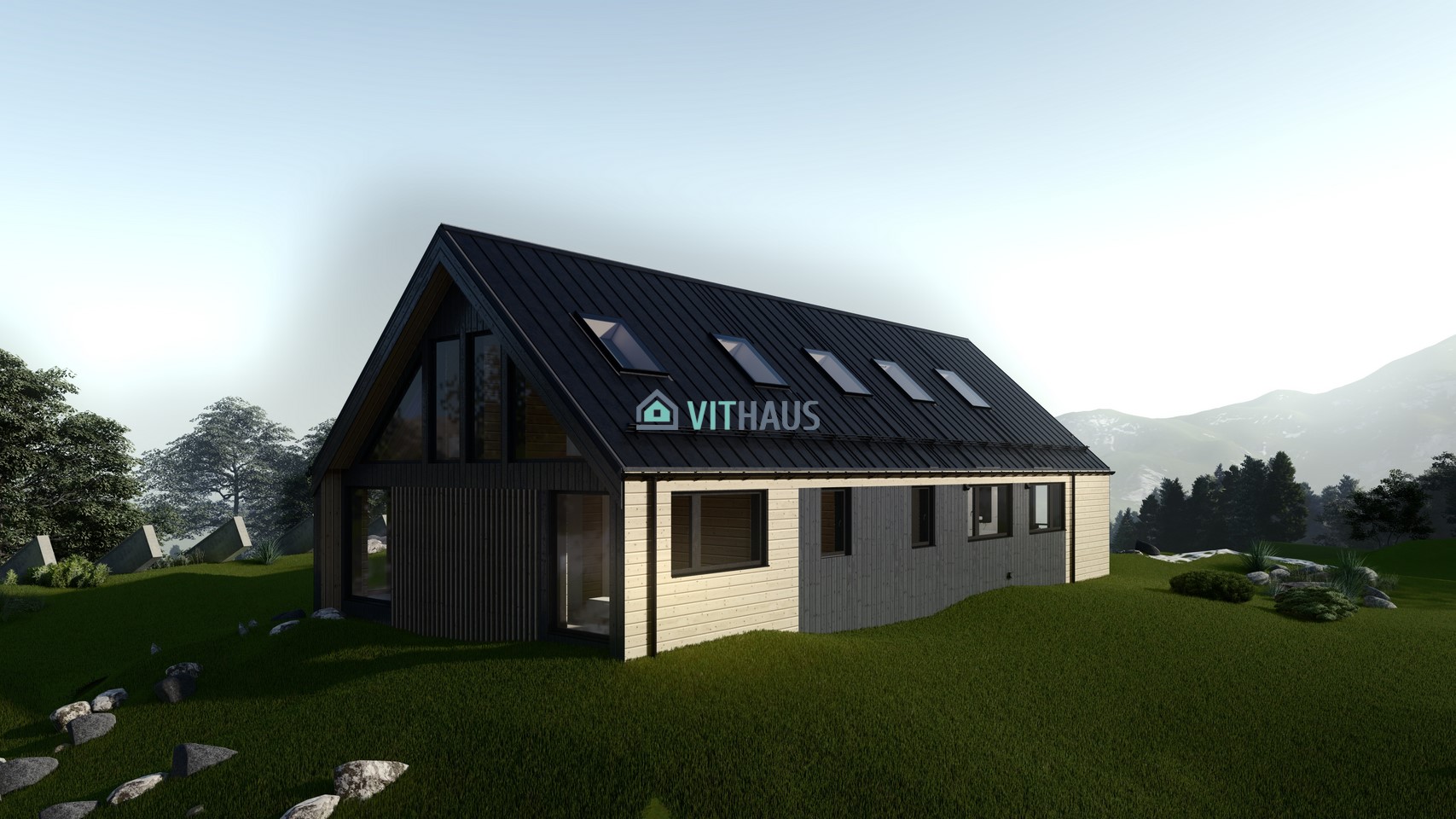

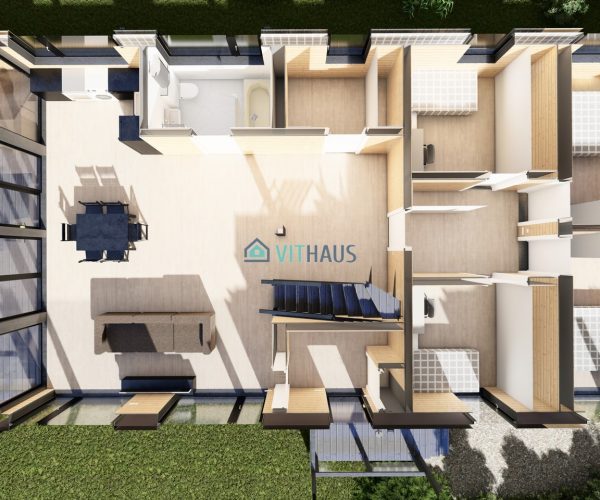

This magnificent house with attic floor is designed for comfortable living and harmony with nature. The first floor is divided into two areas. On one side there is a spacious common space of kitchen, living room and dining room, which is ideal for family evenings and meetings with friends. Huge floor-to-ceiling windows flood the interior with light and give the room a cozy atmosphere.
On the opposite side there are 4 small rooms. If necessary, you can place a room, a sports room, a guest room or a senior relative.
There is also a modern bathroom, storage room and a comfortable entrance hall with separate entrance, which makes this house even more practical.

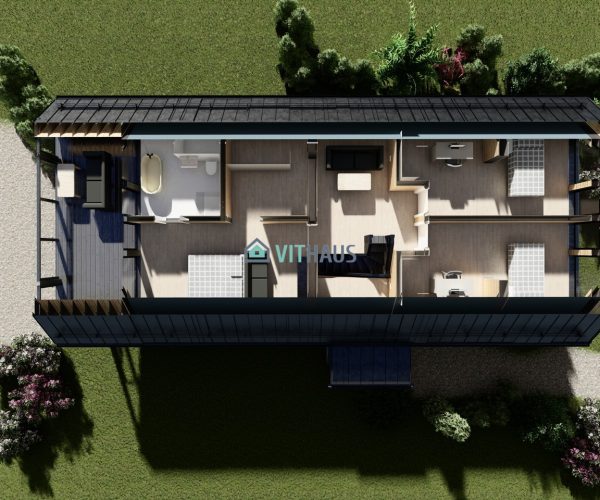

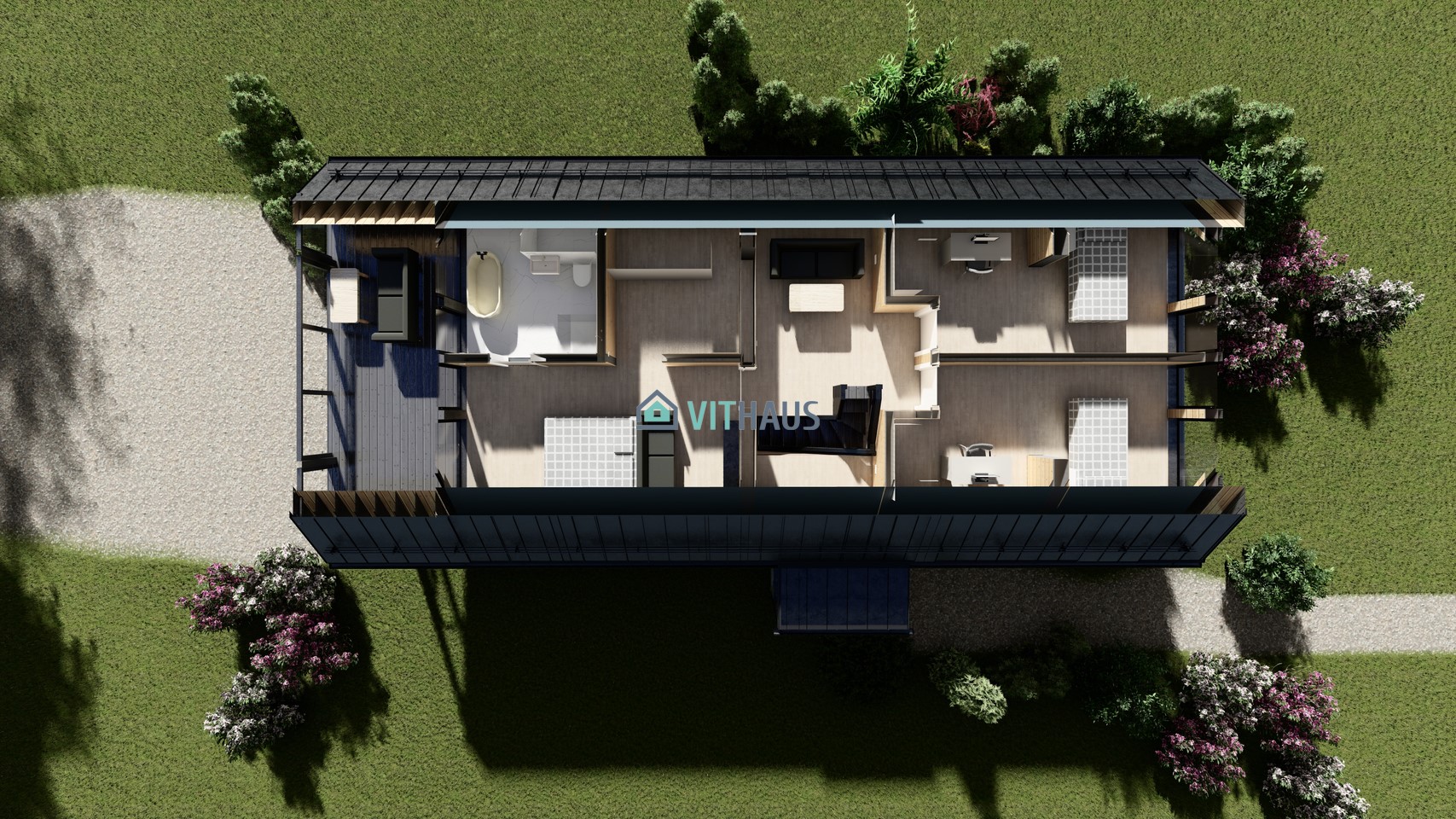

On the second floor there is a private recreation area where every member of the family can enjoy their time. Spacious master bedroom with its own bathroom and access to a cosy balcony makes for the perfect place for a morning coffee or an evening break.
On the other side of the second floor there are two small bedrooms, which will be perfect for children or guests. Spacious area between rooms – a place where you can spend time together, talking and relaxing.
BARNHAUS-230_2L is the perfect place for those looking for a combination of modern design, comfort and privacy. Enjoy the luxury of a comfortable life and start a new stage in the most beautiful house!
*Cost excluding VAT
ENERGY EFFICIENCY:
Roof: 452 mm = 8.82 m2 K/W, U = 0.113
Walls: 346 mm = 6.68 m2 K/W, U = 0.149
Floor: 401 mm = 7.43 m2 K/W, U = 0.134
Windows: U = 0.80
Energy Efficiency: KfW 40 Standard
Base rating: House meets KfW 40 requirements — ultra-low energy consumption, minimal heating costs.
The transition to the KfW 40 Plus standard is achieved by installing integrated systems (optional):
Passive House standard available as an upgrade.
1. ROOF PANEL 452 mm (WARM CONTOUR), PASSIVE HOUSE STANDARD:
1.2 Crate ventilated, 23 mm
1.3 Counter-lattice ventilated, 50 mm
1.4 Diffusion membrane, 1 mm
1.5 Softwood fiberboard, 50 mm
1.6 Wood fiber insulation, 300 mm
1.7 Frame made of LVL timber, 300 mm
1.8 Vapor barrier, 1 mm
1.9 Oriented strand board, 18 mm
1.10 Frame made of timber, 50 mm
1.11 Wood fiber insulation, 50 mm
1.12 Gypsum particle board, 12 mm
1.13 Interior cladding – natural wood, log profile, 20 mm
2. EXTERIOR WALL 346 mm (WARM CONTOUR), PASSIVE HOUSE STANDARD:
2.2 Counter-lattice ventilated, 50 mm
2.3 Diffusion membrane, 1 mm
2.4 Softwood fiberboard, 50 mm
2.5 Frame made of kiln-dried planed timber, 200 mm
2.6 Wood fiber insulation, 200 mm
2.7 Vapor barrier, 1 mm
2.8 Oriented strand board, 12 mm
2.9 Frame made of timber, 50 mm
2.10 Wood fiber insulation, 50 mm
2.11 Gypsum particle board, 12 mm
2.12 The finish is natural wood – imitation of timber, 20 мм
3. INTERIOR WALL:
3.2 Frame made of kiln-dried planed timber
3.3 Wood fiber insulation
3.4 Gypsum particle board, 12 mm
4. OPTIONAL – FLOOR PANEL 401 mm:
4.2 Soft fiberboard, 50 mm. Option: Underfloor heating
4.3 Moisture-resistant plywood, 21 mm
4.4 Vapor barrier, 1 mm
4.5 Frame made of LVL timber, 300 mm
4.6 Thermal insulation made of wood fiber, 300 mm
4.7 Diffusion membrane, 1 mm
4.8 Cement-bonded particle board, 12 mm
4.9 Special treated beam between the house and the foundation, 50 mm
* The floor panel is used in combination with a pile foundation.
** A reinforced concrete foundation does not require a floor panel.
WINDOWS AND ENTRANCE DOORS:
Wooden, triple-glazed insulation, 50 mm.
EXTERNAL FINISHING:
VERANDA & PORCH:
OPTIONAL – THE FOUNDATION:
ADDITIONAL EXPENSES:
⚡ ELECTRICS:
💧 WATER SUPPLY & SEWEGE:
🚿 PLUMBING & EQUIPMENT:
🔥 HEATING & UNDERFLOOR HEATING:
🌬️ VENTILATION:
🪵 INTERIOR FINISHING – FLOORS:
🎨 INTERIOR FINISHING – WALLS & CEILING:
🚪 DOORS & HARDWARE:
KITCHEN
FURNITURE
INDIVIDUAL PROJECT
CUSTOM INTERIOR FINISHES
SMART ENGINEERING SYSTEMS
KFW 40 PLUS REQUIREMENTS:
💡 LED LIGHTING:
🔋PHOTOVOLTAIC SYSTEM:
⚡ ENERGY STORAGE:
🌬️ HEAT RECOVERY:
🏠 SMART HOME:
🔌 EV CHARGING:
* Final price depends on floor plan and technical specifications provided by the Client.
