Cozy barn-style home with a terrace and attic.

This is a project that will be the best place to live. The first floor of the house is an open area, which extends into the terrace. It is a place where the whole family will gather to communicate and eat. Kitchen and bathroom are on one line. On the opposite side is the main entrance to the house, the hallway and the staircase that leads to the attic floor. On the second level of the house 2 bedrooms and a large balcony. Barnhaus-53_2L is small house, but it has many advantages. Such a house has everything necessary for life and it is can to place on a small plot of land.

BARNHAUS-90_2L

BUILDING AREA:93.6 m²
USEFUL AREA:92.7 m²
DIMENSIONS (HxWxL):7×9.2×10.1 m
CEILING HEIGHT:2.46-5.77 m
ROOMS:
7
VERANDA USEFUL AREA:51 m²
PERIOD OF DELIVERY:6 months
Download the catalog of houses

What is included in the basic equipment of a standard house?

Roof: 452 mm = 8,08 м² K/W, U = 0,124
Walls: 309 mm = 5,25 м² K/W, U = 0,190
Floor: 294 mm = 5,08 м² K/W, U = 0,197
Windows: 106 mm U = 1,00

  1. Roofing covering: metal profiled sheets (panels for roofs), color – graphite gray RAL 7024, matte – 20mm.
  2. Roof wooden crate: antiseptic planed board, pine – 20×145 mm.
  3. Counter-bars: antiseptic planed bar, pine – 25×45 mm.
  4. Condensation protection: diffusion membrane for roofing 150 g/m2 – 1 mm.
  5. Counter-bars: antiseptic planed bar, pine – 45×45 mm.
  6. External insulation of the frame: fiberboard Isoplaat – 25 mm.
  7. Reinforced wooden frame: antiseptic planed bar, pine – 45×300 mm.
  8. Thermal insulation: stone wool 30-35 kg/m3 – 300 mm.
  9. Internal insulation of a frame: vapour barrier film – 1 mm.
  10. Internal insulation of the frame: Gypsum particle board – 10 mm.
  11. Counter-bars: antiseptic planed bar 45×95 mm, pine.
  12. Insulation: stone wool 30-35 kg/m3 – 100 mm.
  13. Dust barrier: craft paper 80 g/m2 – 1mm.
  14. Internal surfaces (ceilings): natural wooden – pine cladding, coating – SIKKENS, color – white, – 20×145 mm.

  1. Roofing covering: metal profiled sheets (panels for roofs), color – graphite gray RAL 7024, matte – 20mm.
  2. Roof wooden crate: antiseptic planed board, pine – 20×145 mm.
  3. Counter-bars: antiseptic planed bar, pine – 25×45 mm.
  4. Condensation protection: diffusion membrane for roofing 150 g/m2 – 1 mm.
  5. Counter-bars: antiseptic planed bar, pine – 45×45 mm.
  6. External insulation of the frame: fiberboard Isoplaat – 25 mm.
  7. Reinforced wooden frame: antiseptic planed bar, pine – 45×300 mm.
  8. Thermal insulation: stone wool 30-35 kg/m3 – 300 mm.
  9. Internal insulation of a frame: vapour barrier film – 1 mm.
  10. Internal insulation of the frame: Gypsum particle board – 10 mm.
  11. Counter-bars: antiseptic planed bar 45×95 mm, pine.
  12. Insulation: stone wool 30-35 kg/m3 – 100 mm.
  13. Dust barrier: craft paper 80 g/m2 – 1mm.
  14. Internal surfaces (ceilings): natural wooden – pine cladding, coating – SIKKENS, color – white, – 20×145 mm.

  1. Finishing:
    – internal surfaces of the walls located along a slope of a roof are finished with wooden pine cladding, coating – SIKKENS, color – white, – 20×145 mm;
    – internal surfaces of back walls – planken, pine, SIKKENS coating, color – gray graphite, – 20×145 mm. Internal insulation of the frame: Gypsum particle board – 10 mm.
  2. Reinforced frame: antiseptic planed bar, pine – 45×95/145-195 mm.
  3. Thermal insulation: rock wool 45-50 kg/m3 – 100/150/200 mm.
  4. Internal insulation of the frame: Gypsum fiberboard – 10 mm.
  5. Finishing:
    – internal surfaces of the side walls located along a slope of a roof are finished with wooden pine cladding, coating – SIKKENS, color – white, – 20×145 mm;
    – internal surfaces of back walls – planken, pine, SIKKENS coating, color – gray graphite, – 20×145 mm;
    In the bathroom:
    – Kerama Marazzi mosaic, Temari collection 29.8×29.8 mm, color – white (20003), on a 10 mm cement particleboard with waterproofing;
    – part of the walls in the bathroom are finished with pine cladding, coating – SIKKENS, color – white, – 20×145 mm.

  1. In residential areas on the floor :
    – laminate EGGER (ECO) (33rd class of abrasion, HOME CLASSIC collection, oak, color – to choose) – 8 mm ;
    Underlayer for laminate – 4 mm.
    You can optionally choose:
    – Karelia Midnight parquet board with natural oak coating – 12 mm;
    – underlayer for parquet board – 4 mm.
    In the bathroom:
    – Kerama Marazzi mosaic, Temari collection 29.8×29.8 mm, color – matt black (20071), on a 10 mm cement  particleboard with waterproofing;
    – matte gray graphite (20064); waterproof layer;
    – base – cement particleboard – 10 mm.
    – base – moisture resistant plywood – 21 mm.
  2. Insulation of the frame: vapor barrier – 1 mm.
  3. Reinforced frame: antiseptic planed bar 45×250 mm, pine – 250 mm.
  4. Thermal insulation: Ecowool 30-35 kg/m3 – 250 mm.
  5. External insulation of the frame: cement particleboard – 10 mm.
  6. Rough finish: planed technically dried board, larch, with bioprotective antiseptic coating – 45×145 mm. During installation, galvanized reinforced fasteners are used. Coating – SIKKENS, color – black.
  7. Along the contour of the ventilated facade, metal protection from mice.

PLAN:

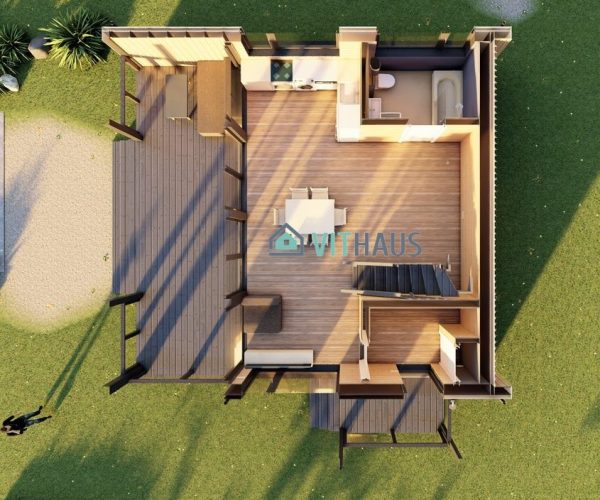

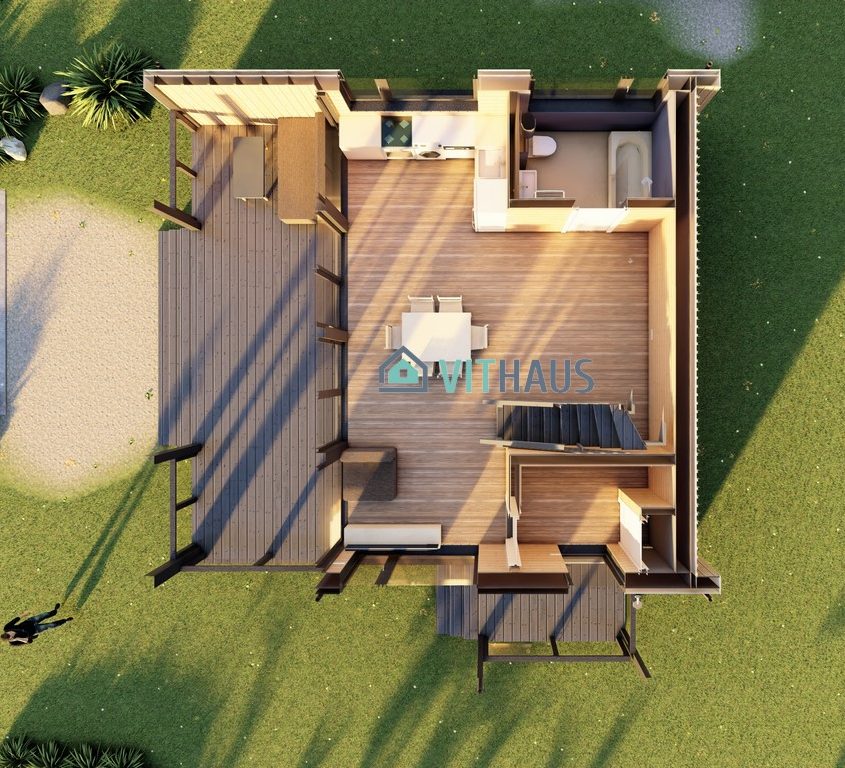

BARNHAUS-53_2L-plan

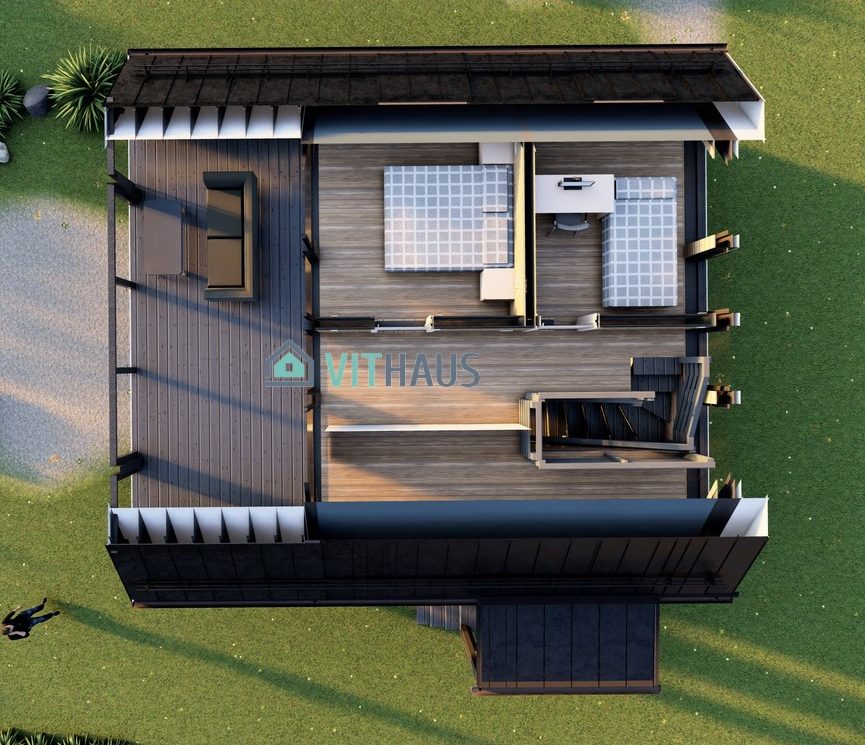

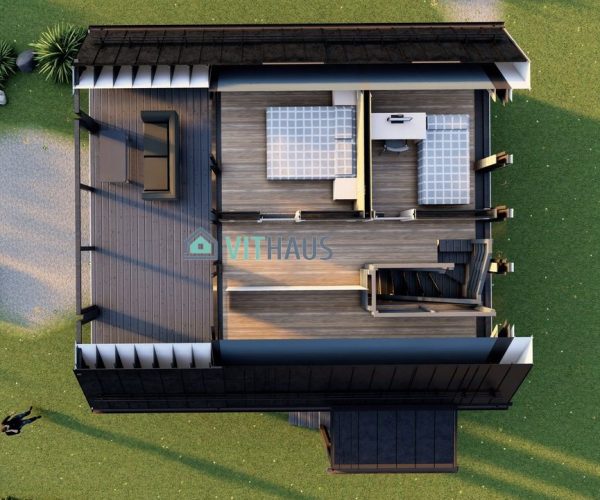

BARNHAUS-53_2L-plan-2

FACADE:

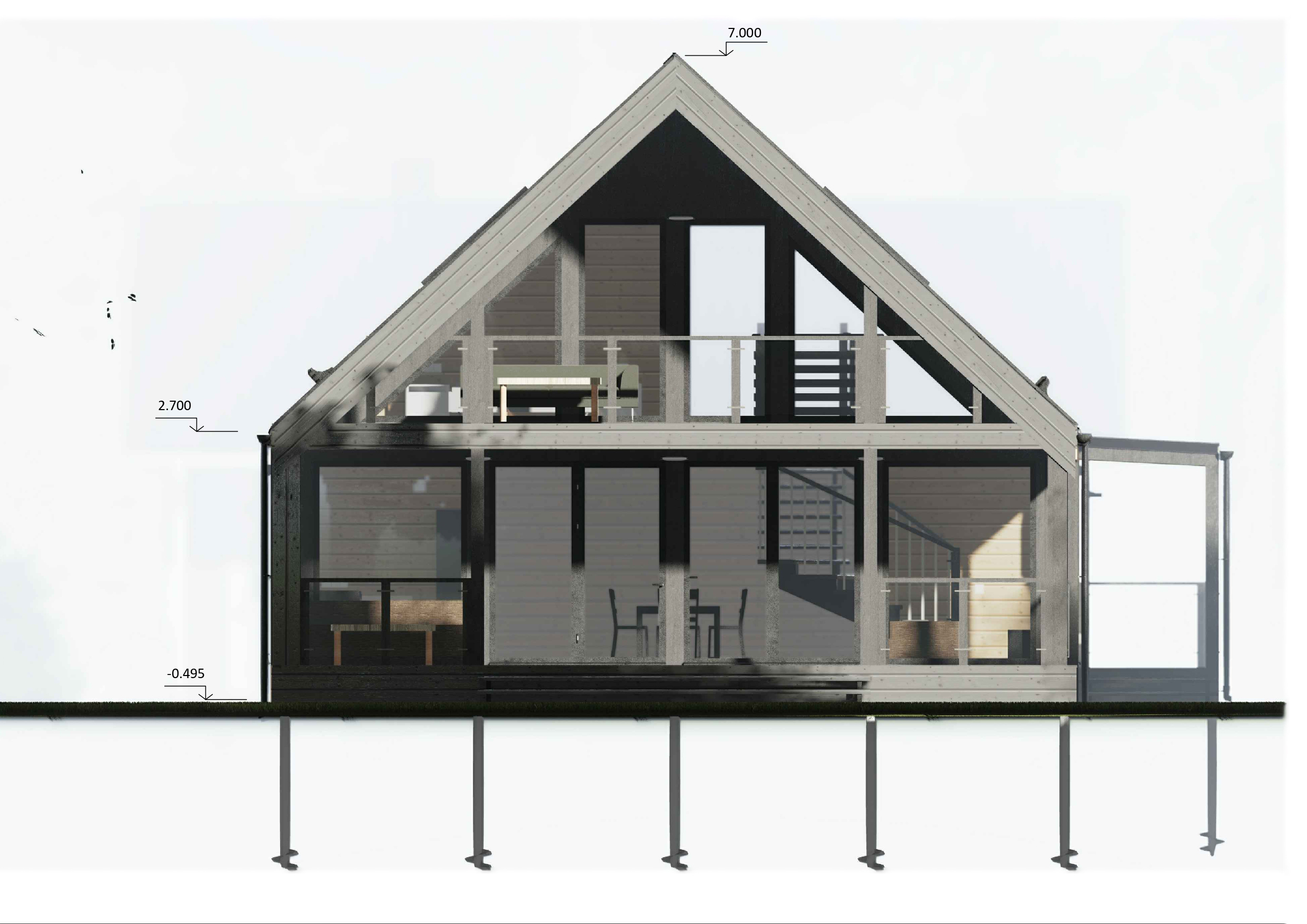

Фасад 2 BARNHAUS-90_2L

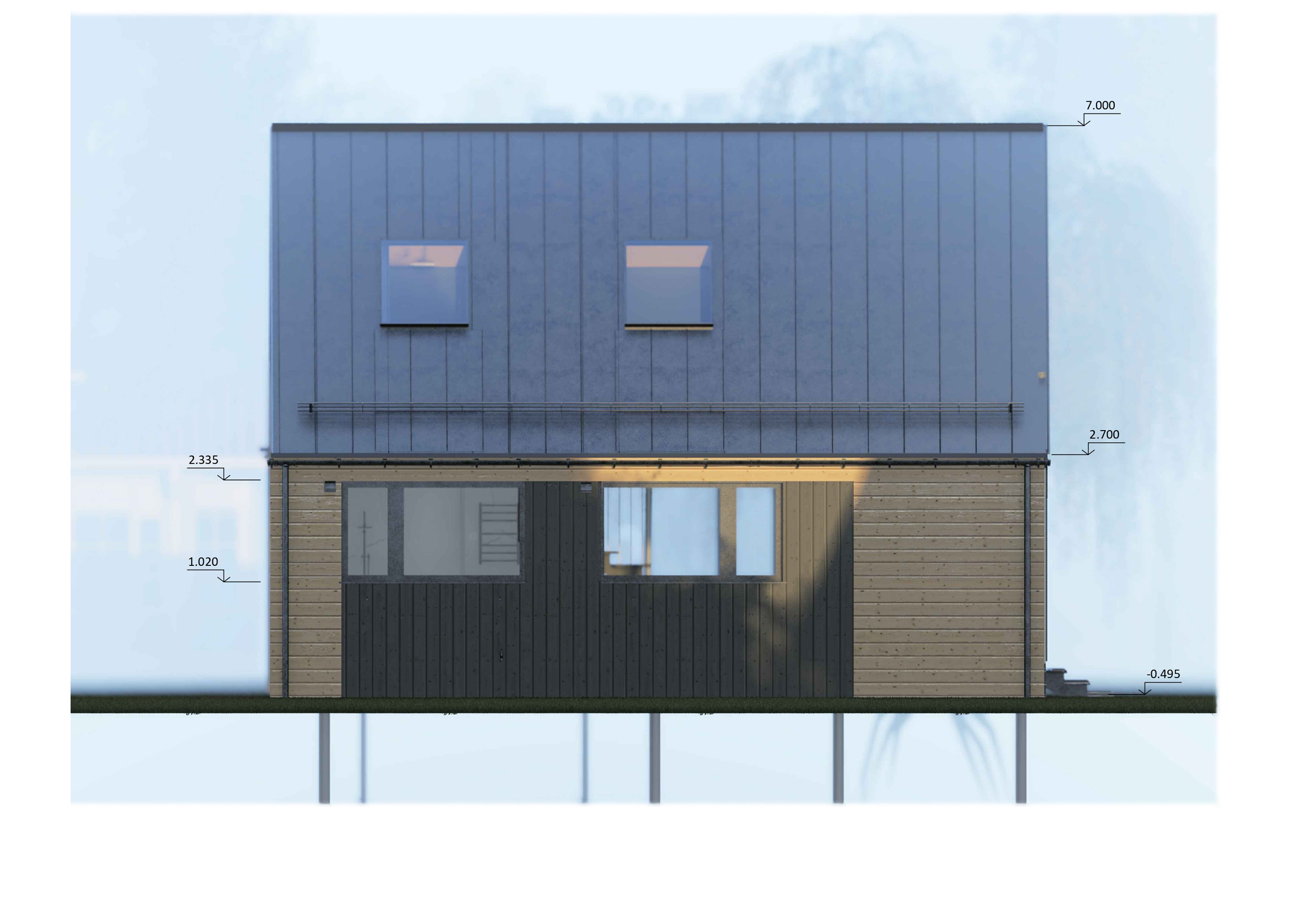

Фасад 1 BARNHAUS- 90_2L

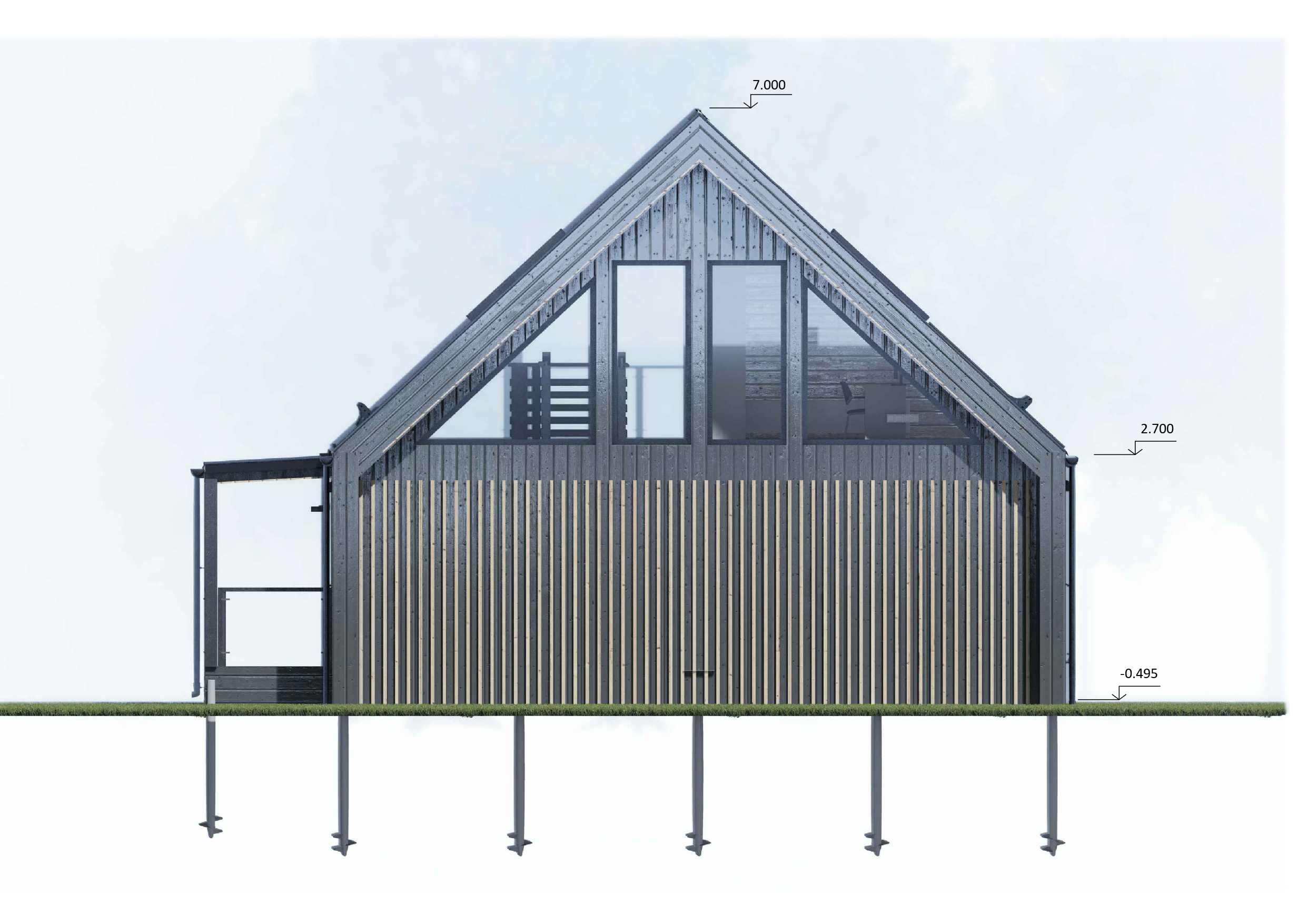

Фасад 3 BARNHAUS- 90_2L

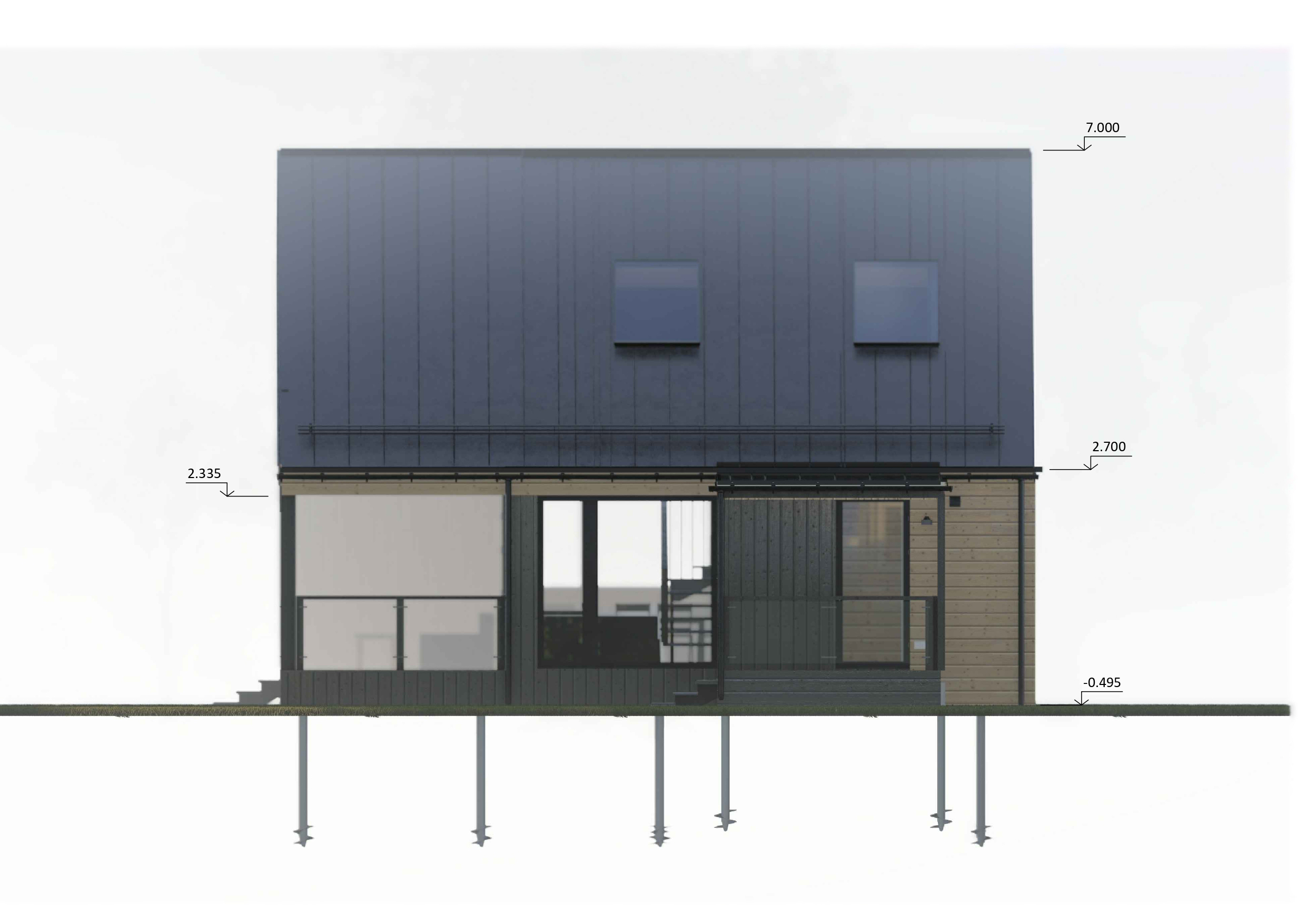

Фасад 4 BARNHAUS-90_2L
